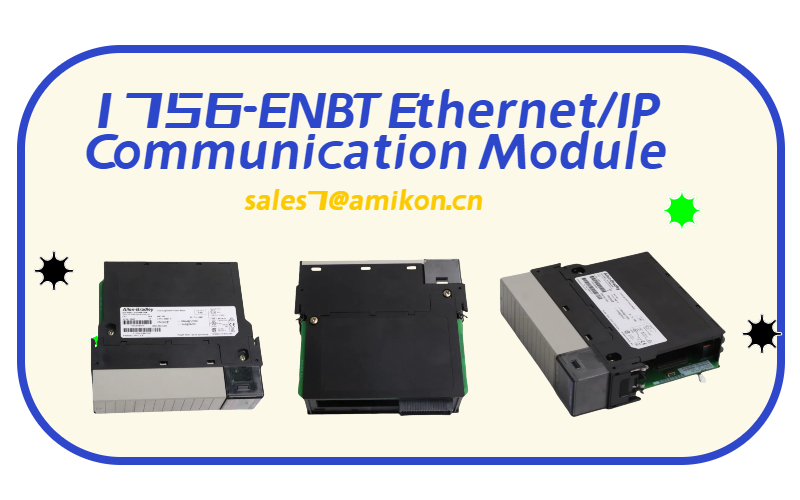

1756-ENBT Ethernet/IP Communication Module

The 1756-ENBT Ethernet/IP Bridge Module is an advanced device designed to simplify and accelerate data transfer over Ethernet networks. With the ability to support large volumes of data, high-speed connections, and efficient communication management, this module is ideal for modern industrial systems. In this article, we will explore the key features of the 1756-ENBT module and how it can improve your network performance.

High-Speed Ethernet Communication for Modern Systems
At the heart of the 1756-ENBT Ethernet/IP Bridge Module is its ability to handle large data transfers across Ethernet connections. With support for up to 64 TCP and 128 CIP connections, it provides robust data throughput for systems requiring high-speed, reliable communication. The module operates at 10/100 Mbps, ensuring fast and seamless data transfer across connected devices.

Fast Communication Speeds: The 1756-ENBT ensures high-speed communication, making it ideal for real-time applications.
Reliable Data Transfer: With support for a variety of connections, it can manage large data volumes without compromising performance.

Streamlined Network Architecture and Reduced Costs
The 1756-ENBT module simplifies network architecture by integrating various communication protocols into a single Ethernet network. This consolidation reduces the need for multiple networks, leading to significant savings in maintenance and operational costs.

Single Network Integration: By consolidating communication within one network, the need for multiple systems is eliminated.
Cost Reduction: Fewer components and less complexity result in lower setup and maintenance costs for your network infrastructure.

Web-Enabled Diagnostics for Enhanced Monitoring
One of the standout features of the 1756-ENBT is its web-enabled diagnostics, which allow users to monitor and manage the system through a standard web browser. This feature provides access to real-time diagnostic data, such as IP traffic and connection management, ensuring that any potential issues can be identified and addressed quickly.

Real-Time Diagnostics: Users can monitor key parameters, such as IP traffic and network performance, to keep the system running smoothly.
Detailed Information: Access to module revision, uptime, and other essential diagnostics helps with system maintenance and troubleshooting.

Remote I/O Control for Increased Flexibility
The 1756-ENBT module also functions as a Remote I/O Adapter, enabling users to control and configure remote systems from a centralized location. This remote capability adds a layer of flexibility, allowing for easier data collection, configuration, and control of devices, even when they are located far from the central system.

Remote Configuration and Control: The ability to manage remote I/O devices enhances operational flexibility and efficiency.
Centralized Data Access: Collect and configure data remotely without needing to physically access devices, streamlining management tasks.

Power and Performance Efficiency
The 1756-ENBT module is designed with power efficiency in mind. It draws 700 milliamps at 5.1 Volts DC and 3 milliamps at 24 Volts DC, with a power dissipation of just 3.7 Watts and a thermal dissipation of 12.6 BTU/hour. These specifications ensure the module operates efficiently without overloading your power supply.

Low Power Consumption: The module's energy-efficient design helps reduce operational costs while maintaining high performance.
Effective Thermal Management: The thermal dissipation ensures that the module remains cool and reliable, even under heavy workloads.

Backward Compatibility for Easy Integration
The 1756-ENBT Ethernet/IP Bridge Module is designed with backward compatibility, ensuring it can integrate seamlessly with existing systems without requiring extensive modifications. This feature is particularly valuable for companies looking to upgrade their network infrastructure without disrupting operations.

Seamless Integration: The module works well with legacy systems, making it easy to incorporate into an existing network.
No Need for Additional Hardware: Avoid costly upgrades or the need for new hardware components when integrating the 1756-ENBT module into your setup.

Conclusion
The 1756-ENBT Ethernet/IP Bridge Module offers a powerful solution for optimizing Ethernet communication in industrial networks. With high-speed data transfer, simplified network architecture, remote I/O control, and advanced diagnostic tools, it enables seamless integration and enhances system performance. Whether you're looking to improve network efficiency, reduce costs, or enable remote management, the 1756-ENBT module provides the capabilities needed to meet the demands of modern industrial environments.
