5X00106G01 Emerson Ovation Fast Hart Analog Input Module

November 07,2024

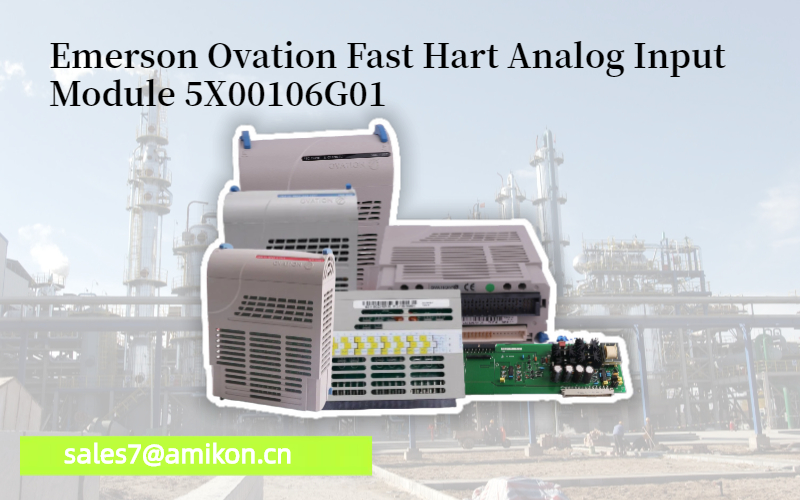

5X00106G01 Emerson Ovation Fast Hart Analog Input Module

Understanding the Emerson Ovation 5X00106G01 Module

The Emerson Ovation 5X00106G01 is a specialized Fast HART Analog Input Module, designed to bring flexibility and enhanced performance to the Ovation Distributed Control System (DCS). With its capacity to integrate HART-enabled devices, this module provides both analog data inputs and digital communication for modern industrial environments, streamlining data acquisition and communication from field devices.

About the 5X00106G01 Module
The 5X00106G01 module by Emerson is a high-performance analog input module featuring 8 channels, each capable of receiving analog inputs with added HART communication capabilities. This dual-functionality allows it to capture essential analog signals while also transmitting digital data. Key features include:

8-Channel Analog Input: Provides multi-channel support to accommodate various field devices.
HART Communication: Supports the HART protocol, offering real-time, two-way communication of both analog and digital signals.
High Reliability: Built to Emerson’s high standards for reliability and performance, suitable for critical control applications.

Compact and Lightweight Design: With dimensions of 4.8" x 2.0" x 6.0" (12.1 cm x 5.1 cm x 15.2 cm) and weighing only 0.3 kg, the module is compact and easy to handle, aiding in efficient installation within control cabinets.

Technical Specifications and Installation
The Emerson 5X00106G01 module is straightforward to install into the I/O racks of the Ovation control system, but certain key points should be noted for optimal performance:
Input Signal Compatibility: The module accepts standard analog signals, such as 4-20 mA and 0-10 V, with the added capability for digital HART communication.
Power Considerations: Before installation, always ensure the control system’s power is turned off to prevent potential damage to the module or system.

Physical Setup: Carefully insert the module into the appropriate rack slot, ensuring all connections are securely attached before restoring power.

Advantages of Using HART Communication with the 5X00106G01
The HART protocol is a widely used industrial automation communication standard that provides several benefits:
Enhanced Diagnostics: With HART, users can monitor device health and status in real time, identifying potential issues early.
Simplified Configuration and Monitoring: HART allows for easy configuration of field devices without needing direct physical access, streamlining processes and reducing setup times.

Dual Analog and Digital Capabilities: The protocol enables simultaneous transmission of both analog signals for process control and digital data for diagnostics.

Frequently Asked Questions
1. What signal types are supported by the Emerson 5X00106G01 module?
The 5X00106G01 module supports standard analog input signals such as 4-20 mA and 0-10 V, with the additional advantage of HART communication. This allows the module to capture both analog signals and digital data from HART-enabled field devices.

2. What exactly is HART communication?
HART, or Highway Addressable Remote Transducer, is an automation protocol that allows both analog and digital communication over a single channel. This facilitates device diagnostics, configuration, and monitoring directly over the standard 4-20 mA analog signal, providing valuable digital insights alongside traditional analog data.

3. How should I install the 5X00106G01 module?
Installation is straightforward: insert the module into the designated I/O rack slot within the Ovation DCS. Always ensure the system power is off before installation to prevent any potential damage. Once securely in place, you can restore power and configure the module as needed.

Conclusion

The Emerson Ovation 5X00106G01 Fast HART Analog Input Module is a valuable asset for control systems requiring advanced communication and real-time data access. With its support for both analog signals and HART protocol, it bridges the gap between traditional and modern control requirements. From its robust build and compact design to its HART communication capabilities, the 5X00106G01 module enhances flexibility, reliability, and diagnostic insights within the Ovation Distributed Control System. Whether for new installations or system upgrades, this module represents a solid choice for industrial applications demanding high performance and precise control.
