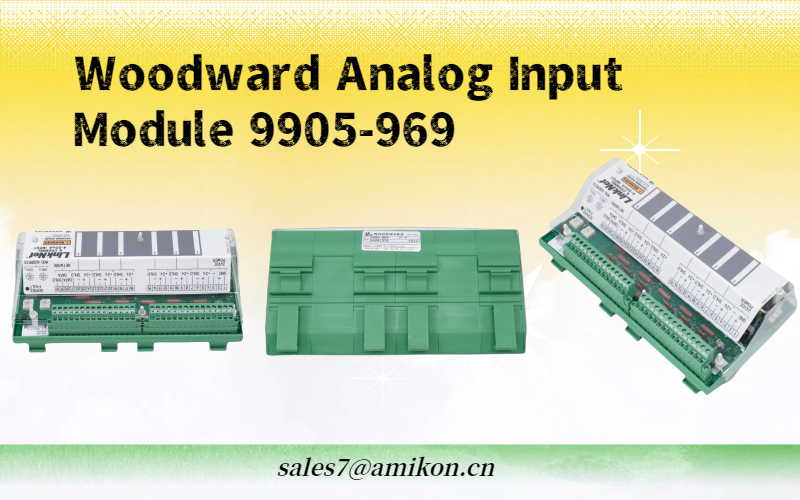

9905-969 - Linknet 6 Channel Analog Input Module

November 15,2024

9905-969 - Linknet 6 Channel Analog Input Module

Specification	Details
Part Number	9905-969
Manufacturer	Woodward
Dimensions	14W x 11H x 4D
Display Type	2 line x 24 characters
Accuracy	1 % at 25 °C
Power Supply Input	18 to 32 V (dc)
Network to I/O Channel	277 V (ac)
Power Supply Input to Network	277 V (ac)
Power Supply Input to I/O Channel	500 V
Humidity Standards	20 and 55 °C at 95% for 48hrs
Input Voltage	+24 Vdc at 1 A
Keypad/Display	30 Multi-function Keypad
Temperature Range	–40 to +55 °C
Weight	9.11 lbs
Availability	In Stock
Country of Origin	United States

Introduction to the Woodward 9905-969 Analog Input Module
The Woodward 9905-969 is a 6-channel analog input module that plays a crucial role in distributed control systems. Designed specifically for the NetCon control system, this module helps users manage low-cost and simple distributed I/O capabilities. It is ideal for applications involving analog signals like 4-20mA, making it a versatile option for monitoring and control tasks.

The Role of LINKnet and Its Network Architecture
At the core of the Woodward 9905-969 module is the LINKnet distributed I/O network. This network is designed to facilitate easy and reliable communication between the NetCon controller and I/O modules. The network structure supports up to four autonomous trunks, with each trunk being able to connect up to 60 I/O modules. Each of these modules can communicate with the NetCon controller through a single twisted-pair wire, providing an efficient and cost-effective solution for expanding control systems.

One of the standout features of this architecture is its ability to link up to 240 I/O modules, each equipped with multiple channels. This scalability ensures that the network can grow as needed, making it a highly flexible option for various industrial applications.

Configuring the Network: How to Set Up and Use the 9905-969 Module
Configuring the 9905-969 module is straightforward. It uses rotary switches on the LINKnet module to configure the network address, allowing for quick and easy integration into the system. These switches are crucial as they ensure the module communicates with the NetCon controller at the correct address, facilitating smooth and error-free operation.

The setup process involves ensuring that the network address defined for the module in the MOE coder matches the address set by the rotary switches. This compatibility ensures that all nodes within the network operate at the same speed and can communicate without any interruptions or delays.

Hardware Features of the 9905-969 Analog Input Module
The Woodward 9905-969 module features a robust hardware setup designed for reliability and efficiency. Each network is powered by a single NetCon controller module, which supports a variety of I/O modules, including thermocouple, RTD, discrete, and 4-20mA modules. The analog input module itself offers six channels, enabling it to handle multiple signals at once.

Additionally, other types of I/O modules are available in the same network, such as relay output modules with eight channels and discrete input modules with 16 channels. This wide range of modules enhances the flexibility of the system, making it suitable for a variety of industrial applications.

Mounting and Installation: Easy Setup for Industrial Environments
The 9905-969 module is designed with practicality in mind. It is housed in a plastic Phoenix field termination module package, making it suitable for DIN rail mounting. This feature allows for easy installation within control cabinets or other areas close to the turbine, as long as the installation meets the required temperature and vibration standards.

Its compact and durable design ensures that the module can function efficiently even in challenging industrial environments, making it a reliable component for long-term use in distributed control systems.

Conclusion
The Woodward 9905-969 analog input module is an essential component for industrial control systems that require distributed I/O capabilities. With its easy integration into the LINKnet network, efficient configuration, and flexible hardware options, it provides a reliable and scalable solution for managing analog input signals in various industrial settings. Whether you are expanding an existing control system or setting up a new one, the 9905-969 module offers a powerful and cost-effective solution that meets the demands of modern automation systems.
