GE Series 90-30 Ethernet Interface Module: IC693NIU004 Technical Guide

April 07,2025

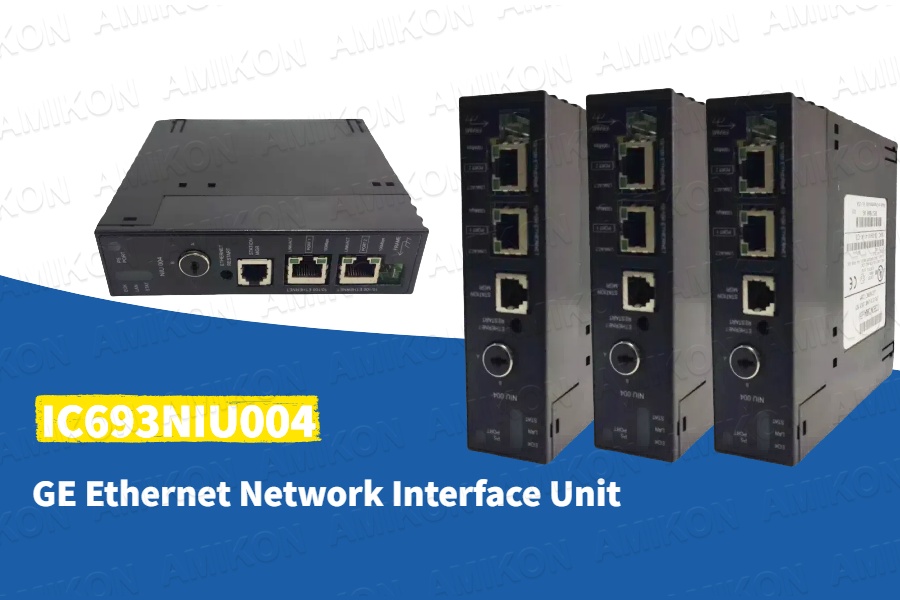

Introduction to the IC693NIU004 Module
The IC693NIU004 serves as a critical communication component in industrial automation systems, specifically designed for GE's Series 90-30 Programmable Logic Controllers. This Ethernet Network Interface Unit (NIU) bridges the gap between PLC hardware and modern networking requirements, enabling seamless integration of legacy control systems with contemporary Ethernet-based architectures.

IC693NIU004 Key Technical Specifications
This robust interface module features dual 10/100 Mbps Ethernet ports with auto-sensing and auto-negotiation capabilities, supporting both simplex and fault-tolerant network configurations. The unit's technical specifications include:
Memory capacity: 4096 internal coils, 256 temporary output bits, and 9999 register memory locations
I/O handling: Supports up to 2048 discrete inputs/outputs and 1268/512 analog input/output words
Network flexibility: Functions as a built-in Ethernet switch supporting linear, star, and ring topologies
Expansion capability: Interfaces with up to 8 baseplates (1 CPU + 7 expansion/remote units)

Network Communication Features
The IC693NIU004 implements Ethernet Global Data (EGD) protocol for efficient data exchange across distributed systems. Its advanced communication capabilities include:
Dual-port architecture with shared IP addressing
Support for Secure Real-time Transport Protocol (SRTP)
Built-in network diagnostics through status LEDs (EOK, LAN, STAT, PS PORT)
Hardware reset functionality via dedicated pushbutton
Compatibility with various industrial Ethernet topologies

Configuration and Programming Requirements

Proper configuration of the IC693NIU004 requires:
CIMPLICITY Machine Edition Logic Developer software (version 4.0 SP3 or later)
Special 4 firmware or newer
Proper network parameter setup including:
IP address assignment
Subnet configuration
EGD exchange definitions
Security protocol implementation
The module's design allows for re-initialization without complete power cycling, significantly reducing potential downtime during maintenance or troubleshooting procedures.

Industrial Applications and Best Practices
This Ethernet interface module finds application in numerous industrial scenarios:
Manufacturing automation systems requiring distributed control
Process industries with remote I/O requirements
Infrastructure monitoring applications
Energy management systems
For optimal performance, installers should:
Maintain operating temperatures within 0-60°C range
Ensure proper network cabling and termination
Implement regular firmware updates
Follow GE's recommended maintenance procedures

Conclusion: Reliable Industrial Networking Solution

The IC693NIU004 Ethernet Network Interface Unit represents a robust solution for modernizing Series 90-30 PLC systems. Its combination of high-speed networking, substantial I/O capacity, and flexible configuration options makes it an excellent choice for industrial automation upgrades. The module's support for secure protocols and fault-tolerant topologies ensures reliable operation in demanding industrial environments, while its diagnostic features simplify maintenance and troubleshooting processes. For facilities running GE Series 90-30 PLCs, this interface provides a cost-effective path to Ethernet-enabled industrial control systems.
