How Can the ABB GJR2391500R1210 81EU01H-E Improve Flexible Signal Acquisition?

August 22,2026

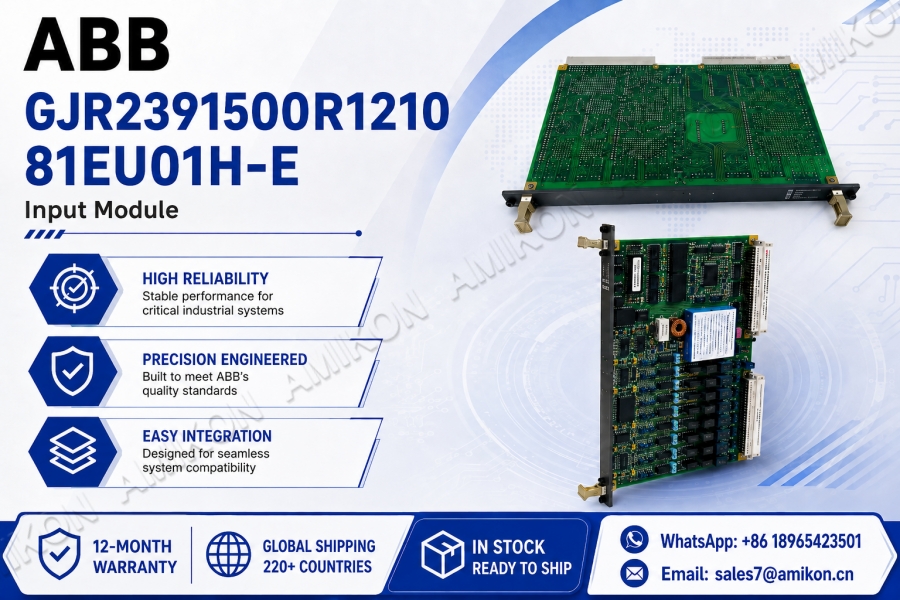

What Is the ABB GJR2391500R1210 81EU01H-E Input Module?
The ABB GJR2391500R1210, identified as the 81EU01 series, is a universal input module associated with the ABB Procontrol P14 control system. ABB documentation identifies the order number as GJR2391500R1210 and the module type as 81EU01-E/R1210. It provides 16 input function units for binary and analog transmitters, making it suitable for process signal acquisition in industrial control applications.

One of its key advantages is signal flexibility. The module can accommodate different field transmitter configurations, including binary transmitters and analog current transmitters. This allows one module to handle different types of process signals rather than relying on a separate input card for every signal category.

For maintenance teams working with legacy ABB control systems, the exact identification of the module is particularly important. 81EU01H-E, 81EU01-E/R1210, and GJR2391500R1210 are commonly associated with this product family, although the suffix or revision should always be checked against the installed hardware and system documentation.

Why Does a Universal Input Module Matter in Industrial Automation?
Industrial plants rarely operate with only one type of field signal. Sensors, switches, transmitters, and other field devices can generate different electrical signals depending on the process and instrumentation architecture.

The ABB 81EU01 provides a flexible interface between field devices and the Procontrol control system. Each of its 16 function units can be configured for different input applications, while signal conditioning functions can be applied according to the process requirements. ABB documentation also specifies separate processing times for binary, analog, and temperature measurements, demonstrating that the module handles different signal categories within the same hardware platform.

For an operating plant, this flexibility can simplify spare-parts management. Instead of maintaining many different input module types, a universal input module can cover multiple signal-acquisition requirements when properly configured.

Where Can the ABB 81EU01H-E Be Used?
The GJR2391500R1210 is primarily relevant to ABB Procontrol P14-based industrial control environments. It can receive signals from process instrumentation and transfer the processed information through the station bus to the wider control system. ABB documentation describes the module as supporting analog and binary process interfaces and shows its integration with the Procontrol station architecture.

Typical application environments may include:
Power generation and utility facilities
Process monitoring systems
Industrial production plants
Equipment monitoring applications
Legacy ABB Procontrol installations
Plants requiring replacement I/O hardware for an existing control system

When Should You Consider Replacing the GJR2391500R1210?
Replacement should be considered when the existing input module begins showing unstable signal acquisition, communication errors, diagnostic alarms, or abnormal process readings.

Before replacing the hardware, maintenance personnel should first verify field wiring, transmitter power, configuration parameters, station-bus connections, and system diagnostics. If the problem follows the module after appropriate troubleshooting, replacing the input module may be a practical way to restore reliable signal acquisition.

For legacy systems, proactive spare-parts planning is also important. Keeping a compatible ABB GJR2391500R1210 81EU01H-E Input Module available can reduce the time required to respond to an unexpected module failure.

The module documentation also indicates that internal monitoring and input-signal monitoring can generate disturbance indications, providing useful information during fault diagnosis.

Which Features Should Buyers Check Before Ordering?
Manufacturer：ABB
Product Type：Universal Input Module
Module Series：81EU01
Order Number：GJR2391500R1210
Application ：ABB Procontrol P14
Input Capacity：16 function units

The ABB GJR2391500R1210 81EU01H-E is a versatile universal input module for ABB Procontrol P14 environments. Its 16-function-unit architecture and support for binary and analog transmitters make it useful for diverse process signal acquisition tasks. For plants maintaining legacy ABB control equipment, identifying the correct part number and keeping suitable spare modules available can help reduce troubleshooting time and minimize unexpected downtime.
