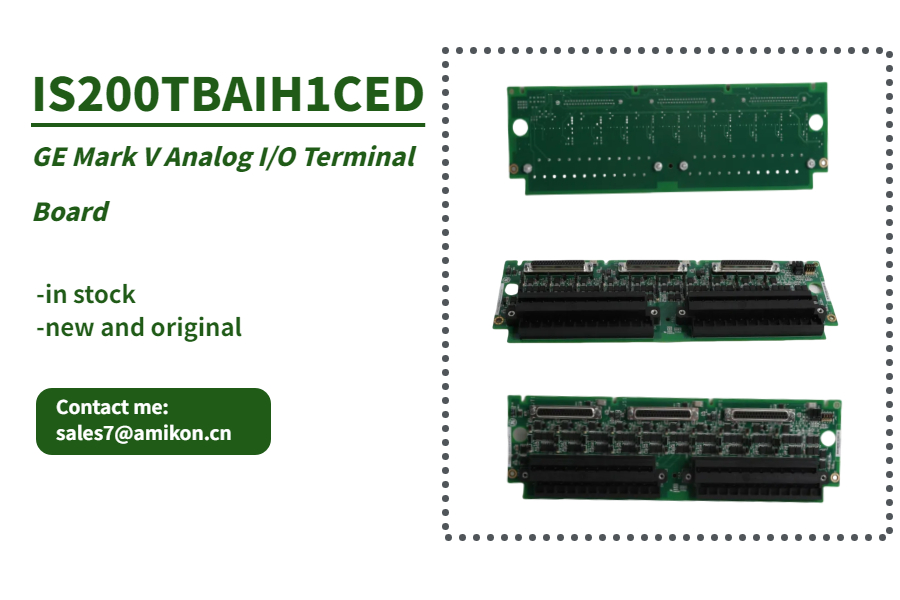

IS200TBAIH1CED - Analog I/O Terminal Board

Understanding the IS200TBAIH1CED Analog I/O Terminal Board
The IS200TBAIH1CED is an Analog I/O Terminal Board developed by General Electric (GE) and is a vital component of the Mark VIe control system. Designed to handle analog signals efficiently, it supports versatile functionality and robust performance, making it an essential part of modern industrial control systems.

Key Features of IS200TBAIH1CED
Analog Output Capabilities
The IS200TBAIH1CED terminal board supports two analog output channels, which can be configured to output either 0-20 mA or 0-200 mA current signals. This flexibility allows for precise control of output signals, ensuring the terminal board meets diverse system requirements. These capabilities enable efficient integration with a wide range of sensors and measurement devices.

Noise Suppression Circuitry
To ensure signal integrity and reliability, the terminal board is equipped with noise suppression circuitry for both input and output channels. This feature protects against surges and high-frequency noise, ensuring signal quality and stability even in challenging operational environments.

Connectivity Options
The IS200TBAIH1CED includes three DC-37 pin connectors, which facilitate connection to Voltage Analog Input/Output Cards (VAICs). For simplex applications, a single connector (JR1) is used, while all three connectors are employed for Triple Modular Redundant (TMR) applications. This setup ensures seamless integration and communication with VAICs, enhancing system reliability.

Operation in TMR Applications
The IS200TBAIH1CED terminal board demonstrates superior performance in TMR configurations:
Signal Distribution: Input signals are distributed across three connectors dedicated to R, S, and T controls.
Current Measurement: The board combines current output from three drivers and calculates the total current using a measuring shunt.
Precise Regulation: This total current signal is sent to the VAICs for precise regulation based on the commanded setpoint, ensuring accurate synchronization in redundant system architectures.

Advanced Diagnostic Features
Voltage Drop Monitoring
To monitor output current levels, the IS200TBAIH1CED terminal board uses a series resistor to measure voltage drop across the circuit. Any abnormal current levels trigger diagnostic alarms or faults through the VAICs, ensuring real-time feedback and fault detection.

Connector ID Device
Each cable connector features an ID device that includes critical information such as the board’s serial number, type, revision number, and connector location (JR, JS, JT). If VAICs detect any discrepancies or mismatches, hardware incompatibility faults are triggered, ensuring proper identification and compatibility.

Fault Detection Mechanisms
The terminal board’s advanced fault detection mechanisms provide real-time diagnostics. Abnormalities in output current or hardware incompatibility issues result in diagnostic alarms or faults, enabling operators to identify and resolve problems efficiently.

Integration with Control Systems
The diagnostic data from the IS200TBAIH1CED terminal board is seamlessly integrated into the broader control system. This integration allows operators to monitor the terminal board’s status and address issues proactively, enhancing the overall reliability and efficiency of the system.

Conclusion
The IS200TBAIH1CED Analog I/O Terminal Board by GE is a highly versatile and reliable component of the Mark VIe control system. With its advanced features, such as flexible analog output capabilities, noise suppression circuitry, and robust diagnostics, this terminal board ensures seamless integration, optimal performance, and enhanced system reliability. By leveraging these capabilities, operators can achieve precise control, minimize downtime, and streamline maintenance efforts, making it a valuable asset in industrial control environments.
