MVI69-PDPMV1: The Powerful PROFIBUS DPV1 Master Module for Rockwell Automation Systems

April 14,2025

Introduction to the MVI69-PDPMV1 Module

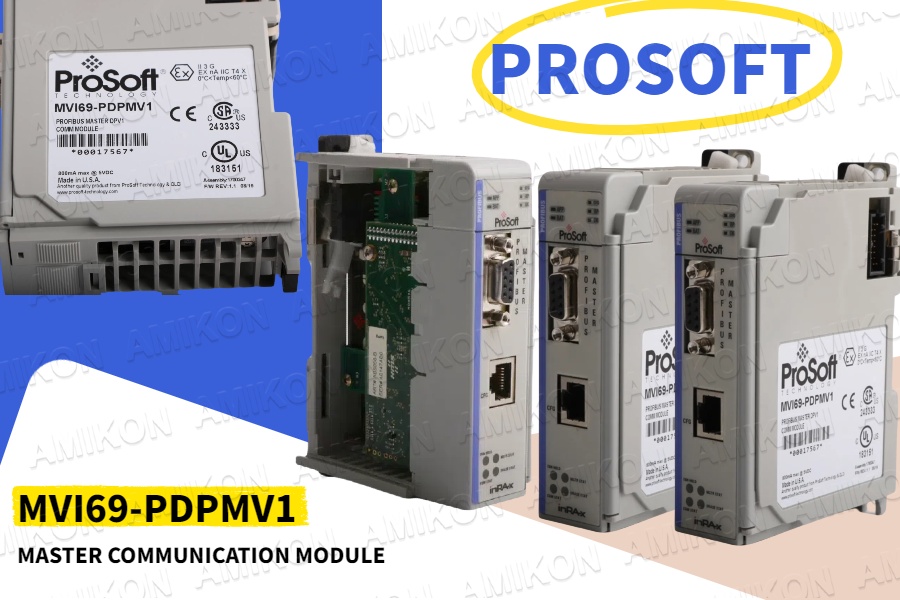

The MVI69-PDPMV1 is a high-performance PROFIBUS DPV1 Master communication module designed for Rockwell Automation’s CompactLogix and MicroLogix processors. Developed by ProSoft Technology under license from Rockwell Automation, this module enables seamless integration between PROFIBUS industrial networks and Allen-Bradley PLCs.
With its proprietary backplane technology, the MVI69-PDPMV1 ensures real-time data exchange, making it ideal for industrial automation applications requiring high-speed communication between PLCs and field devices.

Key Features of the MVI69-PDPMV1
The MVI69-PDPMV1 stands out due to its advanced communication capabilities, including:
Full PROFIBUS DPV1 Master Support – Complies with IEC 61158 standards for industrial networking.
Acyclic Data Transfer – Supports Class 1 and Class 2 DPV1 services for parameter configuration and diagnostics.
Seamless Integration – Functions as an I/O module, bridging the PROFIBUS network with CompactLogix/MicroLogix processors.
Asynchronous Data Transfer – Ensures smooth communication without delays between the PLC and PROFIBUS slaves.
Robust Backplane Communication – Uses Rockwell Automation’s licensed technology for high-speed data exchange.
These features make it a reliable choice for industries such as manufacturing, oil & gas, and automotive automation.

Applications in Industrial Automation
The MVI69-PDPMV1 is widely used in process control and factory automation, including:
Motor Control Systems – Enables PLCs to communicate with PROFIBUS-driven motor drives.
Sensor & Actuator Networks – Facilitates data exchange between PLCs and distributed I/O devices.
Batch Processing & Packaging – Ensures synchronized operations in automated production lines.
Energy Management Systems – Helps monitor and control power distribution networks.
Its ability to handle both cyclic and acyclic data makes it versatile for complex automation tasks.

Installation and Configuration
Setting up the MVI69-PDPMV1 involves:
Hardware Installation – Mounting the module in a CompactLogix/MicroLogix chassis.
Network Configuration – Using ProSoft Configuration Builder (PCB) to set up PROFIBUS parameters.
PLC Programming – Configuring RSLogix 5000 or Studio 5000 for data mapping.
Testing & Validation – Ensuring proper PROFIBUS slave device communication.
For optimal performance, users should follow Rockwell Automation’s installation guidelines.

Troubleshooting and Maintenance
Common issues with the MVI69-PDPMV1 include:
PROFIBUS Network Errors – Check termination resistors and baud rates.
PLC Communication Failures – Verify backplane compatibility and firmware versions.
Data Transfer Delays – Optimize PROFIBUS scan times in configuration software.
Regular firmware updates and preventive maintenance help extend the module’s lifespan.

Conclusion
The MVI69-PDPMV1 PROFIBUS DPV1 Master module is a powerful communication interface for Rockwell Automation PLCs, enabling seamless integration with PROFIBUS networks. Its high-speed data transfer, compliance with IEC 61158, and flexible configuration make it a top choice for industrial automation.

For businesses using CompactLogix or MicroLogix systems, this module ensures reliable and efficient communication with PROFIBUS-enabled devices. If you need installation support or replacement modules, consult ProSoft Technology or certified automation suppliers.
