TSXETZ410 Schneider Ethernet module

January 23,2025

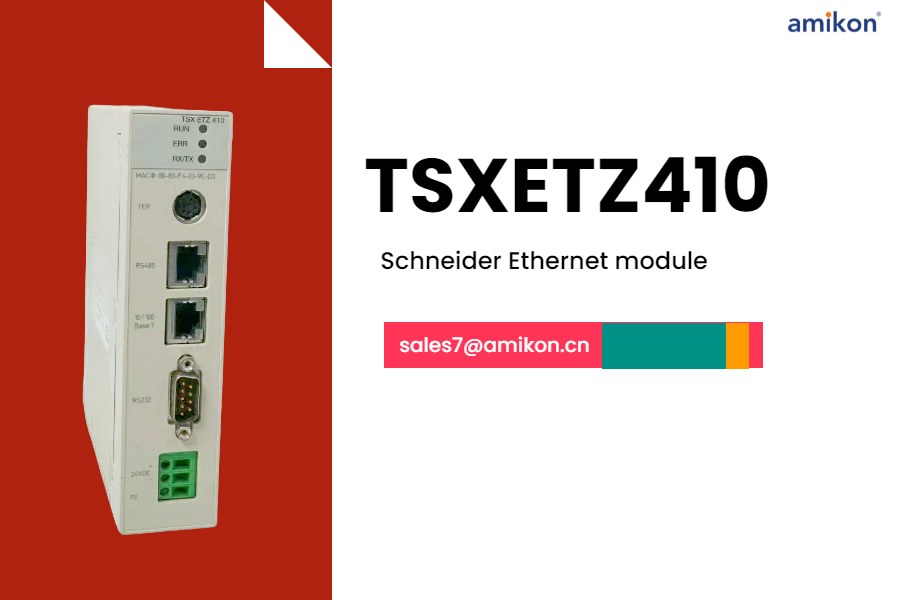

Introduction to the TSXETZ410 Schneider Ethernet Module
The TSXETZ410 Schneider Ethernet module is an essential component of the Modicon TSX Micro series of Programmable Logic Controllers (PLC). This Ethernet module is specifically designed for users who need reliable, efficient, and high-speed communication in industrial automation systems. Whether you are working on machine control, manufacturing, or infrastructure management, the TSXETZ410 Ethernet module provides a robust solution to meet your communication needs.

Key Features of the TSXETZ410 Ethernet Module
One of the standout features of this module is its support for 10/100 Mbps transmission speed, making it suitable for high-performance applications. It also supports both tree-structure and star Ethernet topology, offering flexibility in network configurations. The TSXETZ410 is engineered to operate at a 24V DC supply voltage with a current consumption range of 50mA to 200mA, ensuring optimal energy efficiency.
Furthermore, the module’s power dissipation varies between 2.4W to 4W, allowing it to maintain consistent performance across various industrial environments. The device’s compact dimensions—39.83mm (width) x 116.7mm (depth) x 151.5mm (height)—make it easy to integrate into various systems, while its lightweight design of 0.28kg ensures that it doesn’t add unnecessary bulk.

Easy Connectivity Options for Seamless Integration
The TSXETZ410 offers a range of connectors to facilitate easy integration with your existing system. It comes equipped with screw terminal blocks, mini DIN connectors for terminal ports, and RJ45 connectors, providing versatile and secure connections. Additionally, it has 9-way SUB-D connectors for electrical connections, which ensures stable and reliable data transmission.

When it comes to network connection, the module supports a maximum cable distance of 100 meters between terminal devices and hubs via Ethernet, ensuring long-range communication without signal degradation.

Certification and Standards Compliance
The TSXETZ410 Schneider Ethernet module is built to meet the highest industry standards, ensuring reliability and safety. It holds certifications from CE, GL, RINA, GOST, DNV, LR, RRS, and BV, making it a globally recognized and trusted component for your automation needs. The module also complies with a variety of industry standards, including:
UL 508
IEC 1000-4-2 (level 3)
IEC 1000-4-3 (level 3)
IEC 1000-4-4 (level 3)
IEC 1000-4-5
ANSI/IEEE Std 802.3
ISO/IEC 8802-3
IEC 61131-2
This makes it ideal for use in demanding industrial environments where strict compliance with safety and quality standards is crucial.

Comprehensive Package for Easy Setup
Included with the TSXETZ410 Ethernet module is a gateway module, user manual, and web designer software (CD-ROM), which facilitates the integration and configuration of the device into your automation system. These tools ensure that you can quickly set up and start using the module with minimal hassle.

Conclusion: Boost Your Automation System with the TSXETZ410

The TSXETZ410 Schneider Ethernet module offers an advanced solution for enhancing your automation system’s connectivity. Its reliable performance, compact size, and compliance with international standards make it an indispensable tool for industries such as manufacturing, infrastructure, and machine control. By choosing the TSXETZ410, you are investing in a product that not only meets your technical needs but also helps improve your system's overall efficiency and productivity.
