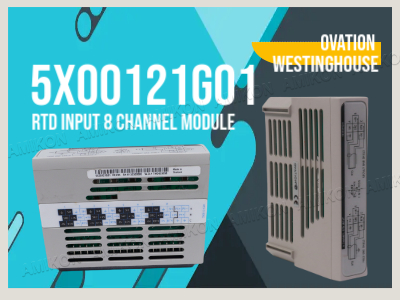

Westinghouse 5X00121G01 8-Channel RTD Input Module: High-Precision Temperature Monitoring Solution

May 19,2025

Introduction

In industrial process control and equipment monitoring, temperature measurement is a critical parameter for ensuring system stability. The Westinghouse 5X00121G01 8-Channel RTD Input Module, with its high-precision acquisition, multi-protection mechanisms, and flexible communication, has become the ideal choice for industries such as petrochemicals, power generation, and pharmaceuticals. This article provides a comprehensive analysis of the module's technical features, applications, and configuration essentials.

Core Functions of the 8-Channel RTD Input Module

The RTD (Resistance Temperature Detector) input module is a vital component in industrial automation systems, offering:
Multi-channel temperature acquisition: Simultaneously monitors 8 RTD sensor signals (PT100/PT1000, etc.)
Signal isolation and conversion: Converts minute resistance changes into standard voltage signals (-10V to +10V)
Anti-interference design: Electromagnetic shielding + filtering algorithms ensure data accuracy
Real-time data transmission: Uploads to DCS/PLC systems via industrial networks
Typical Applications:
✔ Steam turbine temperature monitoring in power plants
✔ Multi-point temperature control in refinery reactors
✔ Cleanroom environmental monitoring in pharmaceutical production
✔ Sterilization temperature recording in food processing

Technical Specifications of 5X00121G01

Hardware Specifications
Parameter Specification
Input Type 8-channel RTD (3-wire/4-wire)
Measurement Accuracy ±0.1% FSR (Full Scale Range)
Resolution 12-bit (4096 steps)
Output Range -10V to +10V or 0V to 10V
Communication Protocol ControlNet/EtherNet/IP
Power Supply 24V DC (bus-powered)
Isolation Voltage 1500V AC (between channels)
Software Features
Supports linearization (compliant with IEC 60751)
Programmable alarm thresholds and filter time constants
Wire break detection (auto-flags faulty sensors)
Configurable via Studio 5000 or RSLogix

Competitive Advantages of Westinghouse 5X00121G01

1. Military-Grade Reliability
MTBF >100,000 hours (per MIL-HDBK-217F standard)
Class I, Div 2 hazardous area certification
Gold-plated contacts (≥1000 mating cycles)
2. Smart Diagnostics & Protection
Real-time monitoring for sensor short-circuit/open-circuit
Automatic output overload cutoff
Time-stamped event logging (stores last 50 anomalies)
3. Easy Installation & Maintenance
Modular snap-in design (supports hot-swapping)
IP20 front panel protection (suitable for cabinet mounting)
Tool-less wiring (spring-clamp terminals)

Case Study: Typical Applications

Combined Cycle Power Plant Temperature Monitoring
System Architecture:
32 x 5X00121G01 modules (256 measurement points total)
ControlNet ring topology
Results Achieved:
Temperature sampling cycle ≤100ms
False alarms reduced by 60%
Maintenance hours decreased by 35%
Chemical Plant Hazardous Area Monitoring
Special Configurations:
Intrinsically safe RTD sensors (ATEX-certified)
4-20mA HART redundant output
Temperature gradient anomaly warning algorithm

Conclusion

The Westinghouse 5X00121G01 Module sets the benchmark in industrial temperature monitoring with its exceptional measurement accuracy, robust environmental adaptability, and flexible networking capabilities. Its modular design and smart diagnostics significantly enhance system reliability and operational efficiency.
