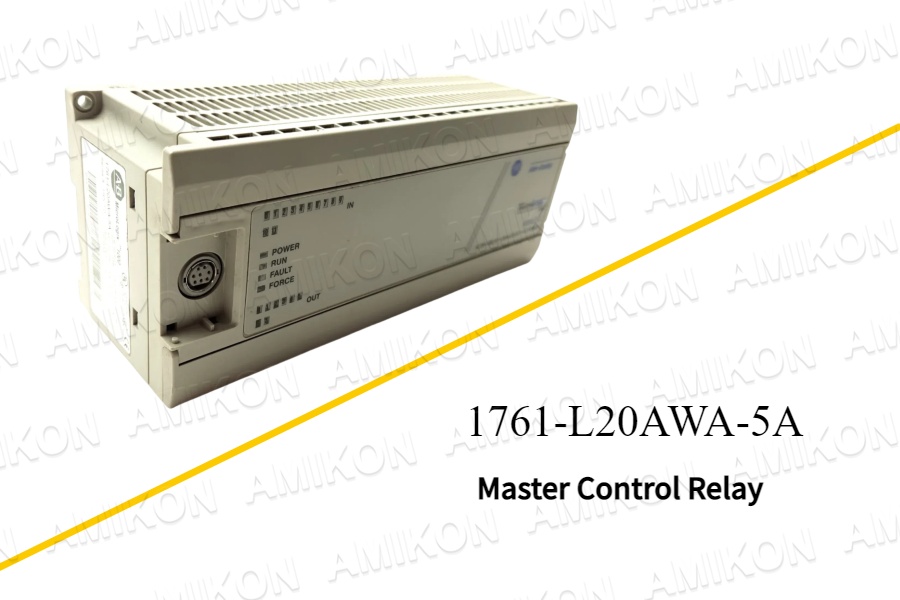

1761-L20AWA-5A Master Control Relay

March 11,2025

Introduction to the 1761-L20AWA-5A Controller
The 1761-L20AWA-5A is a versatile and compact MicroLogix 1000 controller designed for industrial automation applications. With its AC power supply, this controller is packed with features that make it ideal for small to medium-sized control systems. Whether you're managing inputs, outputs, or communication protocols, the 1761-L20AWA-5A delivers reliable performance in a compact package.

Key Features and Specifications
The 1761-L20AWA-5A comes equipped with:
12 AC inputs and 8 relay outputs for versatile control.
4 analog inputs and 1 analog output for precise monitoring and control of analog signals.
A DF1 RS-232 communication port for seamless connectivity.
Compact dimensions of 7.87 x 2.87 x 3.15 inches, making it suitable for space-constrained installations.
LED indicators for status, inputs, and outputs, providing real-time system feedback.

Memory and Performance Capabilities
This controller is powered by a 1K EEPROM memory, capable of handling:
Up to 437 data-table words and 737 instruction words.
Support for 40 timers and 32 counters, ensuring flexibility in programming.
A typical program scan time of 2 milliseconds per Kword and an I/O scan time of 0.21 milliseconds, enabling fast and efficient operation.

Power and Electrical Specifications
The 1761-L20AWA-5A operates with:
24 Volts DC sensor power, with a maximum current of 200 mA and a capacitive load of 200 µF.
A line voltage of 120/240 Volts AC, with real input power of 12 Watts at 120V AC and 13 Watts at 240V AC.
Apparent input power of 20 VA at 120V AC and 27 VA at 240V AC.
Transformer load capacity of 30 VA at 120V AC and 33 VA at 240V AC.

Input and Output Ranges
The controller supports a wide range of input and output signals:
Digital input voltage: 120 Volts AC.
Analog input current range: 0 to 20 mA -1LSB.
Analog input voltage range: -10.5 to 10.5 Volts -1LSB.
Analog output voltage range: 0 to 10 Volts -1LSB.
Analog output current range: 4 to 20 mA -1LSB.

Conclusion

The 1761-L20AWA-5A MicroLogix 1000 Controller is a powerful and compact solution for industrial automation. With its robust features, including multiple I/O options, fast scan times, and reliable performance, it is an excellent choice for small to medium-sized control systems. Whether you're managing digital or analog signals, this controller ensures precision and efficiency in your operations. For more details or installation guidance, consult the official documentation or reach out to technical support.
