2080-LC50-24QWB Micro850 EtherNet/IP Controller

January 13,2025

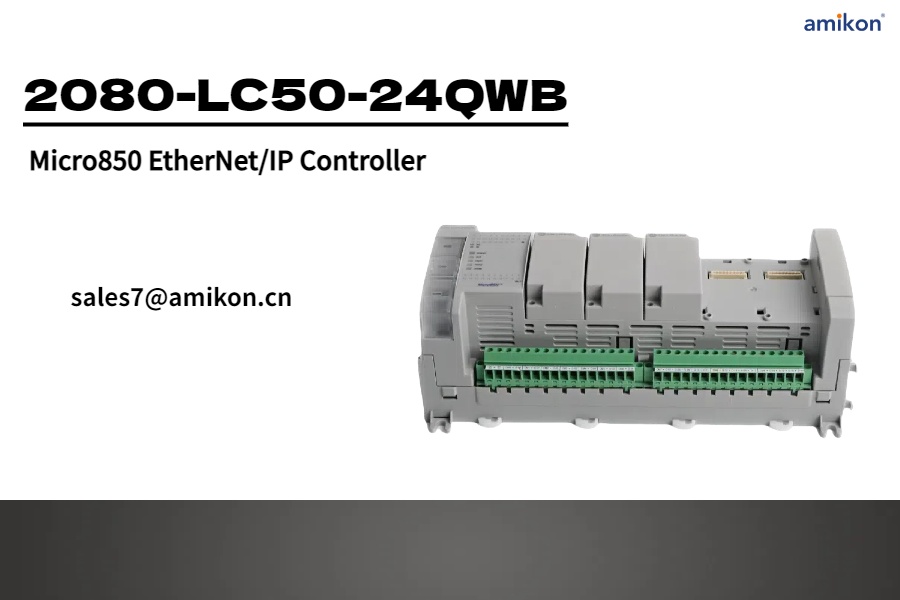

Introduction to the 2080-LC50-24QWB Micro850 Controller
The 2080-LC50-24QWB Micro850 24-Point Controller is a compact yet powerful solution designed for budget-conscious, stand-alone machines. It is engineered to meet the needs of various automation tasks while offering flexibility, ease of use, and cost efficiency. This controller stands out for its robust design and numerous features that cater to industries requiring reliable machine control without the hefty price tag.

Key Features of the 2080-LC50-24QWB Micro850
The 2080-LC50-24QWB Micro850 Controller includes a range of impressive features, such as 14 embedded inputs and 10 embedded outputs. With the ability to add up to three plugin modules, this controller offers further expandability, making it an adaptable solution for a wide variety of applications. It supports 14 high-speed 24V sink/source input circuits and includes 10 relay outputs, giving users flexible input and output options.

The controller is designed to operate within a Class 2 input voltage range of 20.4V to 26.4V DC and consumes a maximum of 28W. The inclusion of 250V AC isolation voltage between outputs to auxiliary and network inputs further enhances its versatility and safety, making it suitable for use in harsh environments. Additionally, it is housed in an IP20-rated enclosure for protection against dust and water ingress, ensuring long-lasting performance in demanding conditions.

Reliable Performance with Safety Features
One of the standout features of the 2080-LC50-24QWB Micro850 Controller is its safety certifications. It has been rigorously tested at 3250V DC for 60 seconds using reinforced insulation, ensuring that it meets the highest standards of safety and reliability. The controller also boasts a C300, R150 pilot duty rating and a 7mm insulation strip length, which contributes to its overall durability and operational safety.

Additionally, the controller offers six standard 24V sink/source DC inputs with an ON-state voltage range of 10-30V DC and a nominal input impedance of 3.74kOhms. It also provides 50V DC working voltage isolation from the input group to the backplane, which has been tested at 720V DC for 2 seconds. These features allow the controller to deliver high performance and reliable operation under challenging conditions.

Versatility in Input and Output Options
The controller supports multiple types of inputs and outputs to meet diverse automation requirements. It features eight isolated AC inputs, with an ON-state voltage of 12/24V AC at 50-60Hz and an OFF-state voltage of 4V AC. Additionally, the 10 relay outputs offer impressive capabilities, including a maximum output voltage of 125V DC and a maximum load current of 2A.

These relay outputs also feature a maximum current of 5A per common and a maximum turn-on/off time of just 10ms, ensuring fast and efficient performance. Moreover, the controller’s relay outputs have a MAKE/BREAK amperage rating of 0.22A and a real power rating of 28VA, making it a versatile choice for various applications.

Robust Environmental Performance
The 2080-LC50-24QWB Micro850 Controller has been designed to withstand challenging environmental conditions. With an operational temperature range of -4°F to 149°F and the ability to handle relative humidity levels from 5% to 95% (non-condensing), this controller is built for reliability in harsh climates.

It can also be stored at temperatures between -40°F and 185°F, and its shock resistance rating of 25G ensures that it remains operational even in rugged environments. The controller’s vibration rating of 2G at 10-500Hz further highlights its robustness, ensuring it performs reliably even when subjected to physical stress.

Compact and Lightweight Design
Despite its impressive features and capabilities, the 2080-LC50-24QWB Micro850 Controller is lightweight and compact, weighing just 0.423kg (0.933lb). It is shipped with dimensions of 90mm x 158mm x 80mm (3.54in x 6.22in x 3.15in), making it easy to transport and integrate into existing systems.

Conclusion

The 2080-LC50-24QWB Micro850 24-Point Controller is a powerful, reliable, and cost-effective solution for a wide range of automation applications. With its compact design, flexible input/output options, and impressive safety and environmental features, it is an excellent choice for businesses looking to streamline their operations while ensuring long-term reliability. Whether for low-budget, stand-alone machines or more complex automation tasks, the 2080-LC50-24QWB offers everything you need to meet your control requirements efficiently and safely.
