brand new BENTLY NEVADA 3500/50 133388-02 Tachometer Module,BENTLY NEVADA 3500/50 133388-02 Tachometer Module suppliers,BENTLY NEVADA 3500/50 133388-02 Tachometer Module manufacturers,factories

Brand	BENTLY NEVADA
Part Number	3500/50M 133388-02
Product Type	Tachometer Module
Payment	T/T,100% advance payment
Shipping Port	Xiamen,China
Lead Time	In stock

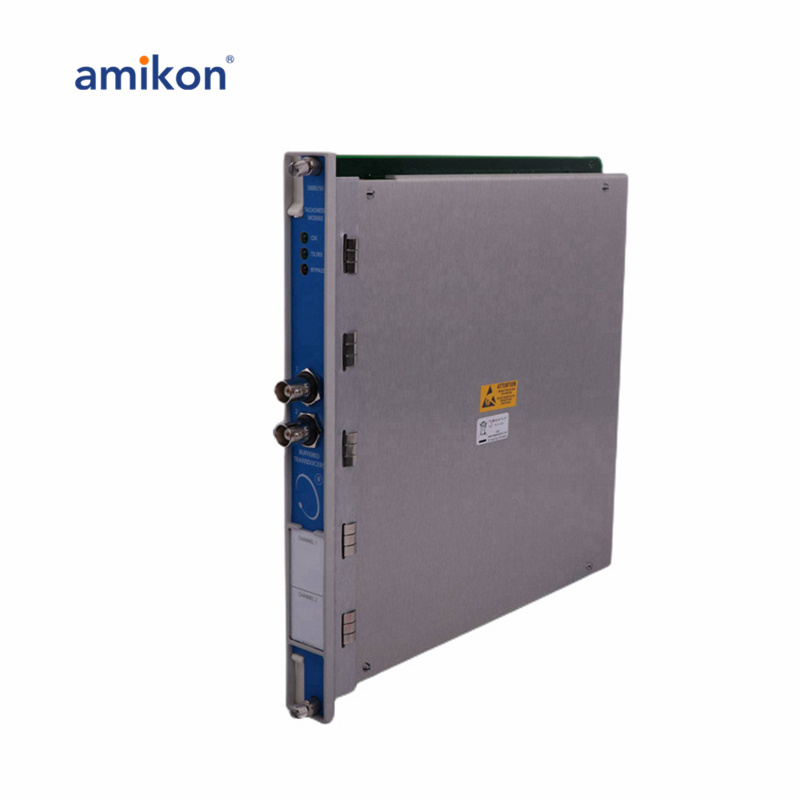

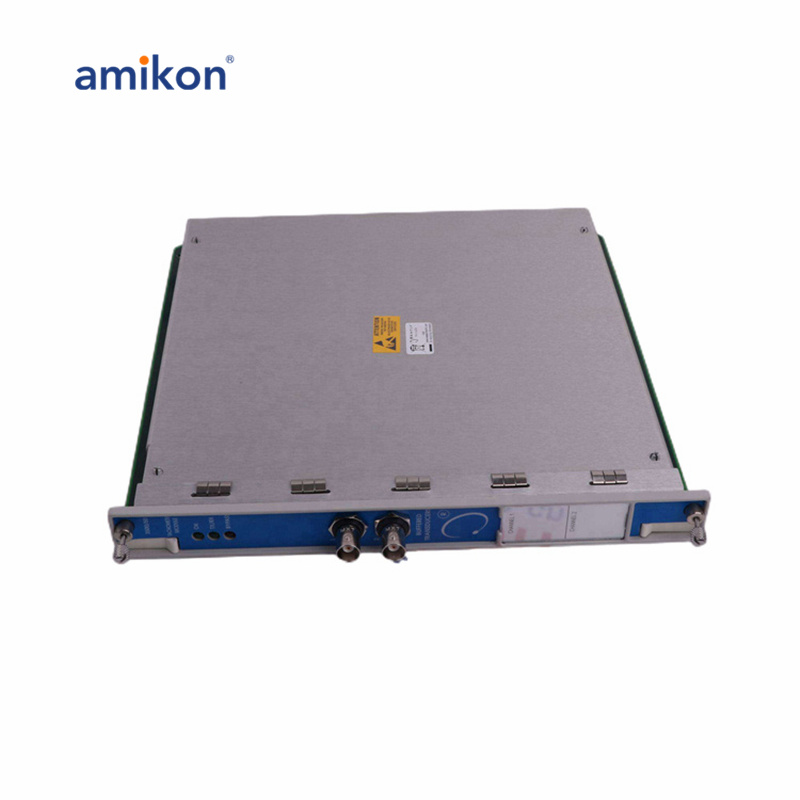

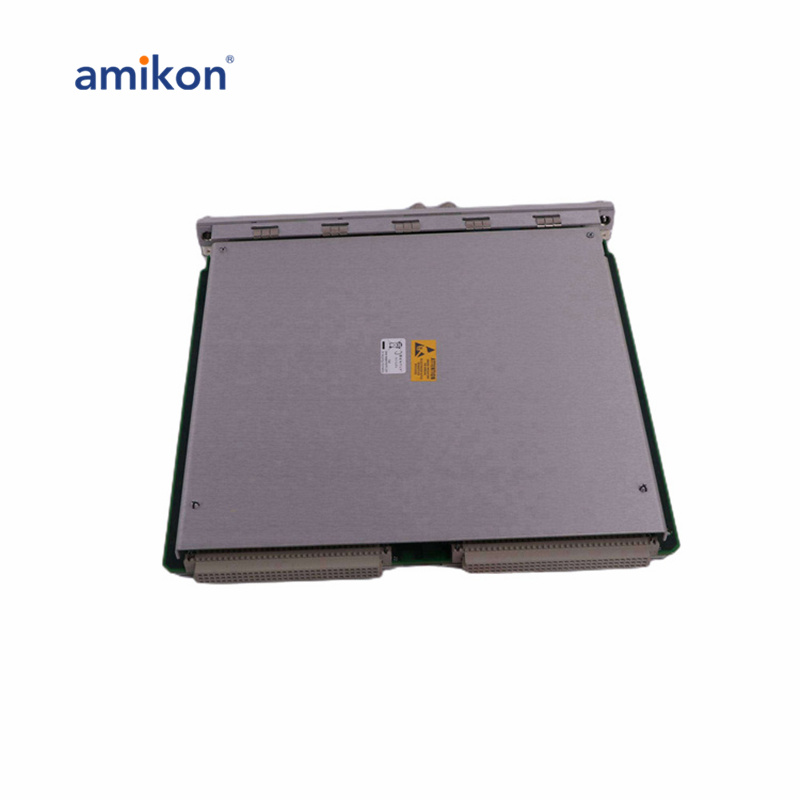

The 3500/50 Tachometer Module is a versatile two-channel module designed to monitor shaft rotational speed, rotor acceleration, and direction using input from proximity probes or magnetic pickups. It compares these measurements against user-programmable alarm setpoints, generating alarms when the setpoints are violated.

The module is configurable using the 3500 Rack Configuration Software and offers four options for setup:
Speed Monitoring, Setpoint Alarming, and Speed Band Alarming.
Speed Monitoring, Setpoint Alarming, and Zero Speed Notification.
Speed Monitoring, Setpoint Alarming, and Rotor Acceleration Alarming.
Speed Monitoring, Setpoint Alarming, and Reverse Rotation Notification.
The module accepts up to two transducer signals, with an input range of +10.0V to -24.0V. Any signals exceeding this range are internally limited by the module. The typical power consumption is 5.8 watts. The standard input impedance is 20 kΩ, with variations depending on the module configuration (40 kΩ for TMR, 7.15 kΩ for internal barriers).

It is important to note that while the module supports proximity transducers, restrictions may apply to the use of magnetic pickups, as outlined in the application note.

Category	Details
Inputs
Signal	Each 3500/50M Tachometer Module accepts up to two transducer signals from proximity probe transducers or magnetic pickups.
Input Signal Range	+10.0 V to -24.0 V
Signal Limiting	Signals exceeding this range are limited internally by the module.
Input Impedance	20 k Ω (standard) 40 k Ω (TMR) 7.15 k Ω (Internal Barrier)
Power Consumption	5.8 Watts, typical
Transducers	Accepts 1 to 2 proximity transducer signals. Restrictions may apply to magnetic pickups.
Outputs
Front Panel LEDs
OK LED	Indicates when the 3500/50M Tachometer Module is operating properly.
TX/RX LED	Indicates when the Tachometer Module is communicating with other modules in the 3500 rack.
Bypass LED	Indicates when the Tachometer Module is in Bypass Mode.
