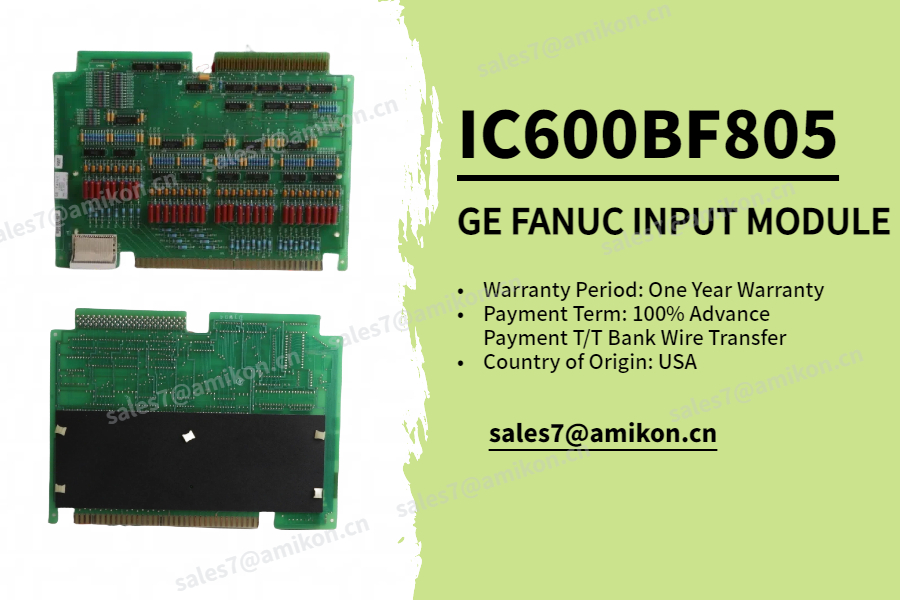

Introduction to the GE Fanuc IC600BF805 AC/DC Input Module
The GE Fanuc IC600BF805 AC/DC Input Module is a crucial component for integrating input devices with programmable logic controllers (PLCs). With its ability to handle both AC and DC input voltages of 230 Volts, it is a versatile choice for a wide variety of industrial applications. This article will provide a thorough overview of the module, including its specifications, installation steps, and best practices for use.

Key Features of the GE Fanuc IC600BF805
The GE Fanuc IC600BF805 AC/DC Input Module is designed with several standout features that enhance its performance and reliability. It is a Series Six module with the following specifications:
Voltage Range: 230 Volts AC/DC
Input Points: 8 input points, making it ideal for medium-sized automation systems
Module Construction: The module features a faceplate and a circuit board that combine to form a complete module assembly, providing a compact and efficient design.
Rack Mounting: It is mounted in the I/O rack or I/O rack section of the CPU, ensuring seamless integration with the PLC.
Additionally, the IC600BF805 offers flexibility in terms of power supply. The I/O rack, where the module is installed, provides backplane signals and regulated DC power from the power supply. Depending on the power requirements of the application, the rack can be equipped with standard or high-capacity power options.

Understanding the I/O Rack and Power Requirements
When setting up the IC600BF805 module, the choice of I/O rack is crucial. The I/O rack offers power to the module and provides the necessary signals for the operation. There are three types of racks to choose from:
Standard AC Power I/O Rack – Suitable for most general applications where the power requirements do not exceed the module's current capacity.
High-Capacity DC Power I/O Rack – Best suited for applications that require more substantial DC power for running multiple modules.
High-Capacity AC Power I/O Rack – Ideal for applications that demand a higher AC power rating to handle more demanding input-output operations.
Selecting the right I/O rack will depend on the total current requirements of your system. If the current exceeds 6.1 Amps, a high-capacity I/O rack is necessary to ensure smooth operation.

Step-by-Step Installation Process
Proper installation of the IC600BF805 is essential to ensure functionality and longevity. Here’s a detailed guide to help you get the module up and running:
Set the DIP Switches: The first step involves setting the Dual-In-Line-Package (DIP) switches on the back of the card slot on the rack backplane. This will configure the module to be compatible with the 8 input points in your user program.
Use the Insertion Tool: The Series Six CPU comes with a special insertion or extraction tool. Use this tool to carefully insert or remove the IC600BF805 module into the card slot.
Align the Faceplate and Circuit Board: Once the module is inserted, align the faceplate on top of the circuit board. Ensure the terminals are properly mated to allow for seamless communication.
Secure the Faceplate: Use the thumbscrews to secure the faceplate at the top and bottom of the rack. This ensures that the module is firmly attached and prevents accidental disconnections.
Connect the User Circuit: With the module secured, connect your user circuit to the appropriate terminals. Ensure all connections are correct to avoid potential errors or malfunctions.
Install the Terminal Cover: Finally, align the terminal cover on top of the terminal block and slide it into place. This will protect the terminals from dust and accidental shorts.

Best Practices for Maintenance and Troubleshooting
While the GE Fanuc IC600BF805 module is designed for durability, following these best practices can help prevent issues and extend the lifespan of your equipment:
Regular Inspections: Periodically check the connections and the integrity of the faceplate. Over time, loose connections can cause performance degradation.
Power Supply Monitoring: Ensure that the power supply is always within the rated limits. Over-voltage or under-voltage can damage the module and cause operational issues.
Keep Spare Parts: Having a few replacement modules on hand can minimize downtime in case of failure. The modular design makes it easy to replace individual components without shutting down the entire system.
Use Correct Wiring: Always follow the recommended wiring guidelines in the user manual to avoid short circuits or incorrect signal transmission.

Conclusion

The GE Fanuc IC600BF805 AC/DC Input Module is a highly reliable and versatile solution for interfacing analog input signals with PLCs. By following the installation steps carefully and selecting the appropriate I/O rack, you can ensure optimal performance and efficiency in your system. Regular maintenance and attention to power requirements will help you keep the module running smoothly and minimize the risk of operational disruptions. Whether you are upgrading an existing system or setting up a new one, the IC600BF805 is an excellent choice for a wide range of industrial automation applications.
