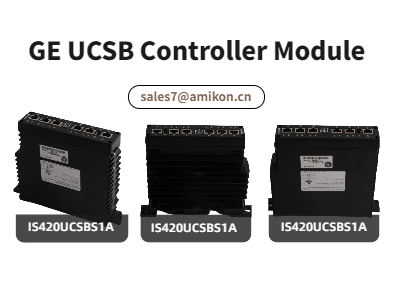

IS420UCSBS1A | GE UCSB Controller Module (Safety) Parameter Details Part No IS420UCSBS1A Manufacturer General Electric (GE) Product Type UCSB Controller Module (Safety) Series Mark VIeS Redundancy Simplex, Dual, or Triple Modular Redundant (TMR) Type of Memory Storage 256 MB DDR2 SDRAM Processor 600 MHz Intel EP80579 Dimensions (H x W x D) 3.2cm x 0.8cm x 2.5cm (1.26in x 0.31in x 0.98in) Availability In Stock Country of Origin USA What is the IS420UCSBS1A? The IS420UCSBS1A is a UCSB Controller Module developed by GE for use in the Mark VIe and Mark VIeS systems. These systems are specifically designed for the control and management of industrial turbine systems, including both gas and steam turbines. Functioning as a safety controller, the IS420UCSBS1A plays a critical role in ensuring reliable and efficient turbine operations while meeting stringent safety standards. Key Features of IS420UCSBS1A The IS420UCSBS1A module boasts several features that make it an integral component of the Mark VIe and Mark VIeS systems. Below are some of its primary highlights: Functional Safety: The module is designed for functional safety loops, achieving SIL 2 and SIL 3 capabilities per IEC 61508 certification. Hazardous Environment Certification: While certified for use in hazardous environments, it may require specific installation considerations. Efficient CPU Performance: Powered by an Intel EP80579 600 MHz CPU, it ensures seamless processing capabilities. Temperature Range: The module operates effectively in temperatures ranging from -30 to +65°C, making it suitable for various industrial environments. Power Supply: It runs on a nominal voltage of 28.0 VDC (Min: 27.4 VDC, Max: 28.6 VDC). Safety-Oriented Programming: Combines hardware and software to meet safety-oriented programming needs, ensuring robust operations. Advantages of the UCSB Controllers The UCSB controllers, including the IS420UCSBS1A, come with multiple benefits that make them ideal for industrial turbine applications. Compact Design Smaller panel footprint, making it easier to integrate into existing setups. Built-in Features Includes a built-in power supply, eliminating the need for external units. No jumper settings required for configuration, simplifying installation and maintenance. Maintenance-Free Operation No batteries required. No fan for UCSBS1A models, while the IS420UCSBS1A includes dual-redundant fans for improved reliability. Enhanced Durability Flash memory updates can be carried out conveniently, ensuring the system stays up to date with minimal downtime. Why Choose IS420UCSBS1A for Mark VIeS Systems? The IS420UCSBS1A module offers unparalleled reliability and efficiency for turbine management. With its certification for safety loops and its ability to function in hazardous environments, it is an essential component for industries looking to enhance safety and operational standards. Key reasons to choose IS420UCSBS1A include: Compliance with SIL 2 and SIL 3 standards, ensuring r...

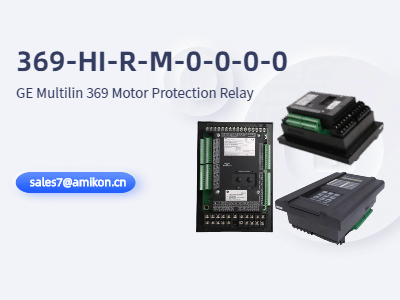

369-HI-R-M-0-0-0-0 | GE Multilin | 369 Motor Protection Relay Feature Description Manufacturer GE Multilin (Digital Energy Multilin) Product No 369-HI-R-M-0-0-0-0 Product Type 369 Motor Protection Relay Basic Unit 369 - Basic unit (no RTD) Control Power HI-50-300 VDC / 60-265 VAC RTD Inputs R - Optional 12 RTD inputs (built-in) Metering Package M - Optional metering package Fiber Optic Port 0 - No optional Fiber Optic Port Modbus/TCP Protocol E - Optional Modbus/TCP protocol interface Harsh Environment Option 0 - No Harsh environment option What is the GE Motor Protection Relay 369-HI-R-M-0-0-0-0? The GE Motor Protection Relay 369-HI-R-M-0-0-0-0 is a high-performance device specifically engineered to protect motors from electrical faults and unfavorable operating conditions. This advanced relay ensures the stability, reliability, and longevity of motor control systems across diverse industrial and commercial settings. Whether deployed in manufacturing plants, energy facilities, or commercial infrastructures, this motor protection relay offers a robust solution for optimizing motor performance while minimizing downtime and damage risks. About GE Motor Protection Relay 369-HI-R-M-0-0-0-0: The 369-HI-R-M-0-0-0-0 relay boasts several cutting-edge features, making it a top choice for motor protection: Comprehensive Fault Detection Protects against overcurrent, undervoltage, and phase imbalances. Enhanced Thermal Protection Monitors motor temperature to prevent overheating and extend lifespan. Real-Time Monitoring Provides operators with immediate data on motor health and operating conditions. Flexible Applications Suitable for various motor types and industrial setups, ensuring compatibility across multiple environments. Specifications and Dimensions of the GE Motor Protection Relay Understanding the physical attributes of this relay is critical for proper installation and integration: Dimensions: 8.0" x 11.8" x 5.8" (20.3 cm x 29.8 cm x 14.6 cm) Weight: 7 lbs 9.6 oz (3.4 kg) These compact dimensions and moderate weight allow for easy installation in control panels or motor control centers. Why Choose the GE Motor Protection Relay? 1. Unparalleled Reliability GE’s reputation for engineering excellence ensures this relay delivers consistent performance, even under demanding conditions. 2. Advanced Diagnostics The relay’s ability to analyze and diagnose faults in real-time prevents critical failures and unplanned outages. 3. Cost Efficiency By mitigating motor failures, the relay reduces maintenance costs and extends the operational life of motor assets. Conclusion The GE Motor Protection Relay 369-HI-R-M-0-0-0-0 is an industry-leading device designed to safeguard motors, ensuring their reliable and efficient operation. With its advanced features, robust diagnostics, and cost-effective protection, it is a valuable asset for any industrial or commercial motor control system. Whether you’re looking to prevent costly downtime or enhance motor performance, ...

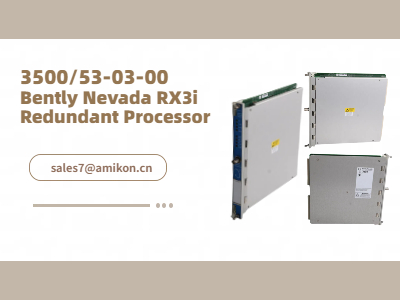

3500/53-03-00 | Bently Nevada RX3i Redundant Processor Category Specification Inputs Signal Accepts a single transducer signal from a proximity probe transducer or magnetic pickup.   Input signal range: +10.0 V to -24.0 V. Signals exceeding this range are internally limited. Input Impedance 20 k Ω.  Power Consumption 8.0 watts (typical) Transducers Supports the following:   - Bently Nevada 3300 8 mm Proximitor   - 3300 16 mm HTPS   - 7200 5 mm, 8 mm, 11 mm, and 14 mm Proximitor   - 3300 RAM Proximitor   - Magnetic pickups Outputs Front Panel LEDs   OK LED Indicates when the 3500/53 Module is operating properly. TX/XR LED Indicates when the 3500/53 Module is communicating with other modules in the 3500 rack. Bypass LED Indicates when the 3500/53 Module is in Bypass Mode. Test Mode LED Indicates when the 3500/53 is in Test Mode. Alarm LEDs Indicates that an alarm condition has occurred with the associated relay. Understanding the Bently Nevada Overspeed Detection System The Bently Nevada™ 3500/53-03-00 Overspeed Detection Module is a core component of the renowned 3500 Series Machinery Protection System. Engineered for maximum reliability and rapid response, this system ensures machinery safety by monitoring rotational speed and providing overspeed protection in critical industrial applications. Designed to comply with American Petroleum Institute (API) Standards 670 and 612, this module sets a benchmark in overspeed protection, making it a preferred choice for industries like oil and gas, power generation, and petrochemicals. One of the key features of the 3500/53-03-00 is its ability to form a 2-out-of-2 or a 2-out-of-3 voting system, ensuring enhanced redundancy and reliability. When integrated with a 3500 rack system equipped with redundant power supplies, the module operates seamlessly to safeguard your machinery from potential damage caused by overspeed conditions. How the Overspeed Detection System Works The 3500/53-03-00 module operates by continuously monitoring the rotational speed of machinery via input signals from transducers. The input signal range is +10.0 V to -24.0 V, with internal mechanisms to limit signals exceeding this range. The module processes this data in real time, comparing it against predefined thresholds to detect overspeed conditions. When an overspeed event occurs, the system immediately triggers protective actions, such as alarms or shutdowns, to prevent damage to machinery and ensure operational safety. FAQs About the Bently Nevada 3500/53-03-00 Q1: What is the purpose of the 3500/53-03-00 module? A1: This module is designed to monitor rotational speeds and provide overspeed protection for machinery, ensuring compliance with industrial safety standards. Q2: What types of input signals does it support? A2: It accepts signals from proximity probes or magnetic pickups, with a signal range of +10.0 V to -24.0 V. Q3: What transducers are compatible with this module? A3: It support...

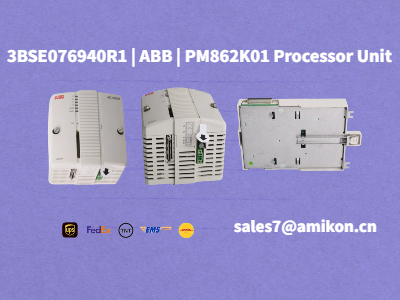

3BSE076940R1 | ABB | PM862K01 Processor Unit Specification Details Processor Type MPC866 Switch Over Time in Redundant Configuration Max 10 ms Number of Applications per Controller 32 Number of Programs per Application 64 Number of Diagrams per Application 128 Number of Tasks per Controller 32 Number of Different Cycle Times 32 Cycle Time per Application Programs Down to 1 ms Flash PROM for Firmware Storage 4 MB Power Supply 24 V DC Power Consumption +24 V (Typical/Max) 210 Power Dissipation 5.1 W (8.6 W ma Redundant Power Supply Status Input Yes Built-in Backup Battery Lithium, 3.6 Clock Synchronization 1 ms b Event Queue in Controller per OPC Client Up to 3000 events Introduction to the ABB Processor Unit PM862K01 The ABB Processor Unit PM862K01 (3BSE076940R1) is an advanced controller designed to deliver reliable and scalable performance in industrial automation systems. Engineered with cutting-edge features and robust hardware, this controller is an integral part of ABB's 800xA automation platform, ensuring precision, connectivity, and flexibility for a wide range of applications. Key Hardware Components The PM862K01 processor unit is equipped with essential hardware components that ensure optimal performance and functionality: Microprocessor and RAM Memory: Deliver fast and efficient processing for real-time applications. CompactFlash Interface: Provides secure and robust data storage. LED Indicators and INIT Button: Simplify fault diagnosis and system initialization. Communication Ports: Includes two Ethernet ports (CN1, CN2) for Control Network connectivity and two serial ports (COM3, COM4). Ethernet and Serial Port Capabilities Ethernet Ports: Support redundant communication for enhanced reliability. Serial Ports: COM3 is an RS-232C port for modem connections, while COM4 offers isolated connections for configuration tools. Advanced Features for Industrial Applications The PM862K01 is built with a host of advanced features, making it a standout choice for industrial automation: CPU Redundancy: Supports redundancy for CPUs, communication interfaces, and S800 I/O, ensuring system availability even in critical scenarios. DIN Rail Mounting: Simplifies installation with an innovative slide-and-lock mechanism. Unique Hardware Identity: Each base plate has a unique Ethernet address for hardware identification, enhancing system integrity. Versatility in Configuration and Connectivity The PM862K01 is designed for seamless integration and configuration: 800xA Control Builder Compatibility: Enables intuitive configuration and management. Standards-Based Hardware: Supports Ethernet, PROFIBUS DP, and other industry-standard communication protocols. Sectioned CEX-Bus: Utilizes BC810/BC820 modules for modular expansions. Key Benefits The PM862K01 processor unit offers a range of benefits tailored for industrial use: Reliability: Designed for uninterrupted operation in demanding environments. Ease of Maintenance: LED indicators and modular design simplify...

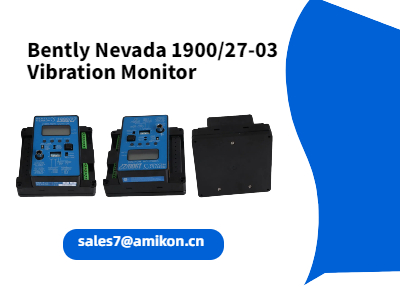

Enhance Machinery Protection with the Bently Nevada 1900/27-03 Vibration Monitor Specification Details Inputs   Compatible Transducers Bently Nevada 200150 and 190520 Accelerometers Input Sensitivity 100 mV/g Maximum Acceleration 20 g peak Maximum Differential Input Voltage 4 volts peak to peak Power   AC/HDC Power Version   AC Voltage 85 to 264 Vac DC Voltage 110 to 370 Vdc Current Draw 60 mA (typ.), 120 mA (max.) Frequency 47 Hz to 440 Hz, or DC Inrush Current 20A (typ.) @ Vin=100Vac, 40A (typ.) @ Vin=200Vac Overview of the Bently Nevada 1900/27-03 The Bently Nevada 1900/27-03 is a robust, single-channel vibration monitor specifically designed to enhance machinery protection. This stand-alone device is ideal for general-purpose or essential machinery applications, ensuring reliable performance and monitoring. It features a single transducer input compatible with Trendmaster® 2000 accelerometers, converting vibration data into peak velocity units for effective analysis. The monitor provides clear local displays, status indicators, and alarm relay outputs, making it easy to integrate into external systems. Its built-in 4-20 mA interface further simplifies the connection to plant control and automation systems for seamless trending and data analysis. Integration with the Trendmaster® 2000 System An outstanding feature of the 1900/27-03 is its compatibility with the Trendmaster® 2000 system through the optional Rack Buffered Output Transducer Interface Module (TIM). This integration enables users to extend vibration monitoring and protection to all, or specific, seismic vibration points within the Trendmaster® 2000 system. This versatility makes the device an excellent choice for facilities looking to implement or enhance comprehensive machinery protection. Best Practices for Housing Measurements When using the 1900/27-03 for housing measurements, it’s crucial to evaluate the relevance and effectiveness of the measurement for each specific application. Many common machinery issues, such as imbalance or misalignment, originate at the rotor and lead to increased rotor vibration. For housing measurements to be meaningful, rotor vibrations must effectively transfer to the bearing housing or casing, particularly at the transducer mounting location. Proper evaluation and strategic placement ensure that the collected data accurately represents the machinery's performance and provides meaningful insights for preventive maintenance. Importance of Proper Transducer Installation A critical aspect of ensuring the reliability of the 1900/27-03 lies in the correct physical installation of the transducer. Improper installation can diminish the amplitude and frequency response of the transducer, resulting in inaccurate readings. Worse, it may even produce misleading signals that do not reflect actual machine vibration. Careful attention to mounting techniques, location selection, and adherence to installation guidelines are essential...

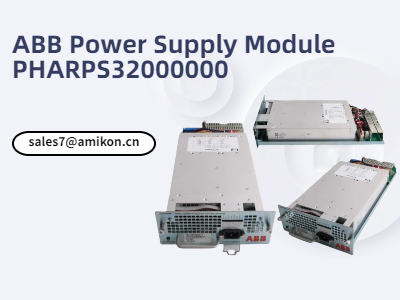

PHARPS32000000 | ABB Power Supply Module Category Details General Information   Product ID PHARPS32000000 ABB Type Designation MPS III Catalog Description Power Supply, 5V, +15V, -15V, 24V Long Description 5V @ 60A, +15V @ 3A, -15V @ 3A, 24V @ 17A Additional Information   Medium Description 5V @ 60A, +15V @ 3A, -15V @ 3A, 24V @ 17A Product Type Power_Supply Dimensions   Product Net Depth/Length 228.6 mm Product Net Height 330.2 mm Product Net Width 635 mm Product Net Weight 0 kg Manufacturers   Manufacturer Name ABB, Bailey Supported Models ABB Bailey Infi 90, ABB Bailey Infi 90 and Net 90 Shipping Information   Shipping Dimensions (L×W×H) 18.0" × 4.0" × 9.0" (45.7 cm × 10.2 cm × 22.9 cm) Shipping Weight 13 lbs 0.0 oz (5.9 kg) Tariff Code 8504409530 The High-Performance ABB PHARPS32000000 Power Supply Module The ABB PHARPS32000000 Power Supply Module stands as a premier choice for industrial power solutions. Designed to meet the rigorous demands of modern industries, it offers a variety of voltage outputs to suit diverse operational requirements. These include: 5V at 60A +15V at 3A -15V at 3A 24V at 17A Engineered for reliability, this power supply ensures uninterrupted power for critical systems. Its compatibility with ABB Bailey Infi 90 and Net 90 systems makes it a flexible choice for upgrading or integrating into existing industrial setups. Why the PHARPS32000000 is Ideal for Industrial Applications Industrial environments demand equipment that can withstand harsh conditions while delivering consistent performance. The PHARPS32000000 excels in this area with its robust construction and efficient design. Stability and Reliability: This module provides dependable power, ensuring minimal downtime and enhanced productivity. Versatility: With multiple voltage outputs, it meets the needs of diverse applications, from process control to automation systems. Compatibility: Seamlessly integrates with ABB Bailey systems, reducing the complexity of deployment in industrial settings. Whether in automation, process control, or other industrial environments, the PHARPS32000000 is a go-to solution for reliable power. Technical Specifications at a Glance When selecting a power supply, understanding its dimensions and specifications is crucial. Here’s a quick overview: Net Dimensions: Depth: 228.6 mm Height: 330.2 mm Width: 635 mm Shipping Information: Dimensions: 18.0" × 4.0" × 9.0" (45.7 cm × 10.2 cm × 22.9 cm) Weight: 13 lbs (5.9 kg) Tariff Code: 8504409530 These specifications ensure easy handling, shipping, and integration into various industrial setups. Frequently Asked Questions (FAQ) 1. What are the typical applications for this module? The PHARPS32000000 is designed for demanding industrial environments requiring stable power delivery. It is widely used in: Process control systems Automation setups Other critical systems requiring multiple voltage outputs 2. What makes this module suitable for industrial environments? Its robu...

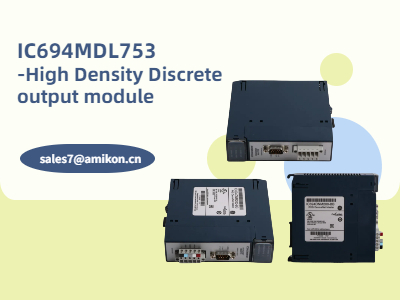

IC694MDL753 - High Density Discrete output module Parameter Details Brand GE Fanuc Series PACSystem RX3i Manufacturer GE Intelligent Platforms (Former); Emerson Automation (Current) Part Number IC694MDL753 Product Description High-Density Discrete Output Module Number of Output Groups Four (4) Module Description Positive Logic Output Module Number of Channels Thirty-Two (32) Output Voltage Range 10.2-28.8 VDC Application RX3i PACSystems Number of Output Groups Four (4) Understanding the IC694DNM200: An Overview The GE DeviceNet Master Module IC694DNM200 is a critical component of the PACSystem RX3i series, a line of programmable automation controllers (PACs) originally manufactured by GE Intelligent Platforms and now under Emerson Automation. This module supports seamless integration and communication in industrial automation environments by leveraging the DeviceNet protocol, a robust network standard for data exchange among controllers and devices. Key Features of the IC694DNM200 The IC694DNM200 offers extensive functionality that caters to complex industrial automation needs: DeviceNet Protocol Support: Enables communication with a variety of industrial devices such as sensors, actuators, and drives. High-Density Input/Output Channels: Equipped with 32 output channels grouped into four sets of eight channels each, making it suitable for large-scale applications. Positive Logic Wiring Configuration: Ensures compatibility with positive logic systems, enhancing versatility in system design. Built-in Diagnostic Features: Provides LED indicators for channel status, facilitating quick troubleshooting and monitoring. Technical Specifications The IC694DNM200 technical parameters ensure robust performance and reliability: Output Voltage Range: 10.2-28.8 VDC, supporting nominal values of 12 or 24 VDC. Output Current: Each channel supports 0.5 Amperes, with a maximum of 4 Amperes per group. Inrush Current: Rated at 5.4 Amperes for 10 milliseconds. Response Time: Lightning-fast response of 0.5 milliseconds for both on and off states. Isolation: Offers 500 Volts AC isolation per output group, ensuring safety and device protection. Installation and Connectivity The IC694DNM200 module is designed for user convenience and flexibility: Chassis Slot Compatibility: Occupies a single slot in the RX3i rack and can be installed in local or remote I/O racks. Connector Options: Features embedded pins for two male 24-pin connectors, compatible with Fujitsu FCN–365P024–AU connectors. Pre-Wired Cable Options: Supports catalog numbers IC694CBL327 and IC694CBL328, simplifying installation. Practical Applications The IC694DNM200 finds use in a wide range of industrial settings: Automated Assembly Lines: Managing diverse loads such as 12 VDC and 24 VDC systems simultaneously. Material Handling Systems: Ensuring precise control and monitoring of sensors and actuators. Process Automation: Optimizing operations in industries like manufacturing, energy, and pharmaceuticals. Conc...

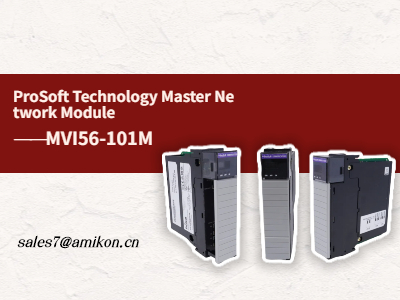

MVI56-101M ProSoft Technology Master Network Module The ProSoft Master Communication Module MVI56-101M is a powerful and adaptable solution for industrial automation. With support for multiple communication protocols, it ensures smooth integration across diverse devices, making it a popular choice for modern industrial systems. This article will explore its features, installation guidelines, and commonly asked questions. About  MVI56-101M: The MVI56-101M is designed to enhance efficiency and connectivity in industrial environments. Here’s what makes it stand out: Protocol Versatility: It supports various communication standards, such as Modbus, Ethernet/IP, and other industrial protocols, allowing it to interface seamlessly with different systems. Flexible Configuration: Users can customize the module’s network settings to meet specific application requirements, ensuring optimal performance. Reliability and Speed: With fast data transfer rates and robust design, the module delivers high reliability, making it ideal for critical operations. This module plays a vital role in integrating programmable logic controllers (PLCs) and other automation equipment into cohesive systems. Installation Guidelines for the MVI56-101M To ensure safety and optimal performance, follow these installation instructions: Wiring Compliance: All wiring should adhere to Class I, Division 2 methods, in line with the National Electrical Code (NFPA 70) in the U.S. or Section 18-1J2 of the Canadian Electrical Code. Safety Warnings: Explosion Hazard: Substituting components can compromise the module's suitability for hazardous areas. Power Off in Hazardous Locations: Always turn off power before replacing or wiring modules. Safe Disconnection: Do not disconnect the device unless the power is off or the area is confirmed to be non-hazardous. Class 2 Power Source: Ensure the device is powered only by Class 2 outputs. Following these guidelines ensures compliance with safety standards and reduces the risk of accidents. Frequently Asked Questions What is the ProSoft MVI56-101M used for? The MVI56-101M is a Master Communication Module designed to enable seamless communication between industrial control systems (like PLCs) and various networks or devices. It ensures efficient data transfer and integration in automation setups. Which protocols does the MVI56-101M support? This module supports a variety of industrial communication protocols, including Modbus, Ethernet/IP, and other standard protocols, making it highly versatile for different applications. Can the MVI56-101M be integrated with any PLC? Yes, the MVI56-101M is compatible with most PLCs and can be easily integrated into existing systems that support its communication protocols. Practical Applications of the MVI56-101M The versatility of the MVI56-101M makes it suitable for numerous industries: Manufacturing: Connects production equipment to centralized control systems for streamlined operations. Oil and Gas: Ensures r...
