The Flex Ex 1797-OE8: A Reliable Analog Output Module for Industrial Applications

March 19,2025

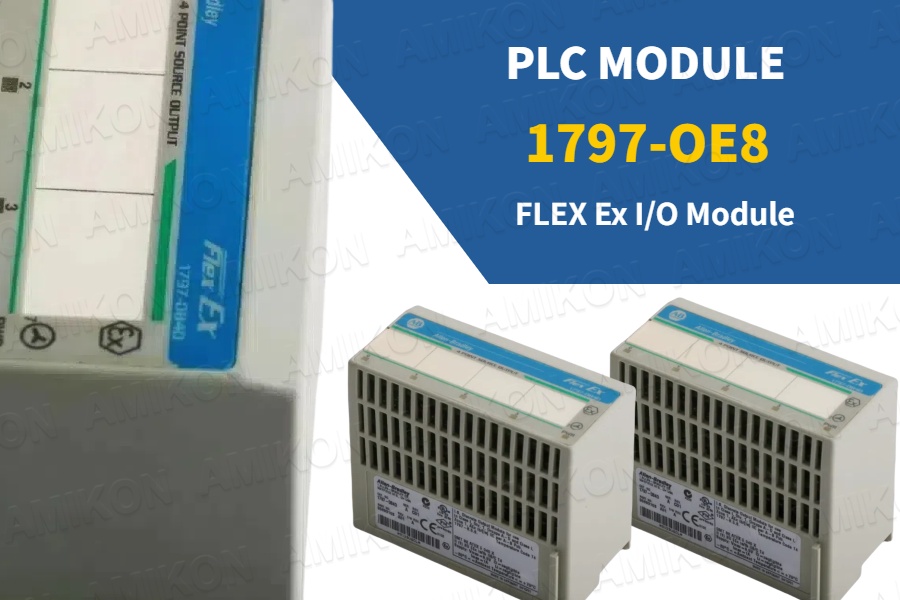

Introduction to the Flex Ex 1797-OE8
The Flex Ex 1797-OE8 is a cutting-edge analog output module engineered to meet the demands of modern industrial applications. With its robust design and advanced features, this module ensures efficient signal output and reliable performance in challenging environments. Whether you're managing complex machinery or monitoring critical processes, the 1797-OE8 is designed to deliver precision and durability. In this article, we’ll explore its key features, technical specifications, and why it’s an excellent choice for industrial settings.

Key Features of the Flex Ex 1797-OE8
The 1797-OE8 stands out with its 8 non-isolated, single-ended channels, providing seamless signal output for various industrial applications. It incorporates Galvanic to DIN EN60079-11 isolation conversion, enhancing both safety and performance. The module also includes an intuitive indicator panel with 8 fault indicators and a power indicator, using red and green lights for easy status monitoring. Additionally, it offers 4 key switch positions, allowing for flexible configuration to suit different operational needs. These features make the 1797-OE8 a versatile and user-friendly solution for industrial automation.

Technical Specifications and Performance
The Flex Ex 1797-OE8 is built to deliver exceptional performance under demanding conditions. It operates with a voltage rating exceeding 11V at 22mA, ensuring stable signal transmission. The current rating ranges from 0 to 22mA, with Io and Ii values of ≥100mA and 1A, respectively, guaranteeing reliable current flow. With a power consumption of 6.3W, the module is energy-efficient while maintaining high performance. Its compact dimensions (3.7 x 2.95 x 1.8 inches) and panel-type mounting design, complete with DIN rails, make it easy to install even in space-constrained environments.

Durability and Environmental Adaptability
Designed for industrial use, the 1797-OE8 excels in harsh environments. It operates within a temperature range of -4°F to 158°F and can handle relative humidity levels between 5% and 95% in non-condensing conditions. The module is also built to withstand vibrations of 2G at frequencies between 10 and 500Hz and has a shock resistance rating of 15G. These features ensure the module remains operational in extreme conditions, making it a reliable choice for industries such as oil and gas, manufacturing, and power generation.

Installation and Safety Considerations
Proper installation is crucial for maximizing the performance of the 1797-OE8. It must be installed within an IP20-rated enclosure that meets NEMA standards to ensure operational security. Wiring should be done using 12 AWG stranded cables for stable power connectivity. The module’s response time, ranging between 200 and 1600 microseconds, ensures real-time data processing, which is critical for industrial applications. By following these guidelines, users can ensure the module operates safely and efficiently.

Conclusion

The Flex Ex 1797-OE8 is a high-performance analog output module that combines advanced features, robust construction, and exceptional durability. Its ability to operate in harsh environments, coupled with its user-friendly design, makes it an ideal choice for industrial applications. Whether you’re looking to enhance signal output reliability or improve system flexibility, the 1797-OE8 delivers on all fronts. For industries seeking a dependable and efficient solution, the Flex Ex 1797-OE8 is a standout option.
