Understanding the 190501-12-99-04 Bently Nevada Velomitor CT Velocity Transducer

March 01,2025

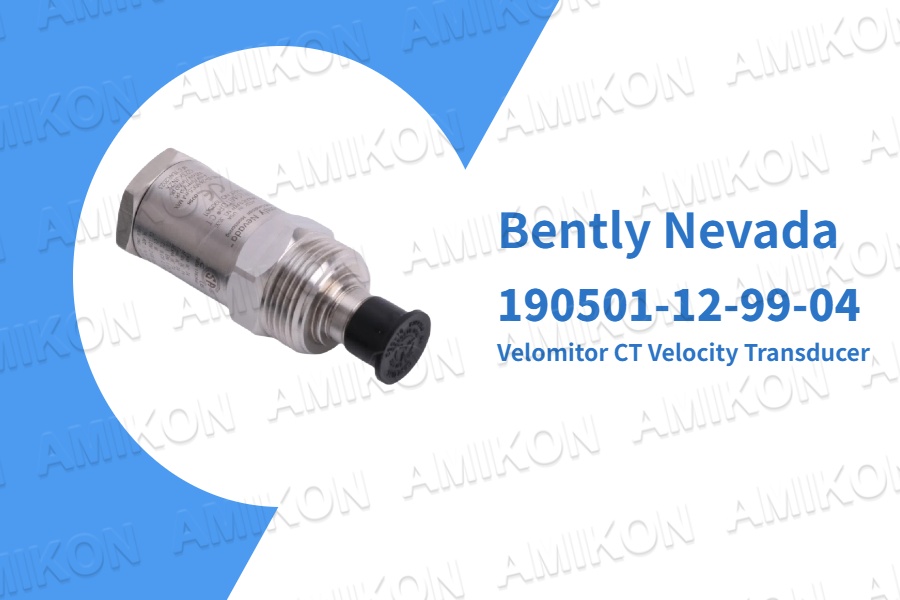

Introduction to the 190501-12-99-04 Velomitor CT Velocity Transducer
The 190501-12-99-04 Velomitor CT Velocity Transducer is a highly specialized sensor designed for measuring casing vibration velocity. It is particularly suited for cooling tower and air-cooled heat-exchanger fan assemblies operating at speeds of 90 rpm or higher (typically within the range of 100 to 300 rpm). This transducer plays a critical role in monitoring vibration amplitudes at these frequencies, ensuring reliable operation by detecting issues related to fan motors and speed reducers.

190501-12-99-04 Key Features and Benefits
The Velomitor CT Transducer is a low-frequency version of the standard Velomitor Piezo-velocity Sensor. It offers several advantages, including:
Precision Monitoring: Accurately measures vibration amplitudes at low frequencies.
Versatile Application: Ideal for cooling tower and air-cooled heat exchanger fans.
Reliale Performance: Helps detect and prevent potential equipment failures.

Multiple Mounting Options: Various configurations for flexible installation.

190501-12-99-04 Mounting Hardware Options
The 190501-12-99-04 transducer comes with multiple mounting options to suit different installation requirements. Below are the available choices:
Standard Stud Options:
No stud (00)
3/8-in 24 to 3/8-in 24 (01)
3/8-in 24 to 1/2-in 20 (02)
M6x with 3/8-in 24 adapter (04)
Adhesive and Plate Stud Options:
Adhesive Stud 3/8-in 24 (03)
Plate Stud 3/8-in 24 to 3/8-in 24 (07)
Plate Stud 3/8-in 24 to 1/2-in 20 (08)
Plate Stud 3/8-in 24 to 1/4-in 28 (11)

Quick disconnect stud (13)

Adapter Options:
3/8-in 24 to 1/4-in 20 (14)
3/8-in 24 to 5/16-in 18 (15)
3/8-in 24 to 1/2-in 13 (18)
3/8-in 24 to 1/4-in 18 NPT (19)
3/8-in 24 to 3/8-in 18 NPT (20)

3/8-in 24 to 1/2-in 14 (21)

190501-12-99-04 Connection Interface Options
To enhance compatibility with different setups, the Velomitor CT Velocity Transducer is available with multiple connection interfaces:
MIL-C-5015 connection interface (00)
Unit with included 32-foot cable (99)
Safety and Agency Approvals
For compliance with industry safety standards, the 190501-12-99-04 model offers several agency approval options, including:
No approvals (00)
CSA/NRTL/C (Class I, Division 1), ATEX/IECEx/CSA (Class I, Zone 0/1) (01 to 04)

Conclusion

The 190501-12-99-04 Bently Nevada Velomitor CT Velocity Transducer is an essential component for monitoring vibration velocity in cooling towers and air-cooled heat-exchanger fan assemblies. With a range of mounting, connection, and safety approval options, it provides customizable and reliable solutions for industrial applications. Investing in this transducer can help enhance operational efficiency, safety, and equipment longevity. For more details or to choose the right configuration for your needs, consult with an expert today!
