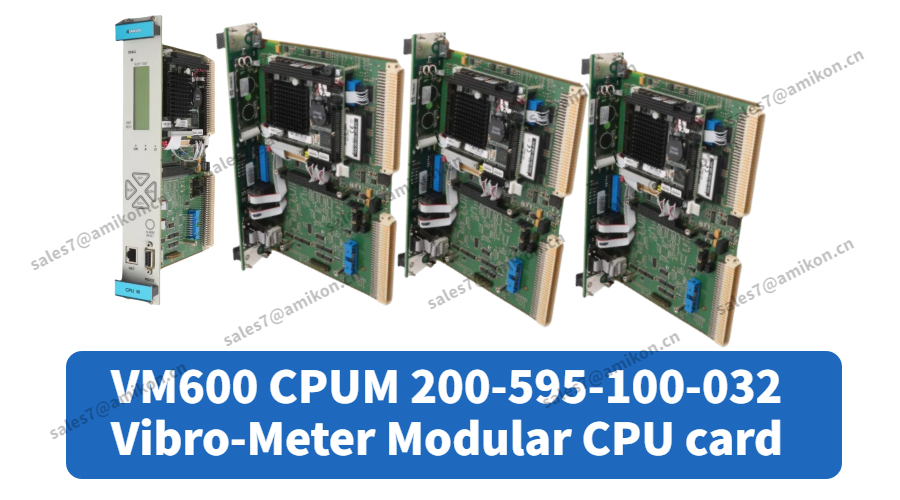

VM600 CPUM 200-595-100-032 Vibro-Meter Modular CPU card

December 18,2024

VM600 CPUM 200-595-100-032 Vibro-Meter Modular CPU card

Introduction to the VM600 CPUM 200-595-100-032

The VM600 CPUM 200-595-100-032 is an advanced system controller designed to optimize the management and functionality of a flexible and robust system infrastructure. As a core component of the FSC system, the Central Part (CP) is directly connected to the I/O level through vertical bus driver (VBD) modules. This setup ensures seamless communication between modules and facilitates the effective distribution of tasks across the system. With the integration of multiple vertical and horizontal bus drivers, the VM600 CPUM stands out as a reliable solution for enhanced system performance, offering both flexibility and scalability.

Key Features of the VM600 CPUM 200-595-100-032
The VM600 CPUM 200-595-100-032 is not just a controller—it’s a comprehensive solution designed to meet the diverse needs of high-performance systems. Below are some of the standout features:
Vertical Bus Driver (VBD) Modules for Efficient Communication
The VM600 CPUM 200-595-100-032 integrates the Vertical Bus Driver (VBD) modules into its architecture, allowing for efficient communication between various components within the FSC system. A maximum of 14 vertical bus drivers can be installed within the Central Part, with each bus driver supporting up to 10 horizontal bus drivers (HBD). This structure enables the smooth transfer of data and signals between the central part and the I/O rack. Furthermore, the maximum distance between a VBD and the I/O rack is 5 meters (16.4 feet), providing the flexibility to design systems with various configurations.

One of the key advantages of this setup is that it allows the electronic components of the VBD to be exchanged easily without the need to disconnect the vertical bus flatcable, ensuring minimal downtime during maintenance or upgrades.

Versatile Communication and Configuration Options
The VM600 CPUM comes equipped with multiple communication capabilities, ensuring compatibility with different systems and protocols. It supports both Modbus RTU/TCP and PROFINET, allowing for versatile integration with existing infrastructure. This makes it a highly adaptable solution for various industrial environments.

In addition to communication protocols, the system provides a front-panel display that allows users to monitor the system's outputs and alarm limits. This visual interface enhances the user experience by enabling quick checks and adjustments to ensure that the system operates within safe parameters.

“One-Shot” Configuration Management
The VM600 CPUM also offers a “One-Shot” configuration management feature, which is particularly beneficial for managing protection cards such as MPC4 and AMC8. This feature allows for a simplified configuration process, making it easier for operators to set up and maintain the system. The “One-Shot” functionality can be utilized through an Ethernet or RS-232 serial connection to a computer running the VM600 MPSx software, facilitating streamlined setup and control.

System Security and Alarm Management
Security and safety are paramount in any system, and the VM600 CPUM 200-595-100-032 excels in this area. The system includes a common alarm reset (AR) feature, which applies to both the protection cards and the VM600 MPS rack (CPUM). This simplifies the process of resetting alarms and enhances the system’s overall security by ensuring that all components are properly monitored and controlled.

Moreover, the VM600 MPSx software provides valuable event logs for both system events and measurement events. These logs serve as an essential tool for identifying potential issues and diagnosing problems quickly. With comprehensive diagnostic capabilities, users can address issues promptly and maintain the reliability of the system.

How the VM600 CPUM 200-595-100-032 Enhances System Performance
The VM600 CPUM is designed to elevate the performance and reliability of complex systems. The fault-tolerant architecture of the FSC system, which includes redundant modules like the TMR (Triple Modular Redundancy) processors and interfaces, helps minimize downtime and maximize operational efficiency.

Efficient Data Flow and Communication
Thanks to the vertical bus driver modules and high-bandwidth communication channels, the VM600 CPUM ensures rapid data flow and efficient communication between components. The ability to install multiple vertical bus drivers per Central Part and the support for up to 10 horizontal bus drivers enables seamless interaction between numerous devices, supporting extensive system expansion.

Scalability and Flexibility
One of the most notable advantages of the VM600 CPUM system is its scalability. The flexible design allows users to add additional vertical bus drivers and horizontal bus driver modules, making it easier to expand the system as requirements grow. Whether you are dealing with a small-scale setup or a large, complex system, the VM600 CPUM provides the scalability needed to accommodate your needs.

Simplified Maintenance and Updates
With its easy-to-access configuration options and user-friendly interface, the VM600 CPUM simplifies system maintenance and updates. The “One-Shot” configuration for protection cards, coupled with the front-panel display for system monitoring, allows for quick adjustments without the need for extensive downtime. This makes the system ideal for environments where continuous operation is critical.

Conclusion

The VM600 CPUM 200-595-100-032 is a highly efficient and flexible system controller designed to meet the demands of modern infrastructure. With advanced features like the Vertical Bus Driver (VBD) modules, “One-Shot” configuration management, and robust alarm management, the VM600 CPUM ensures that systems operate at optimal performance with minimal downtime. Whether you need to scale your system, improve communication, or enhance security, the VM600 CPUM provides the tools to ensure your system runs smoothly and efficiently. Its versatility, fault tolerance, and ease of use make it a standout choice for users looking for a reliable and adaptable solution.
