Technical specifications for 1336S-MCB-SP1

Part Number/Catalog No.	1336F-MCB-SP1G
Product Line	1336 PLUS II
Part Type	Circuit Board
Control Function	Main Control
Alternative Part Number	74100-071-51
Product Lifecycle Status*	Discontinued/Obsolete

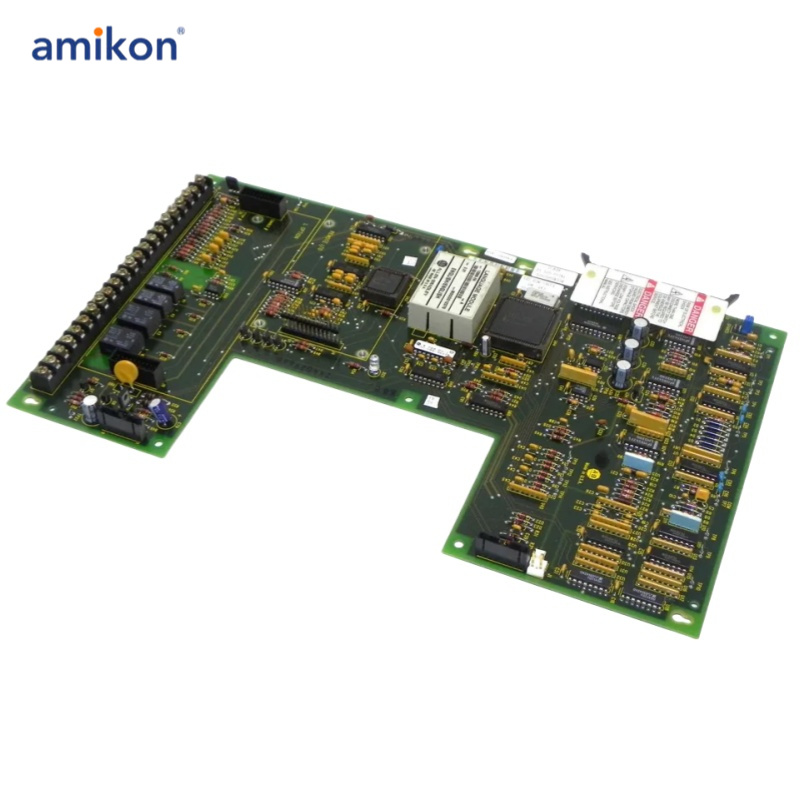

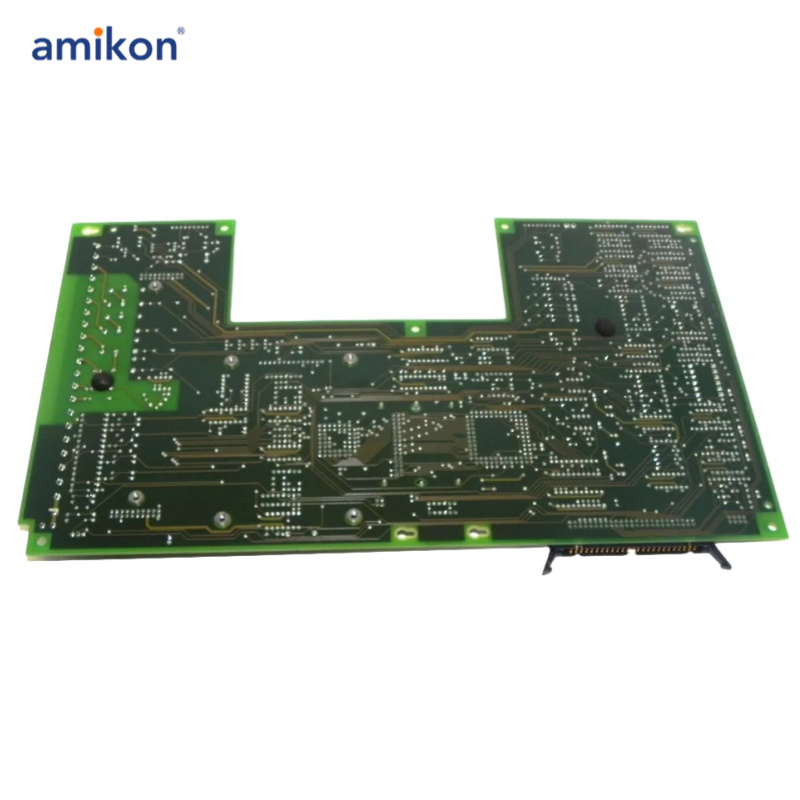

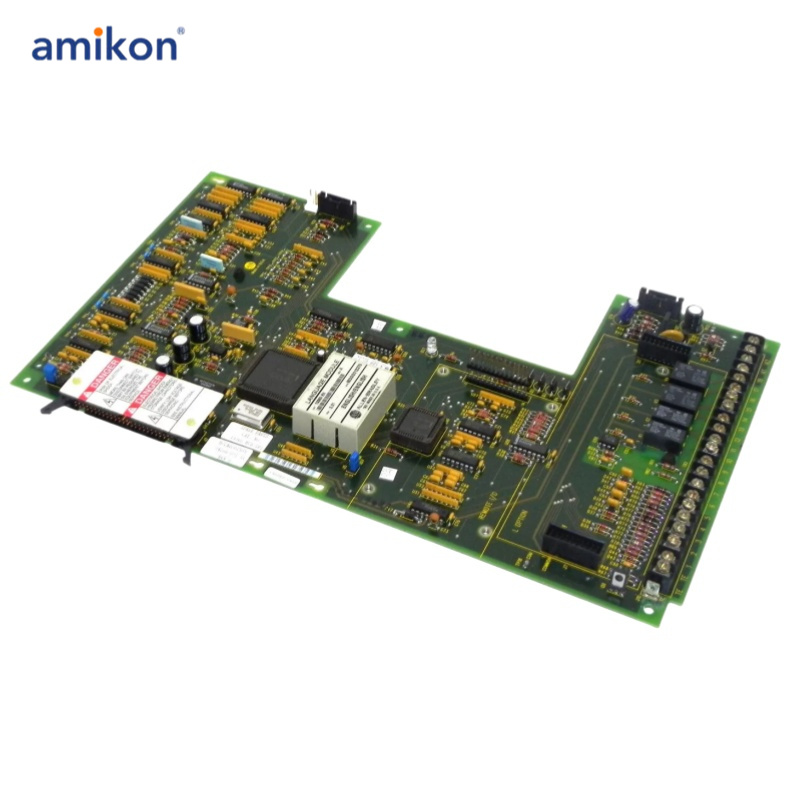

The 1336S-MCB-SP1 is a critical component used in adjustable frequency AC drives, specifically in the Plus drive series, which offers Sensorless Vector and Volts per Hertz control functionality.

This component is no longer in active production, and the entire 1336S drive family has also been discontinued. It is now available only as a spare part with an assembly level designation of 1, indicating that it is a major assembly product. Identified by the troubleshooting symbol MAIN CTL, it is compatible exclusively with drives in the Frame B-H category.

The 1336S-MCB-SP1 serves as a replacement for the Main Control Board in 1336 Plus drives, which are initially delivered with an MCB pre-installed. Its primary function is to provide an interface for control and signal wiring via the TB2 terminal, located at the bottom of the board.

The board supports multiple connections, including a potentiometer input terminal, Analog Input (0-10 VDC and 4-20 mA), pulse input, Form A contact outputs (CR1 and CR2), and Form C contact outputs (CR3 and CR4 relays). Additionally, it features a TE terminal for True Earth Shield Termination and integrates a 10-bit Analog-to-Digital Converter for analog input and a 12-bit Digital-to-Analog Converter for analog output.

The board is equipped with pre-installed jumper terminals for add-on components, such as a Control Interface Board, Communication Adapter, and Snap-In Human Interface Module. It also offers diagnostic capabilities for enhanced functionality. The 1336S-MCB-SP1 operates with a specific circuit board voltage rating, delivering essential control horsepower. It is housed in a 74100-071-51 type enclosure and remains an indispensable spare part for compatible AC drives.
