150-F108NBDD Smart Motor Controller

Category: Drives
Product Line: SMC-Flex
Part Number: 150-F108NBDD
Product Family: SMC Flex Smart Motor Controller
Control Voltage: 100…240V AC (5…480 A units)
Line Voltage: 200…460V AC, 3-Phase, 50/60 Hz
Input Line Voltage: 200–460 VAC, 3-Phase, 50/60 Hz
Maximum Output Current: 108 A
Maximum Output Power: 75 HP
Controller Rating: 108 A, 75 Horsepower (HP) at 460 VAC

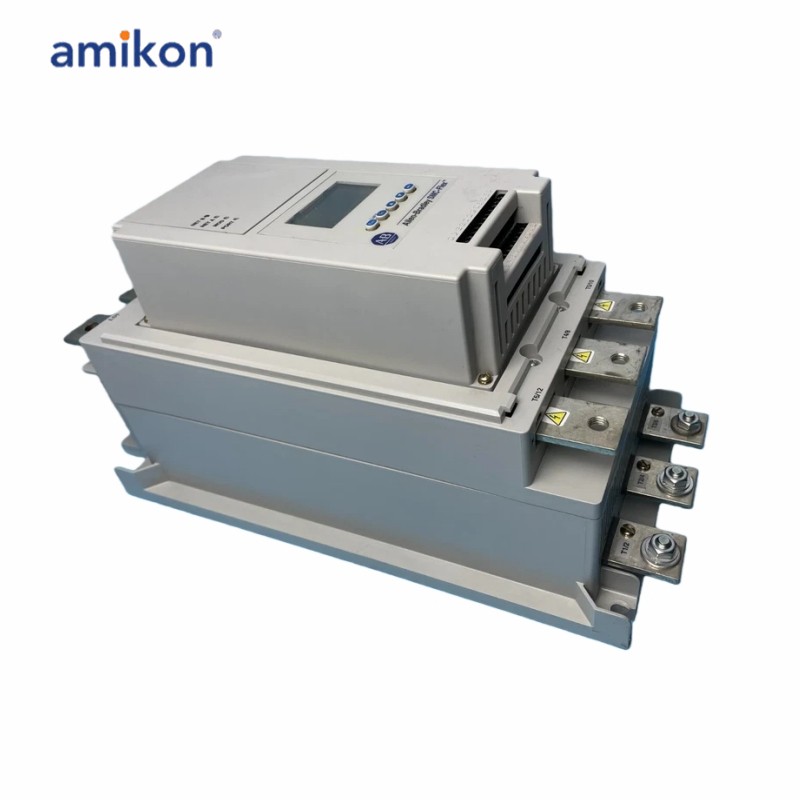

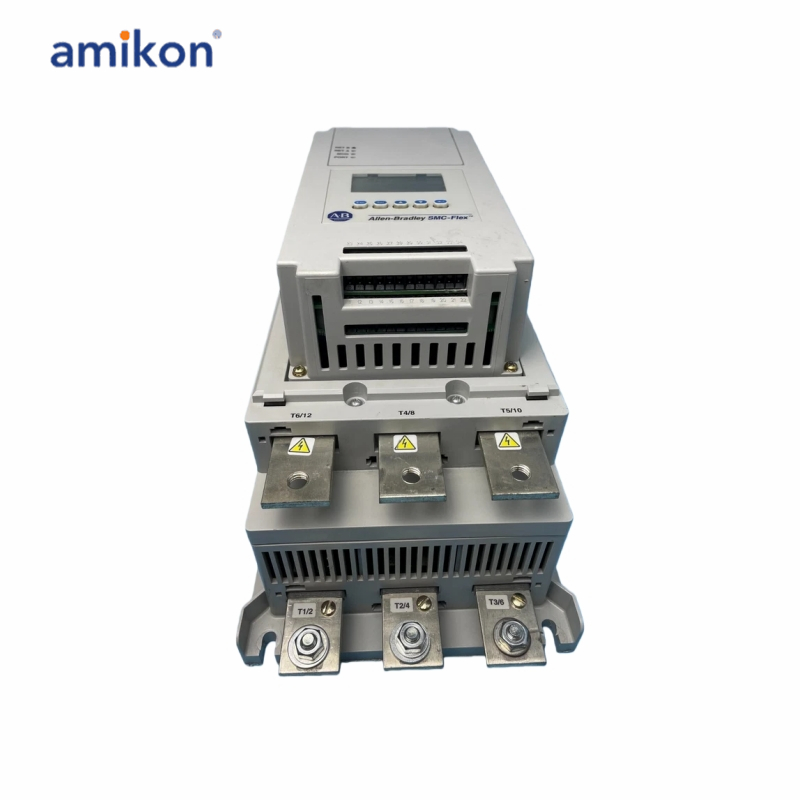

The 150-F108NBDD is a SMC Flex Smart Motor Controller that is manufactured . This device comes with line input voltage requirements of 200-460VAC, 3-Phase, 50 / 60 Hz and control Voltage range of 100-240V AC (5-480 A units). This drive provides a maximum continuous output current of 108 Amperes power of 75 HP at 460VAC rated voltage.

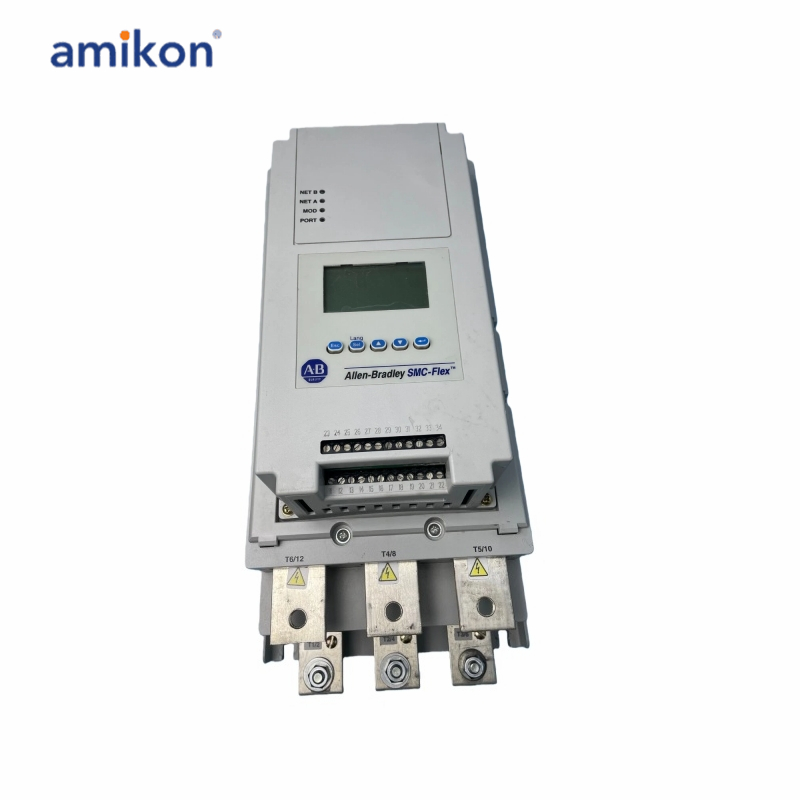

The 150-F108NBDD comes with an open-type enclosure. It is also provided with built-in LCD backlight with front panel buttons, allowing local controller configuration and operation. This Human Interface Module (HIM) also permits monitoring of the drive’s operations status as well as aid in troubleshooting in the event of device malfunction.

Frequently asked questions：

Q1: What is the maximum output current of the 150-F108NBDD Smart Motor Controller?
A1: The 150-F108NBDD has a maximum output current of 108 A.
Q2: What is the maximum motor power rating for the 150-F108NBDD?
A2: It supports motors up to 75 HP.
Q3: What line voltage does the 150-F108NBDD require?
A3: The controller operates on 200–460 V AC, 3-phase, at 50/60 Hz.
Q4: What control voltage is needed for the 150-F108NBDD?
A4: The control voltage range is 100–240 V AC for units rated 5–480 A.

Product Applications
Water & Wastewater Treatment
Mining & Cement Industry
Oil & Gas Facilities
Power Generation

Key Features and Operating Modes
Built-in Bypass: Features an internal SCR/Run bypass contactor to minimize heat generation once the motor reaches full speed.
Control Modes: Supports multiple starting and stopping methods, including Soft Start, Current Limit Start, Smart Motor Braking, Pump Start, and Soft Stop.
Interface: Equipped with a built-in LCD backlight and keypad for local configuration, monitoring, and troubleshooting.
Metering: Tracks real-time data such as Amps, Volts, kW, kWh, and power factor.
