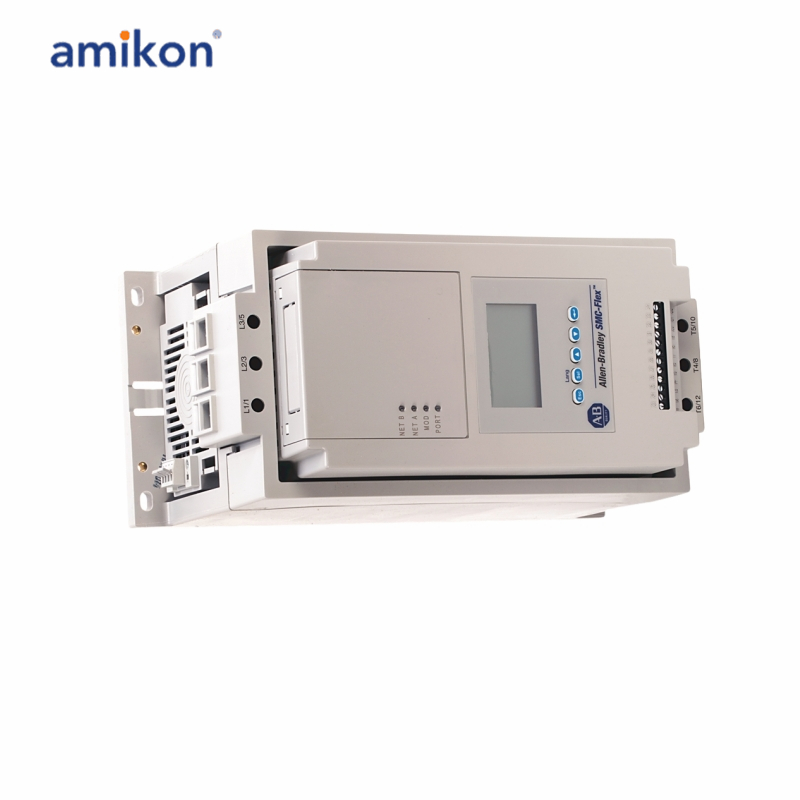

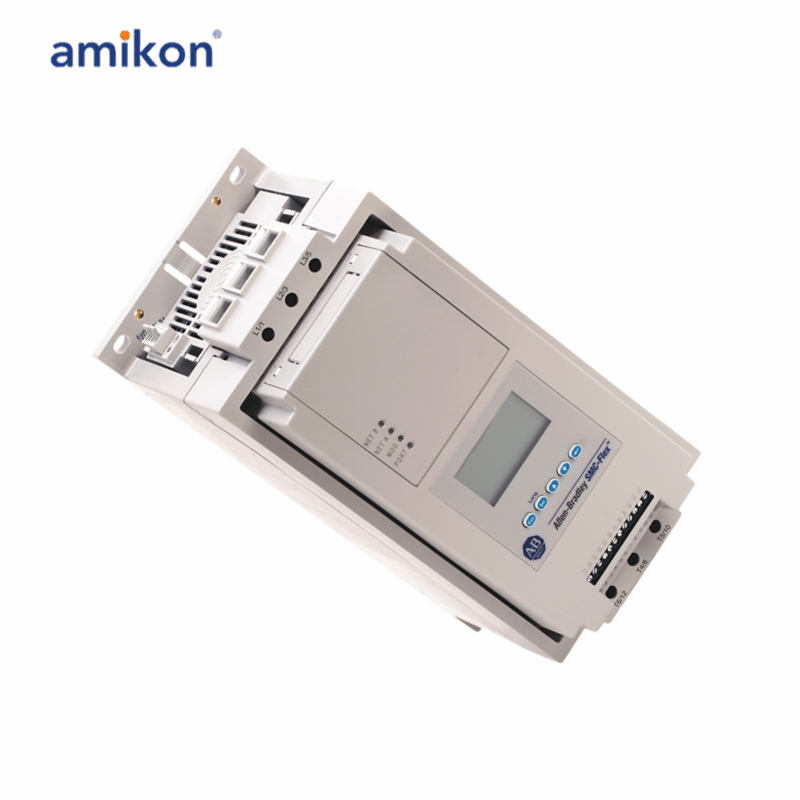

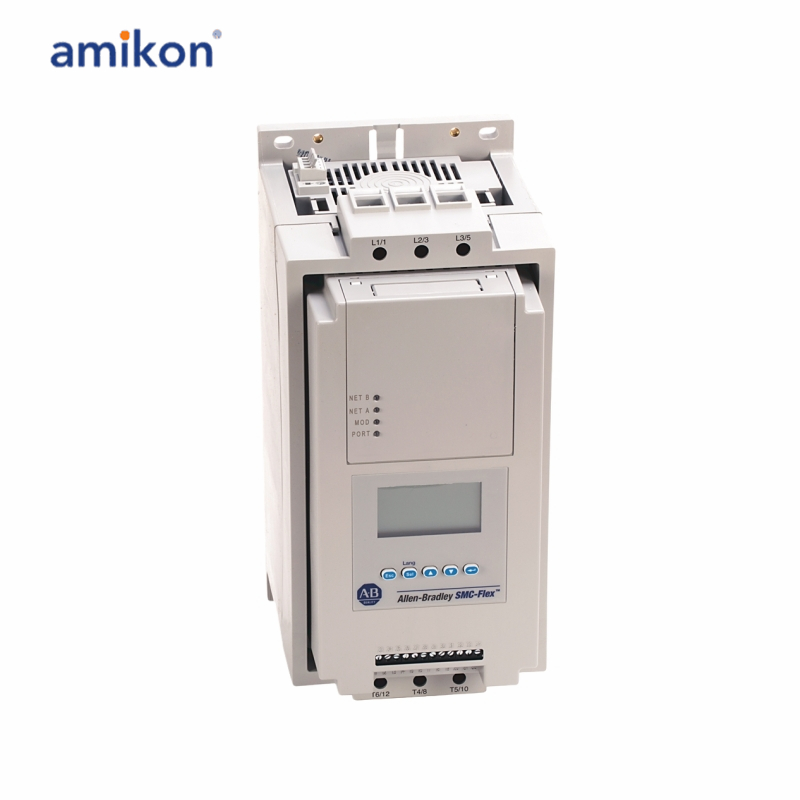

150-F135NCRD Solid State Controller

The 150-F135NCRD Solid State Controller is a smart motor controller (soft starter) from the SMC-Flex Bulletin 150-F series, manufactured . It is designed to provide smooth acceleration and deceleration of three-phase AC motors, helping to reduce inrush current, mechanical stress, and wear on motors and driven equipment.
Rated at 135 A, this controller is ideal for medium-to-large industrial motor applications such as pumps, fans, compressors, conveyors, mixers, and HVAC systems. The 150-F135NCRD features solid-state SCR technology, an open enclosure design for panel mounting, and an internal bypass contactor that minimizes heat and power loss once the motor reaches full speed.

Frequently asked questions：

Q1: What is the 150-F135NCRD?
A1: The 150-F135NCRD is a solid state motor controller designed for precise control of three-phase motors up to 100 HP.
Q2: What is the 150-F135NCRD controller’s current rating?
A2: The 150-F135NCRD controller is rated for 135 A.
Q3: What motor power can it handle?
A3: It supports motors up to 100 HP at 460 V AC.
Q4: What is the 150-F135NCRD input line voltage?
A4: The controller operates on 200–460 V AC, three-phase, 50/60 Hz power systems.
Q5: What control voltage is required?
A5: The 150-F135NCRD control circuit requires 100–240 V AC.

Product Applications

Heavy Industry and Mining: Used for large belt conveyors to address mechanical shock during heavy-load startup.
Municipal and Water Supply: Used for pumps and fans to reduce starting current and water hammer effect.
Oil, Chemicals and Manufacturing: Used for compressors and mixers to provide smooth and controllable motor acceleration.
Textiles and Food Processing: Require intelligent motor control systems with high reliability and low failure rate.

Core technical features
Rated parameters: The maximum continuous output current is 135 A, and the power can reach 100 HP at a 460V AC voltage.
Control mode: Supports various modes such as soft start, full voltage start, current limit start, intelligent motor brake, kickstart (sudden start), and slow operation.
Protection functions: Built-in electronic overload protection, which can detect faults such as underload, stall, jam, voltage imbalance, and phase loss.
