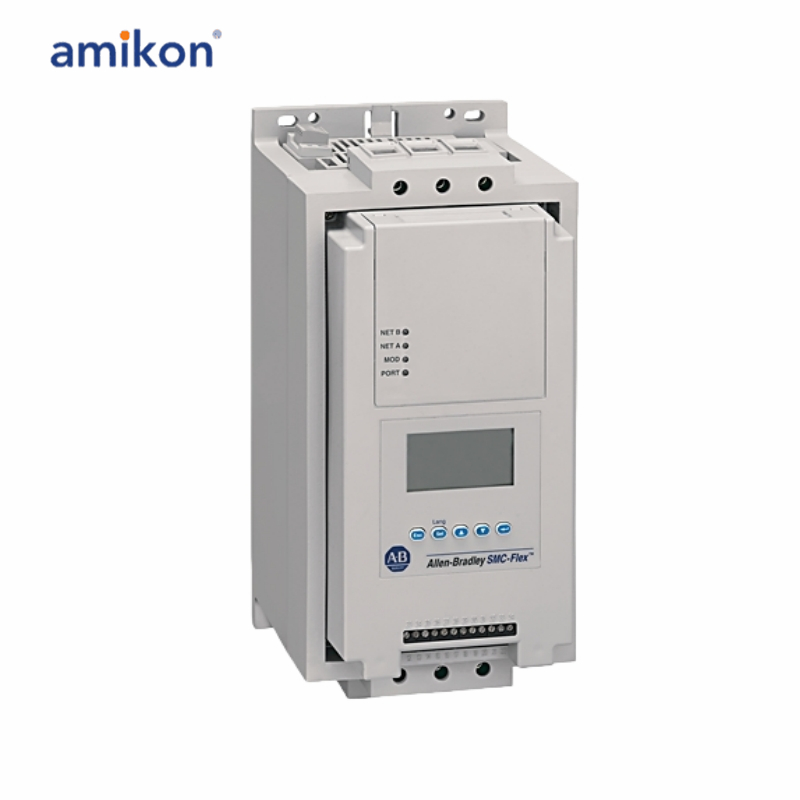

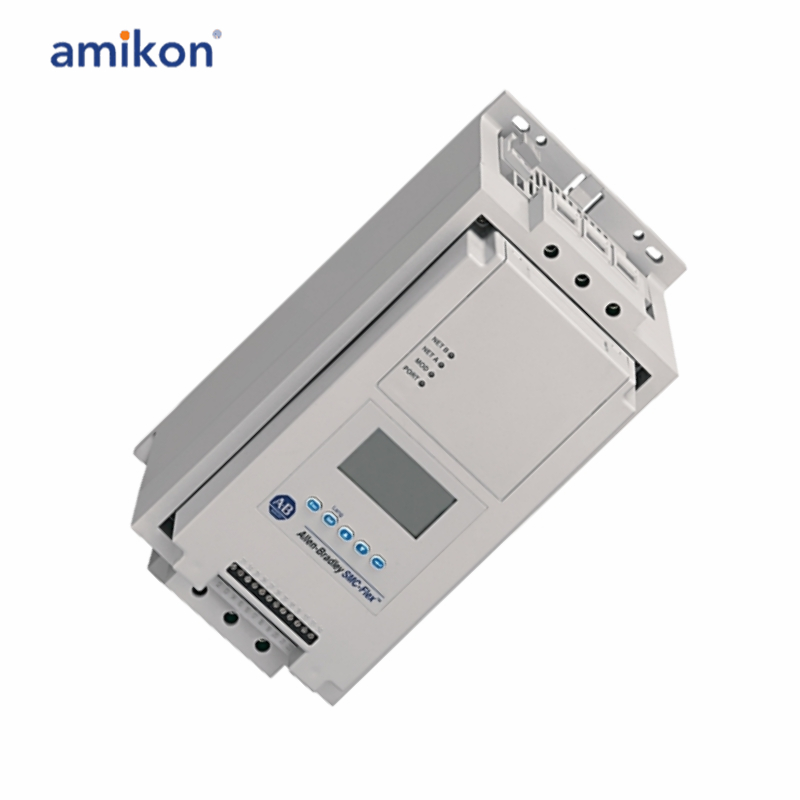

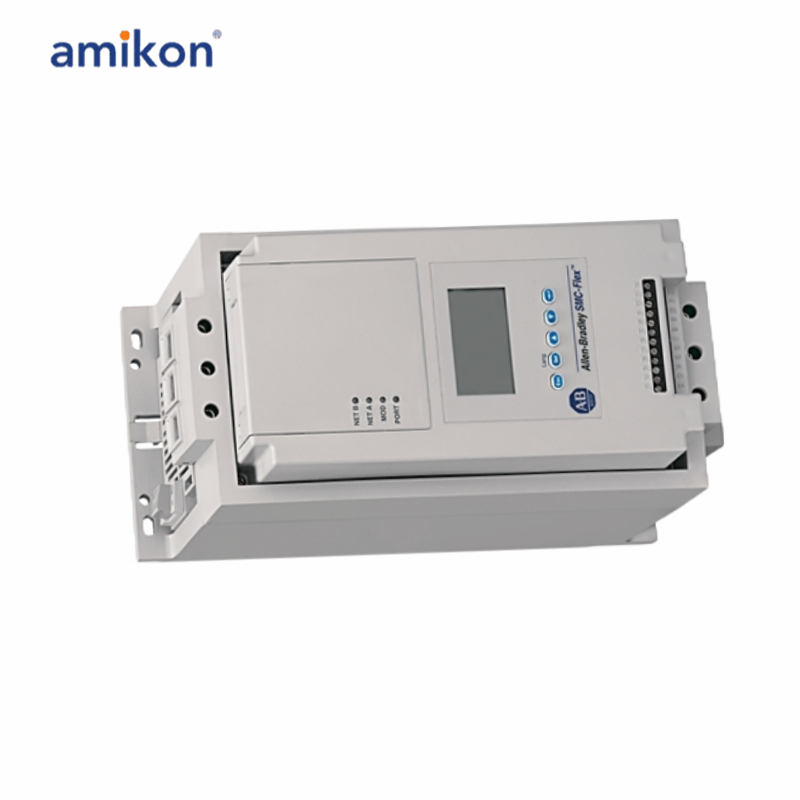

150-F60NBRB Smart Motor Controller

Model Number:150-F60NBRB
Description: Smart Motor Controller
Controller Rating:60 A 10-40Hp @ 460V AC
Control Voltage:24V AC/DC
Product Family:SMC Flex
Enclosure Type:Open
Input Line Voltage:200..480V AC, 3-Phase, 50/60Hz
Rated Current: 60 Amps
Motor Power Rating: 40 HP
Input Line Voltage: 200–460 VAC
Phase: 3-Phase
Frequency: 50/60 Hz

The 150-F60NBRB is a SMC-Flex Smart Motor Controller designed to provide reliable, flexible, and efficient motor starting solutions for industrial applications. Part of the SMC-Flex series, this controller offers advanced soft-start and soft-stop features that help reduce mechanical stress, extend equipment lifespan, and improve energy efficiency.

Frequently asked questions：

Q1: What is the rated current of the 150-F60NBRB Smart Motor Controller?
A1: The 150-F60NBRB is rated for 60 Amps.
Q2: What motor power rating does the 150-F60NBRB support?
A2: It supports motors up to 40 HP at 460 V AC.
Q3: What control voltage is required for the 150-F60NBRB?
A3: The controller operates with a 24 V AC/DC control voltage.
Q4: What product family does the 150-F60NBRB belong to?
A4: The controller is part of the SMC Flex product family.

Product Applications
Water & Wastewater Facilities: Uses the Pump Control feature to eliminate "water hammer" surges during centrifugal pump startup and shutdown.
Material Handling: Employed on conveyor belts to provide smooth acceleration, preventing belt slippage or damage to fragile materials.
Mining & Aggregates: Used in rock quarries for large motors on crushers and mills to manage high-torque starts and provide jam detection.
Manufacturing Production Lines: Frequently integrated into production systems for machinery requiring controlled positioning or frequent starts/stops

Key Features and Functions
Start/Stop Modes: Includes seven built-in start modes such as soft start, current limit, full voltage, and linear speed ramp. It also supports soft stopping to reduce mechanical stress.
Pump Control Option: The "B" suffix in the part number specifically indicates the inclusion of the Pump Control option, which helps reduce fluid surges (water hammer) in centrifugal pumping systems.
Integrated Diagnostics: Features a backlit LCD display and keypad for local configuration without needing external software.
Protection: Provides built-in motor overload protection (Trip Classes 10, 15, 20, and 30), stall protection, and phase loss/unbalance detection.
Cooling Requirements: Although control is 24V, a separate 120V or 240V single-phase power source is required for the internal fan operation.
