Product Line
|
SMC-Flex
|
|
Part Number
|
150-F85NBDD
|
|
Weight
|
5.44 kg
|
|
Description
|
Low Voltage Solid State Controller
|
|
Power Rating
|
60 HP
|
|
Line Input Voltage
|
460 V AC
|
|
Current Rating
|
85 A
|
|
Control Voltage
|
200–230 V AC
|
|
Display
|
3-line × 16-character LCD display
|
|
Keypad
|
5-button front panel keypad
|
|
Auxiliary Contacts
|
4 fully programmable (N.O., N.C.)
|
|
Communication
|
Built-in DPI communication capability
|
|
Optional Control
|
Braking control
|

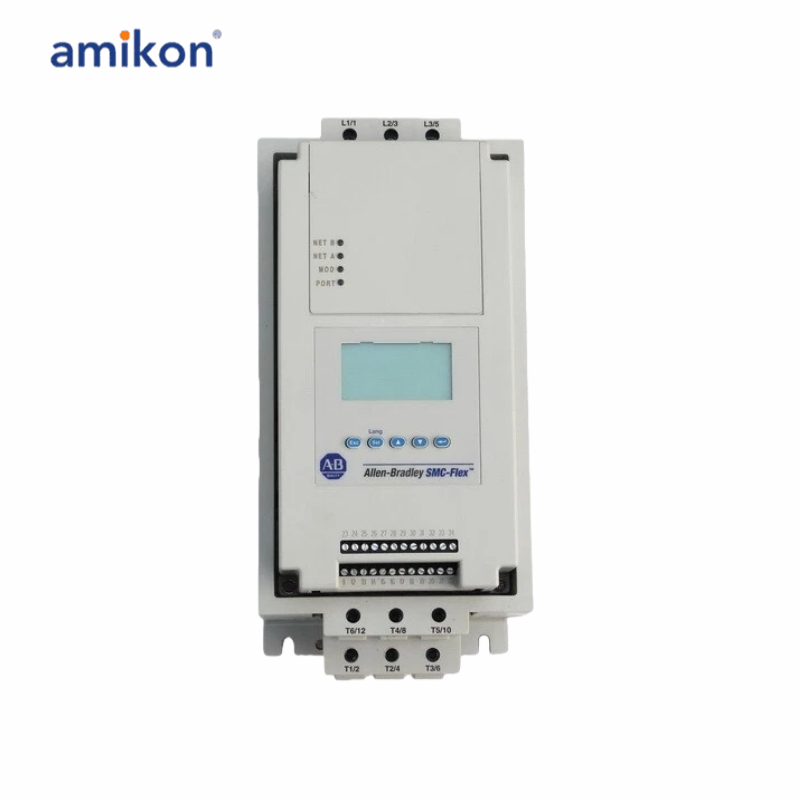

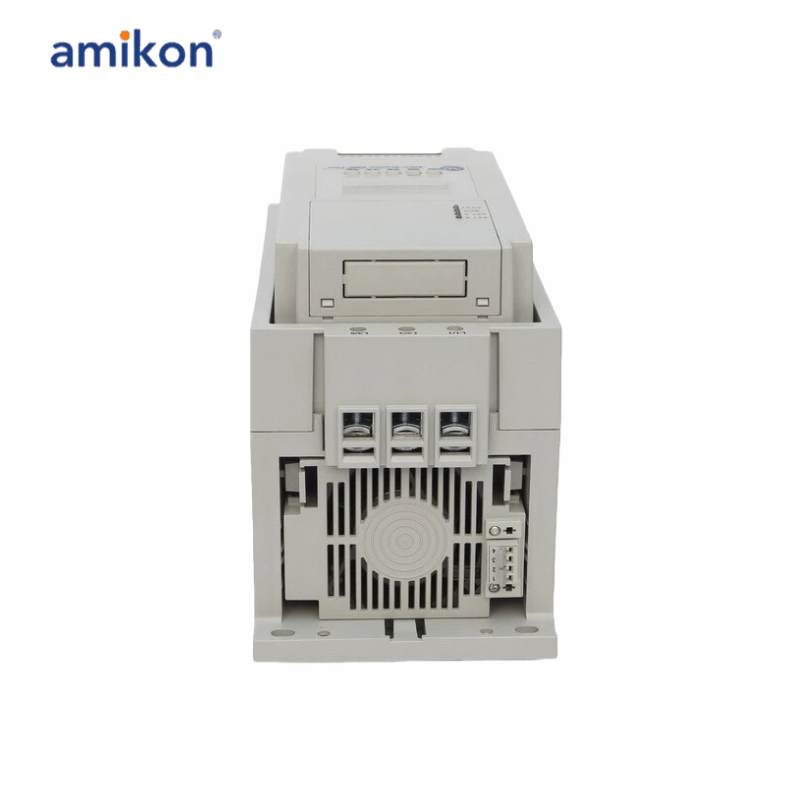

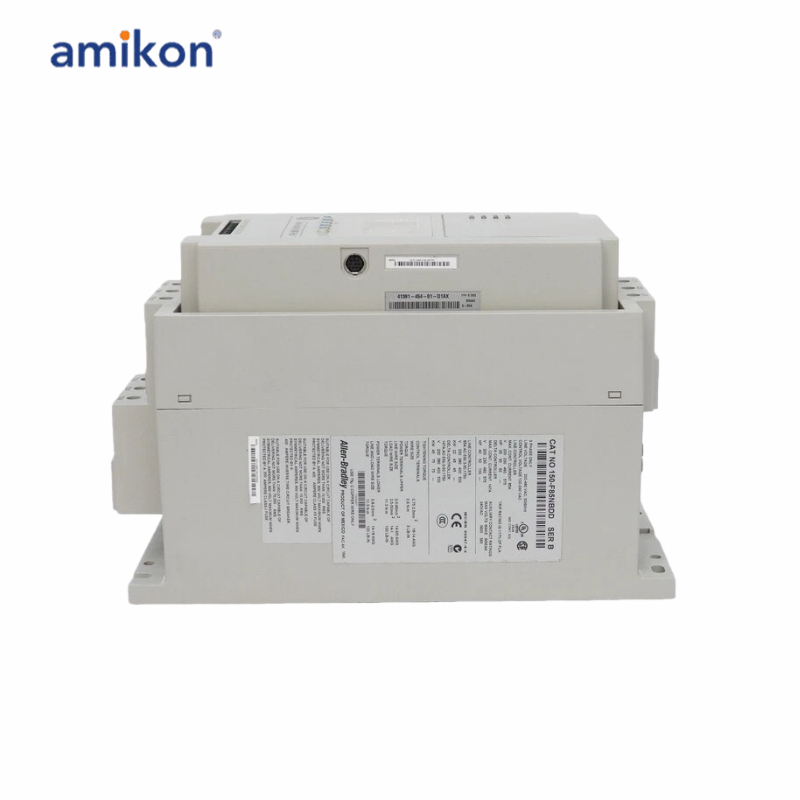

The 150-F85NBDD Smart Motor Controller is a type of soft motor starter from the SMC Flex smart motor controller family that is designed to give microprocessor-controlled starting for standard 3-phase industrial induction motors. Standard features for this 150-F85NBDD controller include a built-in SCR bypass that allows for smooth operation after activating the starting algorithm, built-in protective features like underload protection, jam detection, stall protection, under load protection, over-voltage protection, under-voltage protection, voltage unbalance protection, and electronic motor overload protection, and flexible communication via an integral DPI communication interface. The 150-F85NBDD Controller has 8 standard operation modes and optional smart motor braking control which provides enhanced braking for applications requiring faster stopping than the normal “coast to rest” stopping mode.
Frequently asked questions：
Q1: What is the 150-F85NBDD?
A1: The 150-F85NBDD is an SMC Flex Smart Motor Controller designed to start, stop, and protect three-phase motors in industrial applications.
Q2: What is the power rating of this motor controller?
A2: It supports motors up to 60 HP at 460 V AC.
Q3: What is the 150-F85NBDD line input voltage requirement?
A3: The 150-F85NBDD controller operates with a line input voltage of 460 V AC, suitable for standard industrial power systems.
Q4: What is the 150-F85NBDD current rating?
A4: The current rating is 85 A, enabling it to handle medium-sized motor loads.
Q5: What is the 150-F85NBDD control voltage?
A5: The device uses a control voltage of 200–230 V AC for its internal control circuits.
Product Applications
Water treatment and pump systems: Used for various centrifugal pumps, this system reduces water hammer effects through the dedicated "pump control" function, protecting the pipeline system.
Textile and mechanical manufacturing: Applied to belt conveyors, textile equipment, etc., to prevent excessive instantaneous torque during startup that causes belt slipping or breakage.
Metallurgy and mining: Used in crushers, ball mills, and conveying equipment, to handle high-load startups and provide overload and stall protection in harsh environments.
Food and health supplement processing: Controls motors on mixers, centrifuges, and packaging lines to ensure smooth transitions in the production process.
Mining and energy power: Applied to large fans, air compressors, and heavy machinery for transporting ore.
Technical advantages support
Protection functions: Provide overcurrent protection, stall detection and overload protection to prevent damage to the motor windings.
Multiple startup modes: Support soft start, full voltage start, jump start and current-limiting start, suitable for different load requirements.
System integration: Equipped with an LCD display and supports multiple industrial communication protocols (such as EtherNet/IP), facilitating integration into the control system for remote monitoring.
