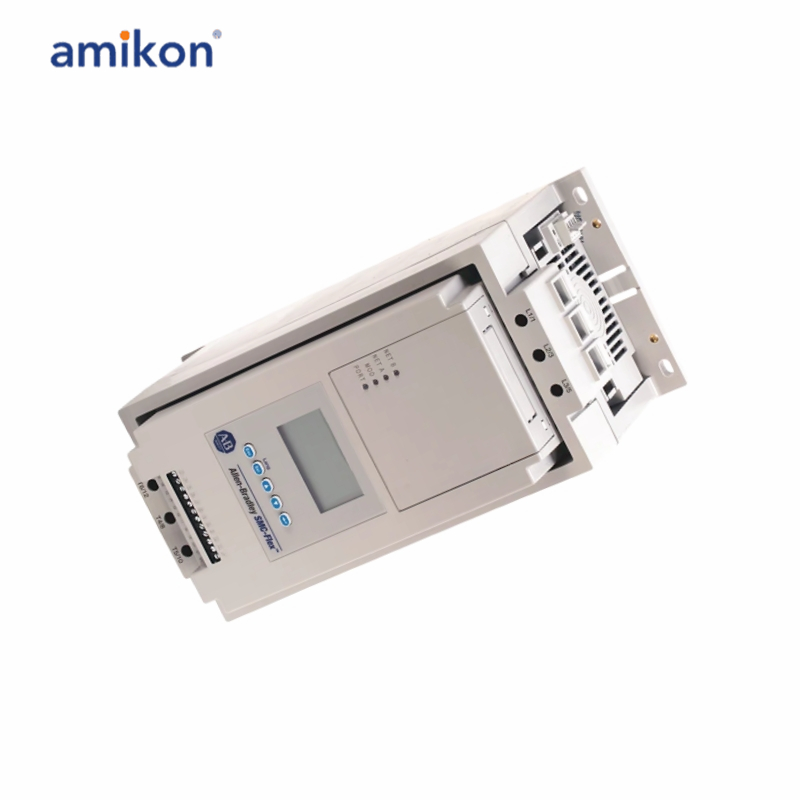

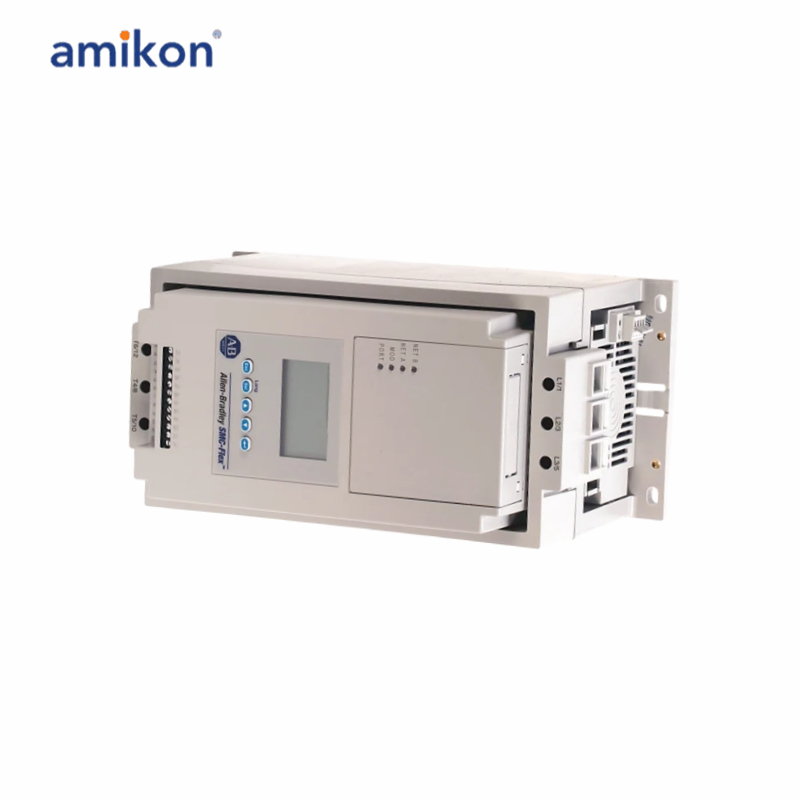

150-F970NBA Controller

The 150-F970NBA is an SMC-flex non-combination smart motor controller . The controller has an integral bypass feature which reduces the heat generated. Also, the 150-F970NBA current and voltage protection mechanisms allow the controller to provide high levels of troubleshooting and monitoring functions. For programming, the 150-F970NBA has an LCD display which is multilingual. The 150-F970NBA operates with an input voltage ranging from 200 to 480 Volts AC and has a control voltage of between 230 Volts and 240 Volts AC. The 150-F970NBA belongs to the SMC-Flex, bulletin 150-F series. The 150-F970NBA SMC-flex smart motor controller has a rated current of 970, 851, and 709 Amperes under light, medium, and heavy-duty operations, respectively. Additionally, the 150-F970NBA measures 1041.1 by 596.9 by 346.2 millimeters. The International Protection (IP) rating for the 150-F970NBA smart motor controller is IP00. The controller is used in applications with a maximum horsepower rating of 800 HP and a current rating of between 323 and 970 amperes. The controller is used with line or delta connected motors and has an open style enclosure type.

Frequently asked questions：

Q1: What is the 150-F970NBA controller?
A1: The 150-F970NBA is a high-capacity SMC Flex motor controller designed to provide soft starting, stopping, and protection for large industrial motors.
Q2: What is the 150-F970NBA rated current and motor capacity?
A2: The controller has a rated current of 970 A and is suitable for motors up to 800 HP at 460 VAC.
Q3: What input line voltage does this 150-F970NBA controller support?
A3: It supports an input line voltage range of 200–460 V AC, three-phase.
Q4: What line frequency is compatible with this 150-F970NBA controller?
A4: The 150-F970NBA controller operates at 50/60 Hz, making it compatible with most industrial power systems.
Q5: What control voltage is required for this model?
A5: Units in the 625–1250 A range, including this model, require 230/240 V AC control voltage.

Product Applications
Pumping Systems: Ideal for centrifugal pumps, using specialized Pump Control modes to eliminate fluid surges (water hammer) during starting and stopping.
Material Handling: Used in large conveyors and transport systems to ensure smooth acceleration, preventing belt damage or spilled loads.
Air Handling: Controls large fans and compressors, where controlled torque prevents mechanical wear on belts and couplings.
Positioning & Alignment: Features like Accu-Stop and Slow Speed with Braking make it suitable for applications requiring precise motor stopping or low-speed movement.
Heavy Processing: Often deployed in sectors like food and beverage, pharmaceuticals, packaging, and rock quarries where reliability in varying conditions is critical.

Core Performance Features
Flexible Start/Stop Modes: Includes 17 different modes, such as Soft Start, Current Limit, and Linear Speed.
Smart Motor Braking (SMB): Provides integrated motor braking to stop high-inertia loads faster than a standard coast-to-rest, without needing external resistors or contactors.
Integrated Protection: Features built-in electronic motor overload protection, jam detection, and stall protection to prevent mechanical damage and winding insulation breakdown.
Compact Design: Uses an internal bypass to bridge SCRs once the motor reaches full speed, which minimizes heat generation and allows for a smaller physical footprint in control panels.
