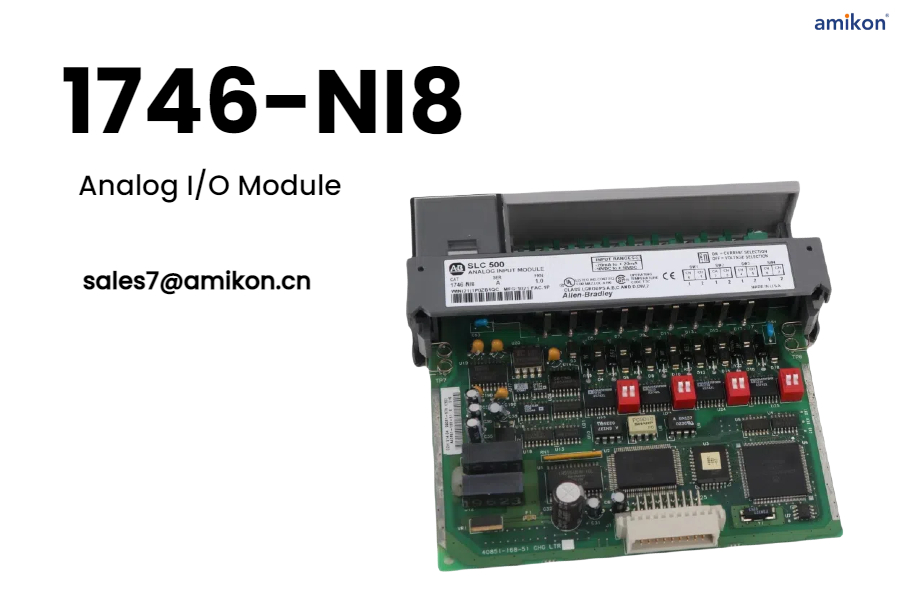

1746-NI8 Analog I/O Module

February 10,2025

Introduction to the 1746-NI8 Analog I/O Module
The 1746-NI8 is an advanced 8-channel analog I/O module designed for applications where accurate and fast analog signal conversion is essential. Known for its high precision, reliability, and flexibility, this module plays a crucial role in ensuring optimal performance in time-sensitive industrial processes. With the ability to handle multiple input types and support fast conversion rates, the 1746-NI8 proves to be a valuable asset in various automation environments.

Key Specifications of the 1746-NI8 Module
The 1746-NI8 offers an array of features that make it a powerful solution for many industrial applications. The module supports an extensive range of input signals, from voltage to current, and provides robust diagnostics. Here are some of its key specifications:

Backplane Current Consumption: 200mA at 5V DC and 100mA at 24V DC
Maximum Power Consumption: 1 Watt at 5V DC and 2.4 Watts at 24V DC
Isolation Voltage: 750V DC and 530V AC with a 60-second test duration
Common-Mode Voltage Range: -10 to 10 Volts, with a maximum of 15 Volts between terminals

Input Signal Formats: Voltage (10V DC, 1–5V DC, 0–5V DC, 0–10V DC) and Current (0–20 mA, 4–20 mA, +/-20 mA)

Input and Output Configurations

The 1746-NI8 is versatile in terms of input and output configurations, making it adaptable to various control systems and industrial processes. It is compatible with SLC 500 Fixed and modular hardware-style controllers and offers the flexibility to work in different input modes. The module allows:
Voltage or Current Input Channels: Choose from a variety of signal types based on the requirements of your application.
Signal Formats: The input signals can be represented in Engineering Units, Scaled-for-PID, Proportional Counts, and more.

Single-Ended or Differential Input Configurations: The module supports both wiring configurations to cater to specific application needs.

Enhanced Diagnostics and Durability
The 1746-NI8 module is designed with diagnostics and long-lasting performance in mind. It includes 9 green LED status indicators that make it easier to monitor the system’s health and detect issues before they escalate. Furthermore, the module has an impressive isolation rating of 750V DC, ensuring reliable operation even in harsh electrical environments. The module also meets the Division 2 hazardous environment standard, making it suitable for industrial settings with potential exposure to explosive gases.

Installation and Compatibility
One of the notable features of the 1746-NI8 is its ease of installation and compatibility with a wide range of controllers and systems. The module’s removable terminal block simplifies wiring and allows for easy replacement without the need for rewiring. Additionally, it supports embedded DIP switches for easy input signal type selection, streamlining the setup process. It’s compatible with the SLC 500 series controllers, including SLC 5/01, 5/02, 5/03, 5/04, and 5/05, ensuring seamless integration into existing setups.

Conclusion

The 1746-NI8 Analog I/O module is a robust and versatile solution for applications requiring fast, accurate analog signal conversion. With its wide range of input signal types, enhanced diagnostics, and compatibility with various SLC 500 controllers, this module is an excellent choice for industries needing reliable and high-performance I/O modules. Whether you're monitoring centrifugal air compressors, small pumps, motors, or other machinery, the 1746-NI8 provides the flexibility and precision needed to ensure smooth operations.
