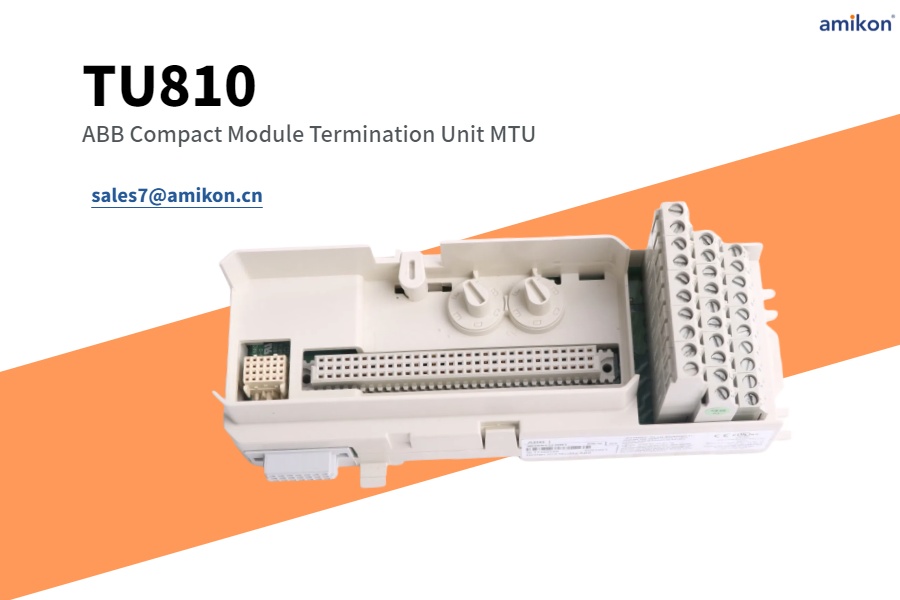

TU810 ABB Compact Module Termination Unit MTU

February 11,2025

Introduction to the TU810/TU810V1 Termination Unit
The TU810/TU810V1 is a versatile and efficient termination unit designed for seamless integration with S800 I/O systems. It offers a 16-channel connection with 50V capacity, providing a compact and reliable solution for field wiring connections. As a passive unit, the TU810/TU810V1 is used to connect the field wiring to the I/O modules and plays a critical role in the functioning of the ModuleBus.

Key Features of the TU810/TU810V1 Termination Unit
One of the standout features of the TU810/TU810V1 is its compact installation capability. The unit uses a one-wire connection system that simplifies wiring while maintaining robust functionality. With 16 channels for field signals and power connections, this termination unit can accommodate a wide range of I/O requirements, ensuring flexibility in industrial automation applications.

Additionally, the TU810/TU810V1 is designed for easy DIN rail mounting, making it convenient to integrate into various industrial setups. The inclusion of a latching device ensures that the unit remains securely grounded throughout its operation, enhancing the safety and reliability of the system.

How the TU810/TU810V1 Optimizes I/O Connections
The TU810/TU810V1 serves as the central hub for ModuleBus distribution. It efficiently routes signals between the I/O module and other components, enabling smooth communication across the system. Moreover, it generates the correct address for each I/O module by shifting outgoing position signals to the next MTU, ensuring proper addressing and communication integrity within the entire network.

The ability to support field wiring connections and distribute ModuleBus signals simultaneously allows for streamlined and organized installations, reducing the complexity of industrial setups.

Mechanical Keying for Enhanced Protection
To ensure the right configuration for different types of I/O modules, the TU810/TU810V1 employs two mechanical keys. These keys allow for 36 different configurations, ensuring the correct insertion and preventing the wrong I/O module from being installed. This mechanical keying feature adds an extra layer of protection, reducing the risk of misconfiguration and improving the overall system’s reliability.

Benefits for Industrial Automation
The TU810/TU810V1 termination unit is designed with industrial automation needs in mind. By offering easy installation, secure mounting, and comprehensive support for I/O modules, it significantly simplifies the setup and maintenance of automated systems. The mechanical keying feature and the DIN rail mounting capability make this termination unit a flexible and reliable solution for both new and existing industrial systems.

Conclusion: Simplified Connectivity for Complex Systems

In summary, the TU810/TU810V1 termination unit is an essential component for ensuring efficient and reliable connections in S800 I/O systems. Its compact size, flexible configuration, and secure installation features make it an excellent choice for industrial applications. Whether you’re looking to optimize wiring or enhance the reliability of your I/O system, the TU810/TU810V1 provides a comprehensive solution that delivers both ease of use and robust performance.
