About product:

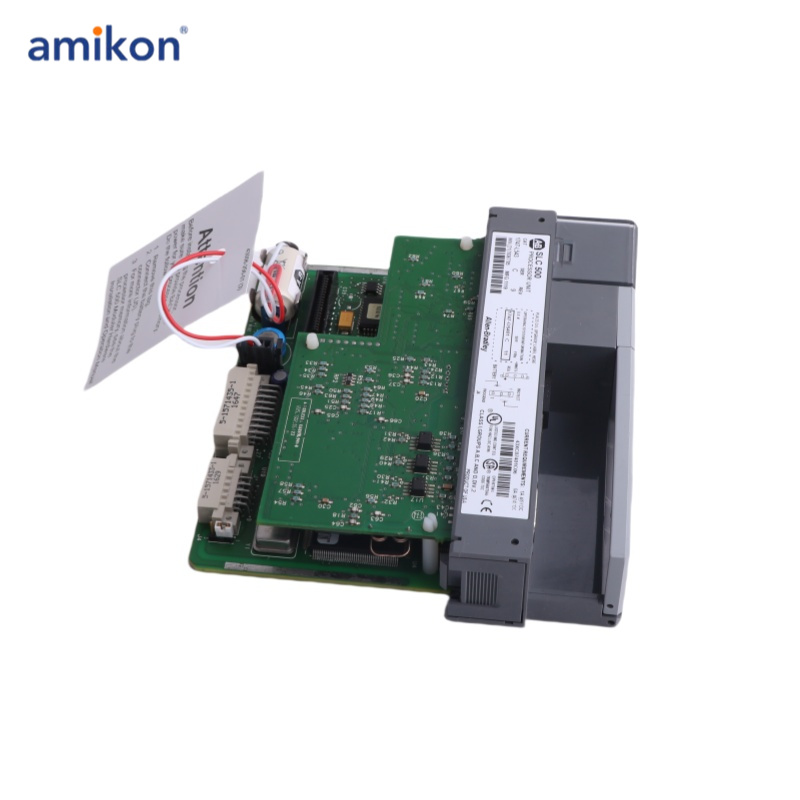

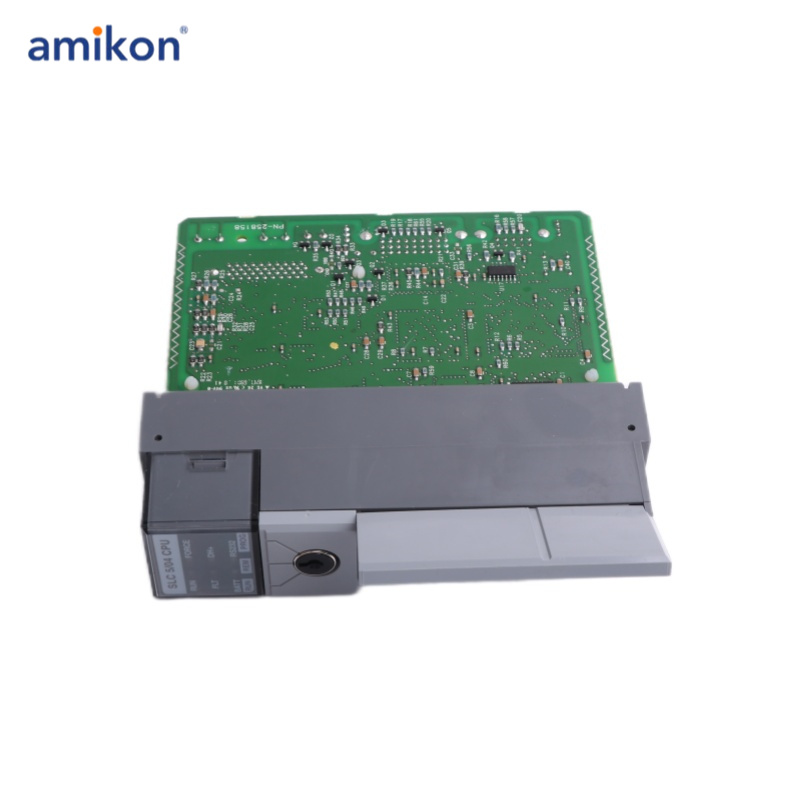

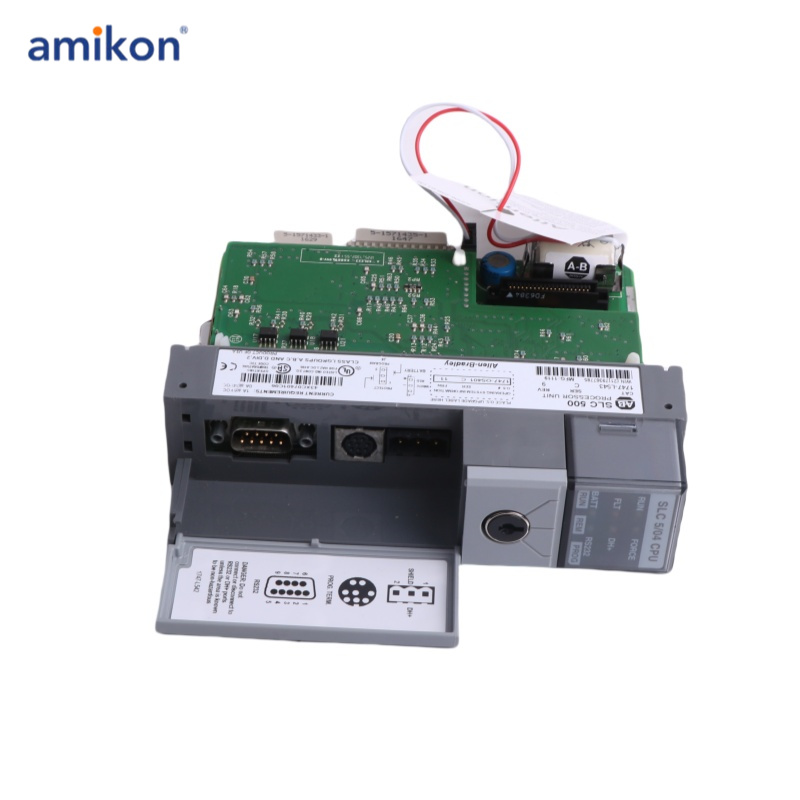

The 1747-L542 is a processor within the SLC 500 series, designed to handle a maximum of 4096 discrete inputs and outputs. It is equipped with 64 KB of integrated memory, with 60 KB allocated for data and program storage and 4 KB for data storage only. The processor also includes a Flash EPROM backup memory and supports 107 programming instructions. Its 64 KB of RAM is battery-backed to ensure reliability during power loss.

This processor supports a maximum of 3 I/O chassis and up to 30 I/O module slots. Communication is enabled through both a DH+ port and an RS-232 port. Additionally, status LEDs are present for monitoring forced I/O, CPU status, and communication ports (RS-232 and DH+).

The program scan time for the 1747-L542 averages 0.9 milliseconds per K of program, with a typical I/O scan time of 0.225 milliseconds. Bit execution time is 0.37 µs. In the event of power loss, the processor has a program scan hold-up time ranging from 20 milliseconds to 3 seconds, depending on power supply load.

In terms of physical characteristics, the 1747-L542 operates with a backplane current of 1 A at 5 Volts DC and 125 mA at 24 Volts DC. It is designed to withstand operating shocks of up to 30 G, acceleration of 2.5 G at frequencies between 57 and 2000 Hertz, and a displacement of 0.015 inches peak-to-peak at 5 to 57 Hertz. The processor can operate in environments with non-condensing humidity levels between 5% and 95%. Its operating temperature range is between 0°C and 60°C, while its storage temperature ranges from -40°C to 85°C.

Specifications:

Attribute	Specification
Part Number/Catalog No.	1747-L542
Series	SLC 500
Inputs	4096
Module Type	SLC 5/04 Processor
Outputs	4096
Analog I/O	480
Memory	Up to 64 KB, Battery Backed-RAM
Program Scan Time	0.9 ms/K
User Memory	64,000 Words
I/O Chassis	3
Chassis Module Slots	30
I/O Scan Time	0.225 milliseconds
Communication	Data Highway Plus (DH+), RS-232
Backup Memory	1747-M13
Operating Temperature	0 to 60 degrees Celsius
Battery Back-up Memory	Yes; 1747-BA
