Product Specifications

Part Number	1747-SDN
Module Type	DeviceNet Scanner Module
Data Transfer Speed	125 Kbps
Communication	Ethernet, RS-232
Chassis Module Slots	30
Backplane Current (5 Volts)	500 milliamps
Backplane Current (24 Volts)	90 milliamps
Operating Temperature	0 to 55 °C (32 to 131 °F)
Storage Temperature	-40 to 85 °C (-40 to 185 °F)
Vibration	Tested 5 g @ 10-500 Hz per IEC 68-2-6
Operating Shock	30 g peak acceleration, 11(+1) ms pulse width

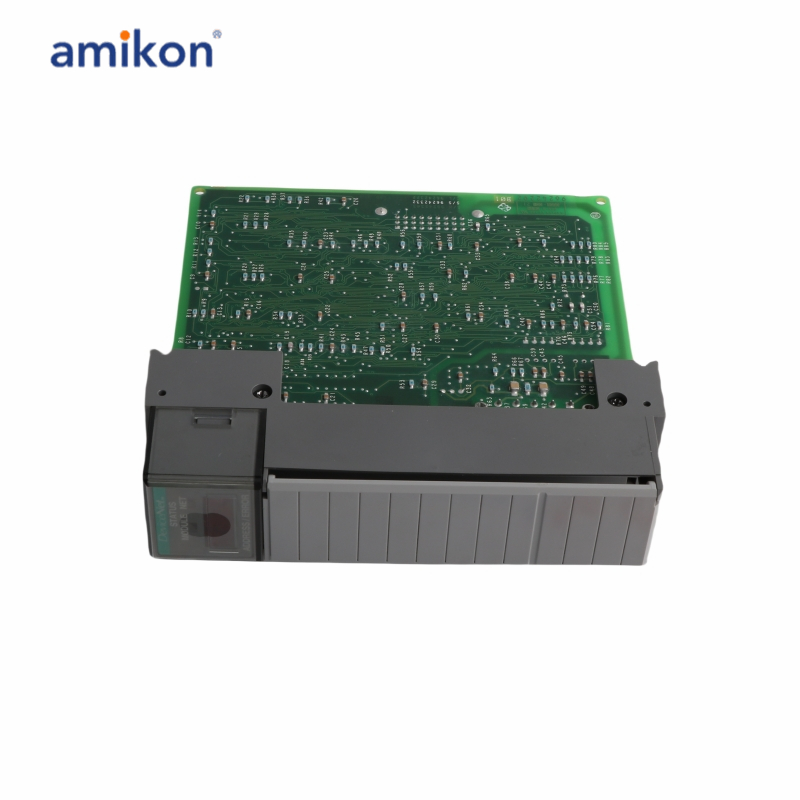

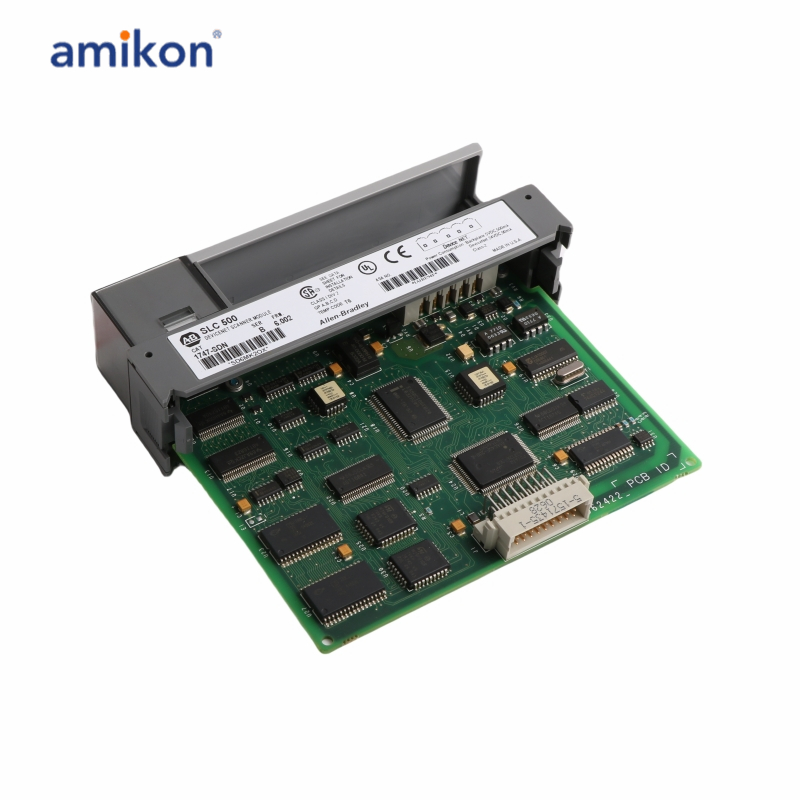

The 1747-SDN is a DeviceNet communication scanner. This scanner module is used to communicate with DeviceNet capable devices over the DeviceNet network or through DeviceNet adapter modules. This module may operate in slave mode; send and receive message in Polled, Strobe, Change-of-State and Cyclic I/O configuration. It also supports pass through configuration wherein, the 1747-SDN acts as a bridge and connects a separate DeviceNet network.

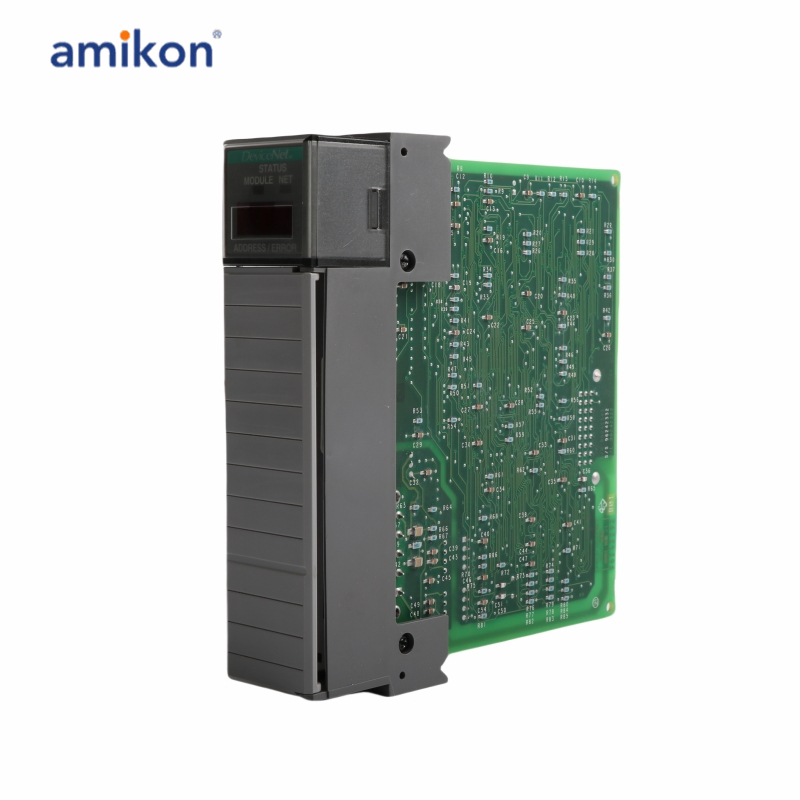

The 1747-SDN front panel is installed with Two (2) LED status indicators such as Module indicator to report the module’s operation and a Network status LED that indicates the DeviceNet communication link. It also has an LCD display that provides module address and error indication. The DeviceNet terminal is installed behind the access door and provided with a 10-pin linear plug inserted into the DeviceNet port.

Frequently asked questions：

What are this module’s communication options?
The 1747-SDN uses Ethernet and RS-232 communication.

What type of memory does this module use?
The 1747-SDN uses flash backup memory.

What are compatible processors for use with the 1747-SDN?
The 1747-SDN supports SLC 5/02 processor and higher.

What is the maximum number of DeviceNet nodes does the 1747-SDN support?
Up to 63 DeviceNet nodes are supported by the 1747-SDN.

What is the data transmission rate supported by the 1747-SDN?
The 1747-SDN supports 125 kbps transmission.

Product Applications

Automobile Manufacturing
Process and Chemical Engineering
Metallurgy and Power
Food, Beverage and Packaging
