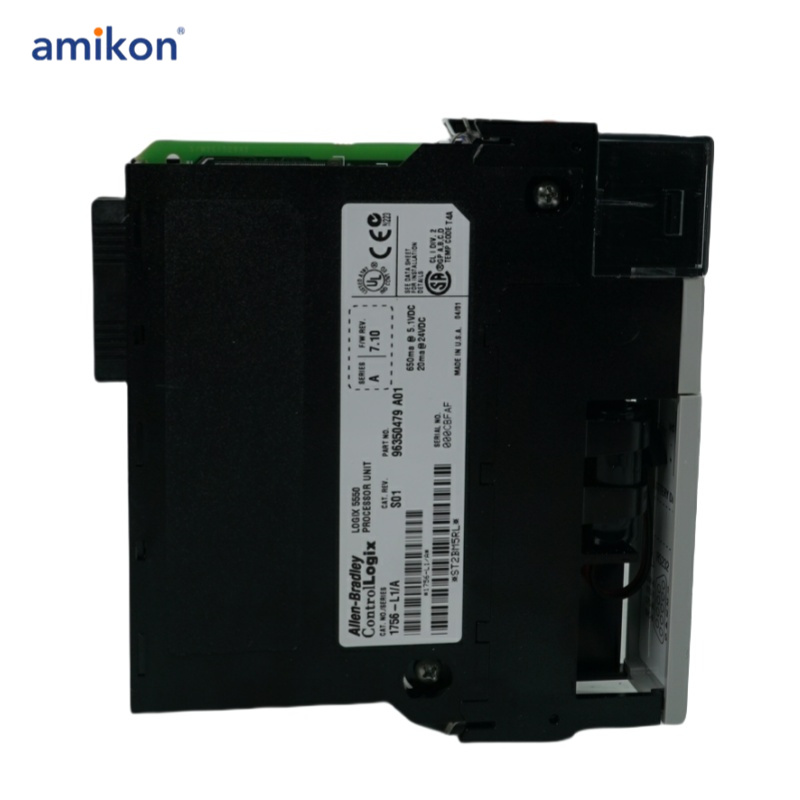

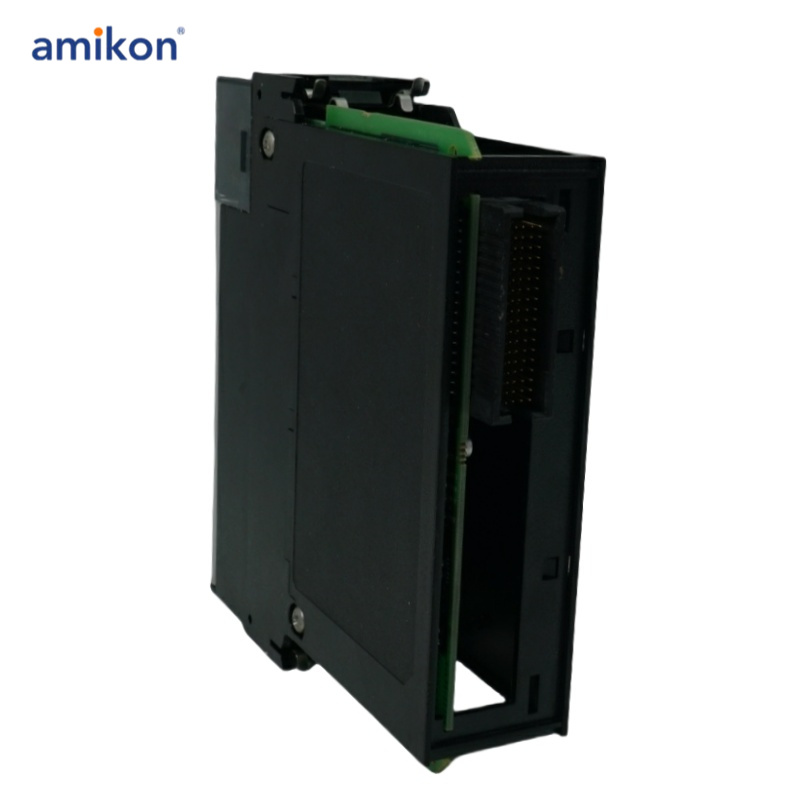

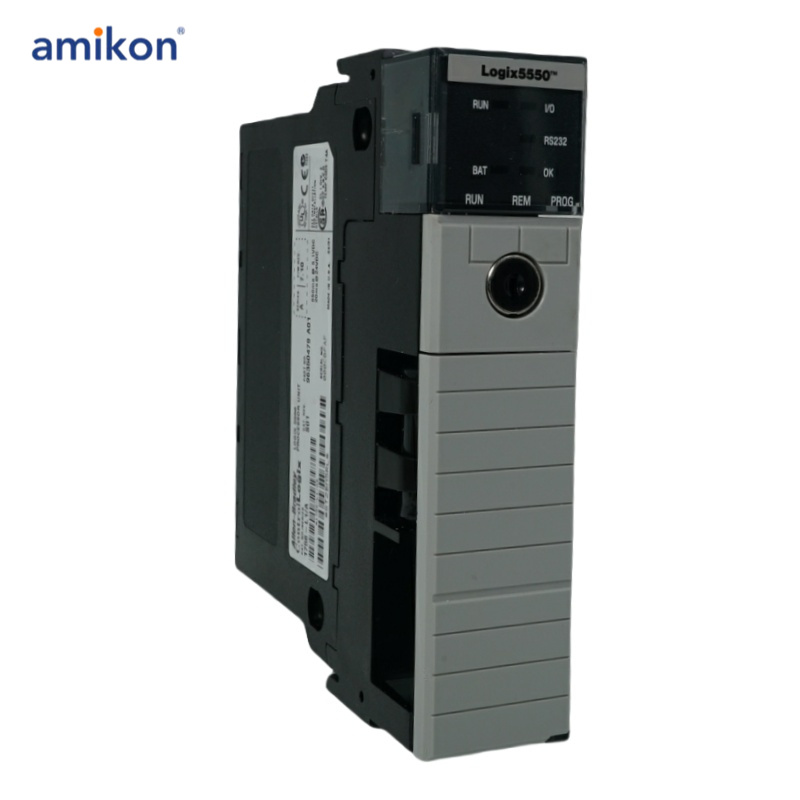

1756-L1/A Processor Module

1756-L1/A
1756-L1/A
1756-L1/A

1756-L1/A Processor Module

Brand new and original sealed//Same Day Shipment

  • Country of Origin:

    USA
  • Weight:

    0.35KG
  • Dimensions:

    12cmx10cmx8cm
  • Warranty Period:

    One Year Warranty
  • Payment Term:

    100% Advance Payment T/T Bank Wire Transfer

Part Number/Catalog No.

1756-L1

Module Type

Processor Module

User Memory

64 KB

Isolation Voltage

30 Volts Continuous

Communication Port

One (1) RS232

Operating Temperature

32-140 Fahrenheit (0-60 Celsius)

Compatible Memory Modules

1756-M1, 1756-M2 and 1756-M3

Minimum Operating Current

2 milliamps at 10 Volts DC

Battery Back-Up

1756-BA1; 1756-BA2

Maximum Operating Current

3.5 milliamps at 30 Volts DC

Communication Cable

1756-CP3

Maximum Input Current, Off-State

1.5 milliamps

Enclosure

Open

Power Dissipation (Max)

4.1 Watts at 60 degrees Celsius

SLot Width

One (1)

Backplane Current at 5 Volts

120 milliamps

Backplane Current at 24 Volts

2 milliamps

Removeable Terminal Block(s)

1756-TBCH, 1756-TBS6H


The 1756-L1 is a versatile 5550 controller designed for industrial automation. It supports up to 250 connections and has a compact weight of 0.28 kilograms (10.0 ounces). This controller includes 64 kilobytes of user memory and can be installed directly into any available slot in a chassis. Multiple controllers can be placed in different slots within the same chassis, where they can communicate across the backplane or operate independently. The 1756-L1 is capable of communication over DeviceNet, RS-232-C (DF1/DH-485 protocols), ControlNet, DH+, and EtherNet/IP networks. However, it does not feature nonvolatile memory.

This controller requires a peak backplane current of 0.65 Amps at 5 Volts DC and 0.02 Amps at 24 Volts DC. It dissipates power at an average rate of 3.3 Watts, with a thermal dissipation of 11.3 BTU/hour. The 1756-L1 operates effectively within a temperature range of 0 to 60 degrees Celsius and can be stored between -40 and 85 degrees Celsius. It maintains functionality in a noncondensing relative humidity range of 5% to 95%.

The unit is robust, with a storage shock capacity of 50 G peak for 11 milliseconds and an operating shock capacity of 30 G peak for 11 milliseconds. Additionally, it withstands vibrations between 10 to 500 Hertz with a peak acceleration of 2.0 G. For battery replacements, the controller is compatible with the 1756-BA1 lithium battery, weighing 0.59 grams. The programming cables suited for this device are the category 3 serial cables, models 1756-CP3 and 1747-CP3.
