Technical specifications for 1756-OF8H

Part Number/Catalog No.	1756-OF8H
Manufacturer	Rockwell Automation
Series	ControlLogix
Brand	Allen-Bradley
Module Type	Hart Analog Output Module
Series	ControlLogix
Outputs	8 Differential
Module Type	Analog output Module with HART capability
Input Current Range	0-20 or 4-20 milliamps
No. of Inputs	Eight (8) output channels
Isolation Voltage	50 Volts Continuous
Output signal	Current: 0-20 mA; 4-20 mA Voltage: +/-10VDC
Overvoltage Protection	24 Volts DC
Resolution	15-16 Bits
Enclosure	Open
Accuracy	Voltage: 0.1% of range Current: 0.5% of range
Removeable Terminal Blocks	1756-TBNH, 1756-TBSH
Data Format:	Integer mode (left justified, 2 s complement) IEEE 32-bit floating point
Input conversion method	Successive approximation
Output conversion method	R-Ladder DAC, monotonicity with no missing codes
Removeable Terminal Block(s)	1756-TBNH, 1756-TBSH
Removable terminal block	1756-TBCH; 1756-TBSH

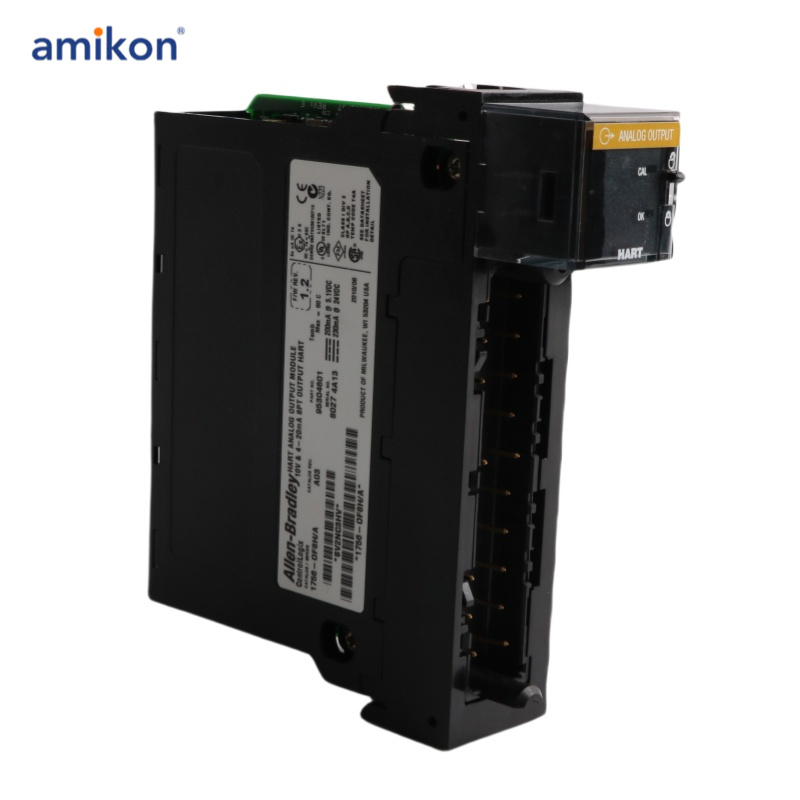

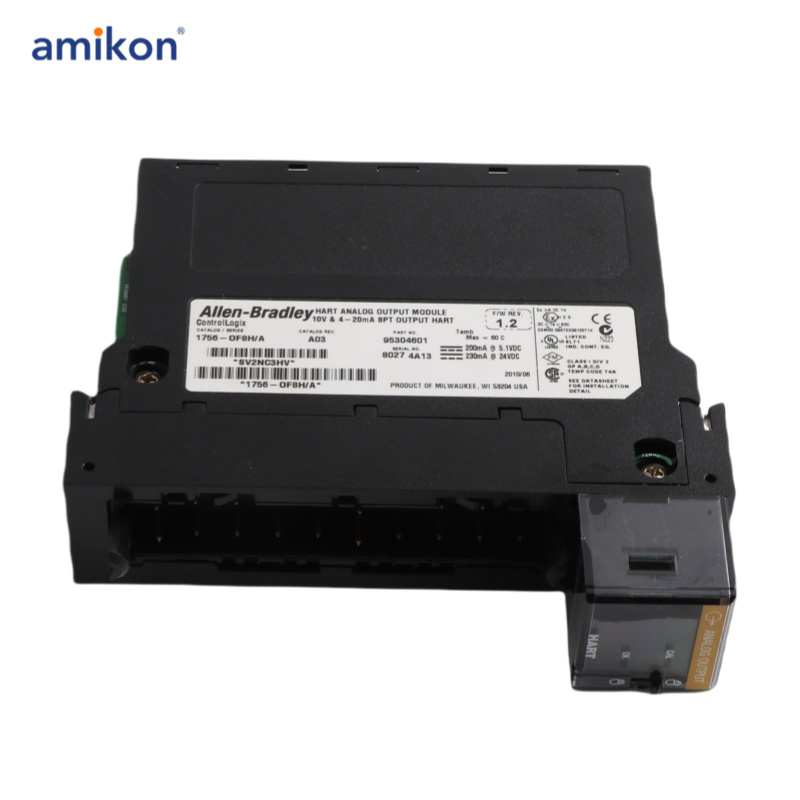

The 1756-OF8H is an analog output module from the ControlLogix controller platform. This module features eight (8) voltage or current output channels, configurable for 0-20 mA and 4-20 mA current output signals, as well as ±10VDC voltage output signals. The module offers a resolution of 15-16 bits on all signal ranges. It comes with an internal Digital to Analog converter (DAC) that uses R-Ladder DAC, ensuring monotonicity with no missing codes conversion method, and a data format of Integer mode (left justified, 2's complement) IEEE 32-bit floating-point.

This module is designed to be installed in a ControlLogix chassis, occupying a single slot. It can serve both as a local I/O module and a remote I/O module component. For signal wire termination, the module is equipped with a removable terminal block (RTB). The RTB can be replaced with a user-defined mechanical keying option such as the 1756-TBNH or 1756-TBSH. The wire size compatible with the 1756-TBNH is 0.33-2.1 mm² (22-14 AWG) for single-wire connections and 0.33-1.3 mm² (22-16 AWG) for double-wire connections. The 1756-TBSH supports only single-wire connections, with a wire size range of 0.33-1.3 mm² (22-16 AWG).

The module has a continuous isolation voltage rating of 50V. The isolation is provided between the output channels and the backplane only, with no individual isolation for each output channel. Additionally, the open circuit detection time is available only for current configurations, and the maximum overvoltage protection is ±24 VDC.
