Technical specifications for 1756-PB75/B

Part Number/Catalog No.	1756-PB75/B
Dimensions	14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.)
Weight	0.95 kg (2.10 lb)
Location	1756 Chassis Left Side
Input Power	95 W
Module Type	Standard Power Supply
Nom Input Voltage	24VDC
Input Voltage Range	18-32VDC
Chassis Series	Series B; Series C
Input Voltage	24 Volts DC
Voltage Range	18-32 Volts DC
Power Output	75 Watts at 60 Celsius
Chassis	Series B
Operating Temperature	32-140 Fahrenheit (0-60 Celsius)
Enclosure	None

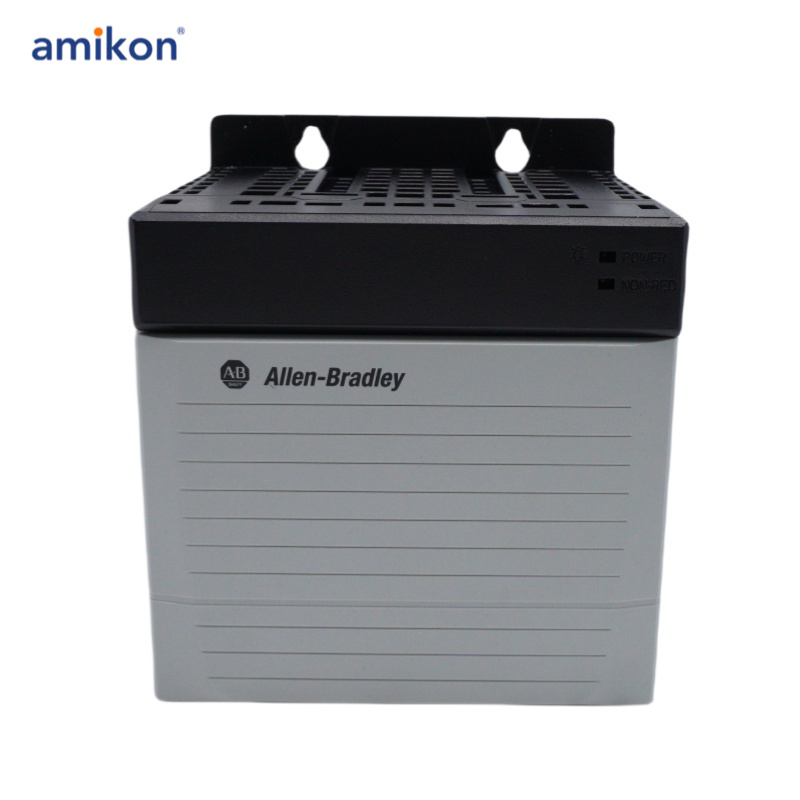

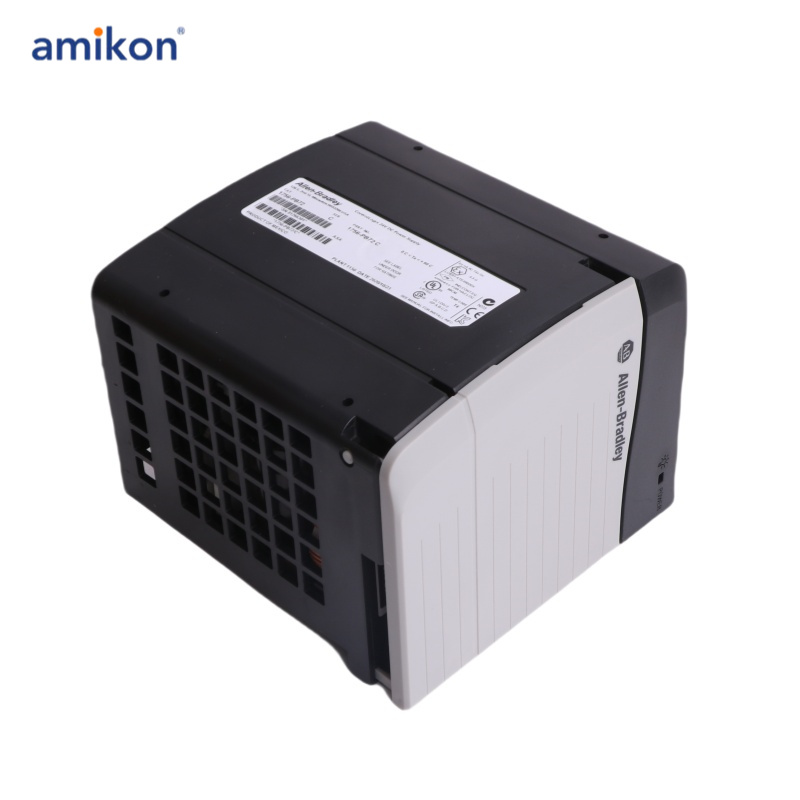

The 1756-PB75/B is a standard ControlLogix power supply designed to provide backplane power and enable module operation. It is installed on the leftmost side of a ControlLogix chassis.

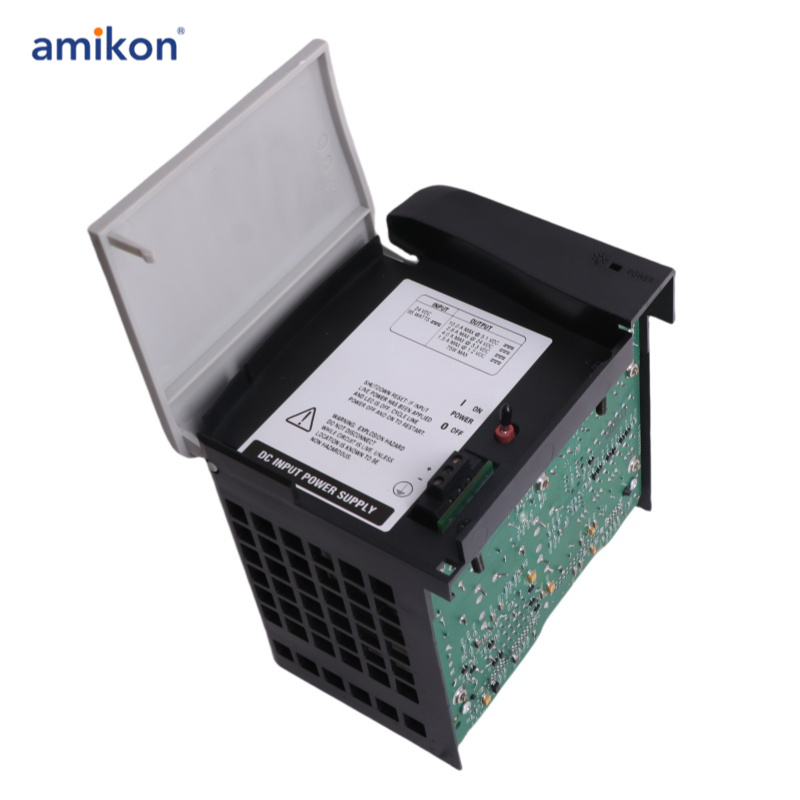

This power supply is compatible with various ControlLogix chassis, including Series B and Series C models such as 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. For incoming power connections, it is recommended to use a wire size of 2.5 mm² or 14 AWG solid or stranded copper wire with an insulation rating of 90 °C (194 °F) or higher and a maximum insulation thickness of 1.2 mm (3/64 in.). The terminal screws should be tightened with a torque of 0.565 N·m (5 lb·in). The module has physical dimensions of 14.0 cm (H) × 11.2 cm (W) × 14.5 cm (D) (5.51 × 4.41 × 5.71 in) and weighs 0.95 kg (2.10 lb).

The 1756-PB75/B operates with an external DC supply voltage of 24V, with an acceptable voltage range of 18-32VDC. It has an input power rating of 95W and an inrush current rating of 30A. The output power is rated at 75W for an operating temperature range of 0…+60 °C (+32…+140 °F). The module provides current capacities of 1.5A at 1.2VDC, 4A at 3.3VDC, 13A at 5.1VDC, and 2.8A at 24VDC.

Additional features include a hold-up time of 35 ms at 18VDC, 40 ms at 24VDC, and 40 ms at 32VDC. It also has an isolation voltage of 250V (continuous), with reinforced insulation from power input to the backplane, tested at 3500VDC for 60 seconds.
