brand new 1761-L20AWA-5A Master Control Relay,1761-L20AWA-5A Master Control Relay suppliers,1761-L20AWA-5A Master Control Relay manufacturers,factories

Technical specifications for 1761-L20AWA-5A

Part Number/Catalog No.	1761-L20AWA-5A
I/O Count	20 points
Input Type	120V ac
Communication port:	RS232
Analog Circuits	4 Inputs, 1 Output
Protocol:	DF1
Safety Feature	Master Control Relay
Product Type	Programmable Logic Controller (PLC)
Digital Outputs	8 Contact Outputs
No. of Discrete Inputs	Twelve (12)
Dimensions (L x D x H)	7.87 x 2.87 x 3.15 inces
Input Voltage Type	120 Volts AC
Voltage Range	79-132 Volts AC
Output Type	Eight (8) Relay
UPC	1.06621E+13
Discrete Output Voltage	24-125 VDC; 0-240VAC

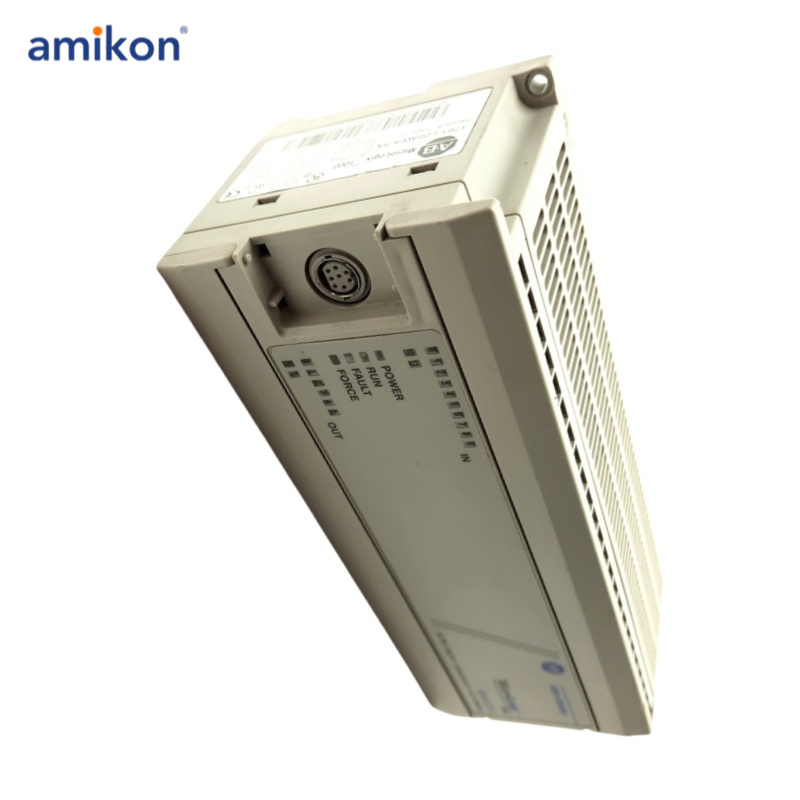

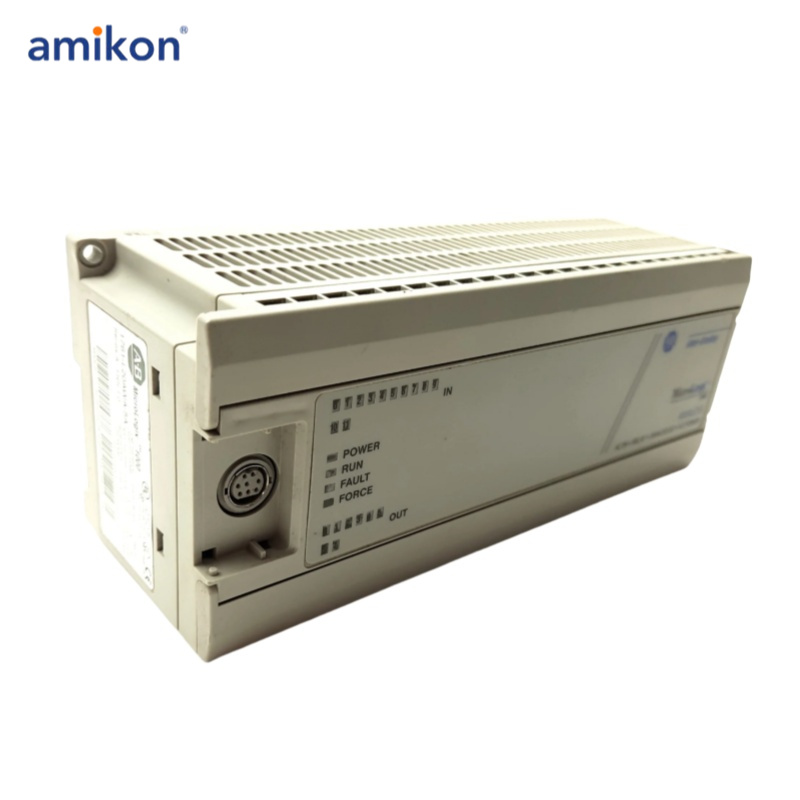

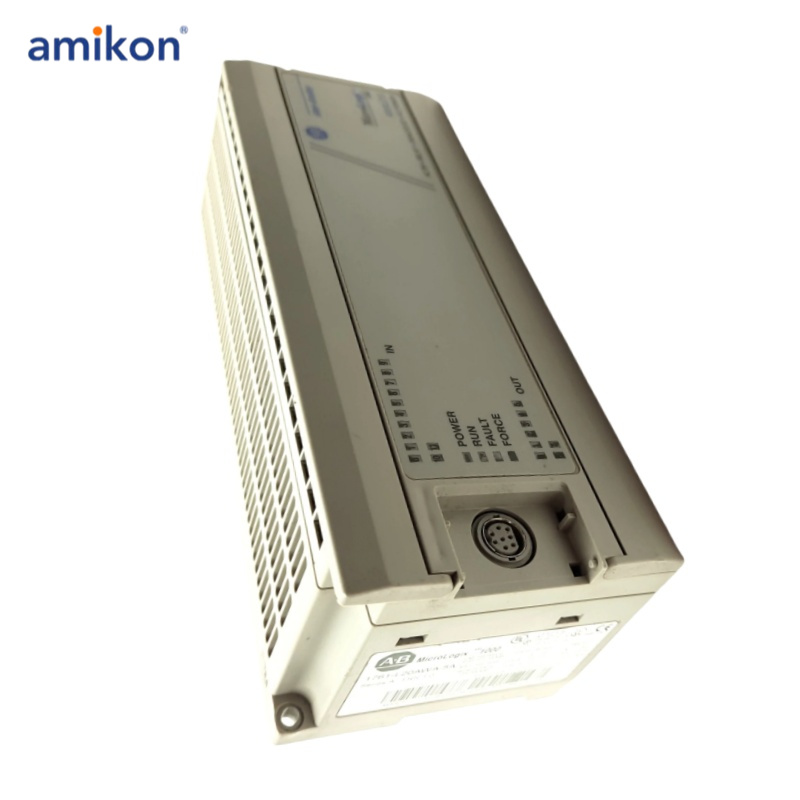

The 1761-L20AWA-5A is a MicroLogix 1000 controller featuring an AC power supply. This controller is equipped with Twelve (12) AC inputs, Four (4) analog inputs, Eight (8) relay outputs, and One (1) analog output. It also includes a DF1 RS-232 communication port. The dimensions of the entire controller are 7.87 x 2.87 x 3.15 inches. It also has several LED indicators, including status LEDs, input LEDs, and output LEDs.

The controller is equipped with a 1K EEPROM memory, which can handle up to 437 data-table words and 737 instruction words. It supports a maximum of 40 timers and 32 counters. The typical program scan time per Kword is 2 milliseconds, while the typical I/O scan time is 0.21 milliseconds. It operates with 24 Volts DC sensor power, with a maximum of 200 mA and a maximum capacitive load of 200 µF.

The line voltage for this controller is 120/240 Volts AC, with a real input power of 12 Watts at 120 Volts AC and 13 Watts at 240 Volts AC. The apparent input power is 20 VA at 120 Volts AC and 27 VA at 240 Volts AC. The transformer load available for the controller is 30 VA at 120 Volts AC and 33 VA at 240 Volts AC. The controller has a digital input voltage of 120 Volts AC, an input current range of 0 to 20 mA -1LSB, and an input voltage range of -10.5 to 10.5 Volts -1LSB. Its output voltage range is 0 to 10 Volts -1LSB, and the output current range is 4 to 20 mA -1LSB.
