Part Number: 1761-L32AWA
Input Type: 120 volts AC
Memory: 1K EEPROM consisting of approximately 737 instruction words and 437 data words
Communication Port: RS232
Safety Feature: Master Control Relay
Protocol: DF1
Digital Outputs: 12 contact outputs
I/O Count: 32 points
Number of Inputs: 20 sinking inputs
Maximum Inrush Current: 30 A for 8 milliseconds
Power Cycles: Minimum 50,000
Output Type: 12 relay outputs
Output Voltage Range: 24–125 VDC; 0–240 VAC
Terminal Torque: Maximum 0.9 N·m
Power Supply: 120/240 volts AC
Operating Frequency: 47–63 Hz
Input Power: 19 VA at 120 VAC; 25 VA at 240 VAC
Measurements: 7.87 × 2.87 × 3.15 inches
Operating Shock: 10 G
Non-Operating Shock: 20 G

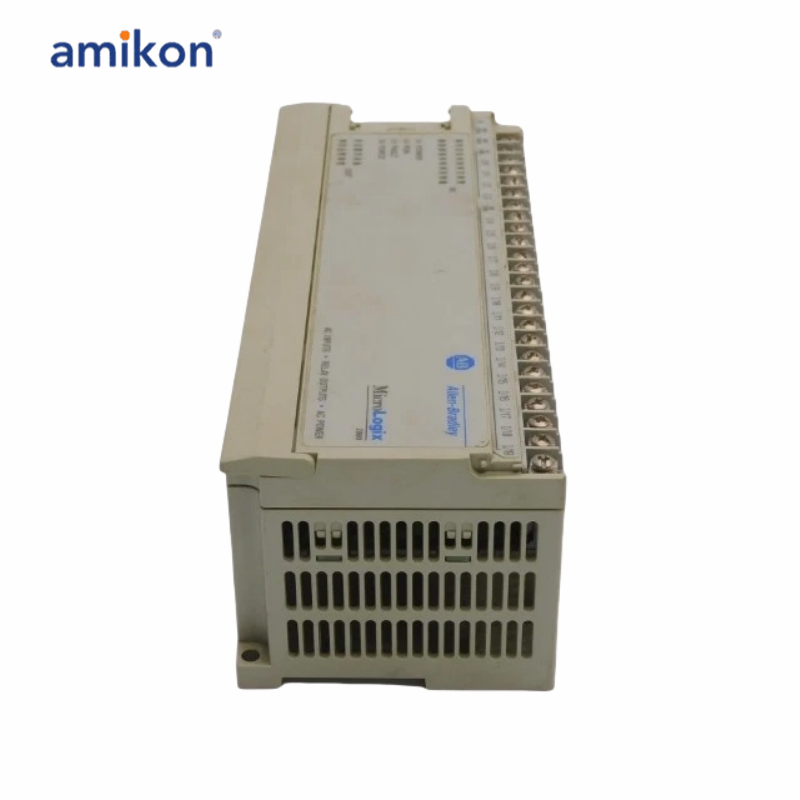

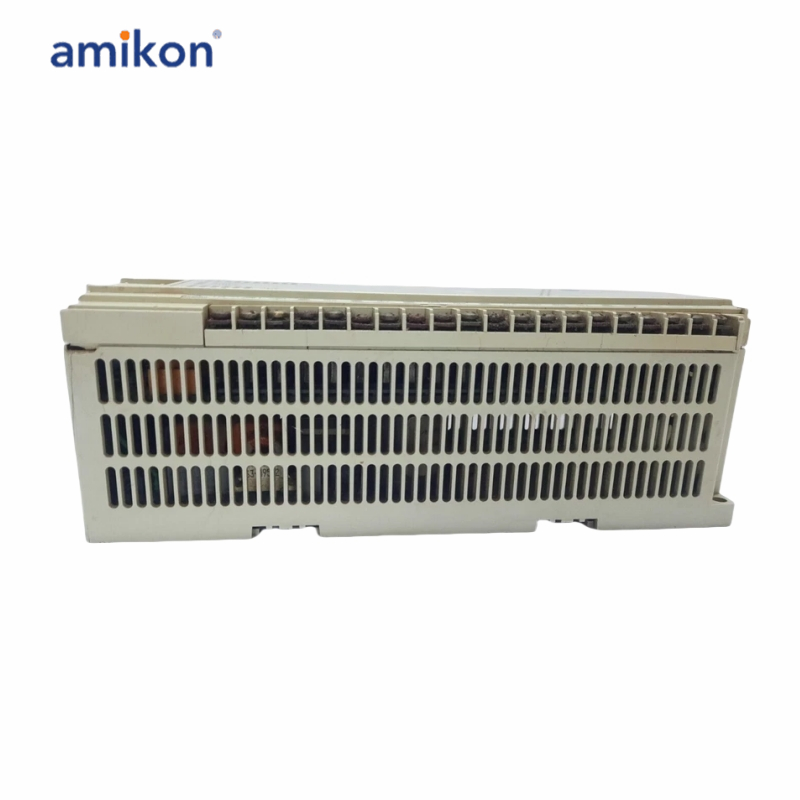

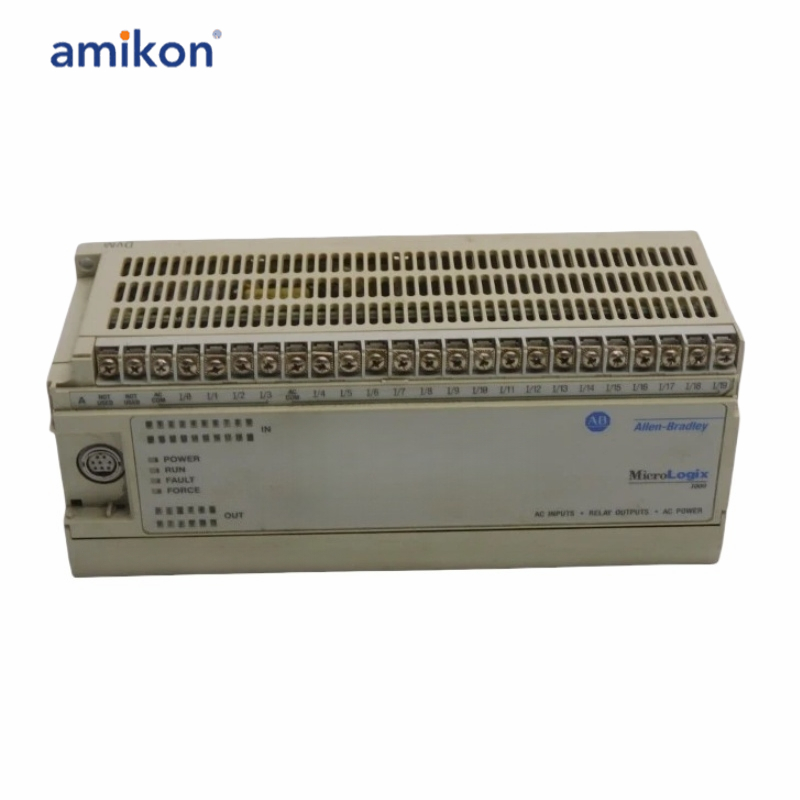

1761-L32AWA is a programmable controller. The controller has 1K user memory, integrated Twenty (20) 120 Volts AC input channels and Twelve (12) relay output channels. The 1761-L32AWA can be operated with a power source that supplies either 120 VAC or 240 VAC. For safety purposes, the 1761-L32AWA should be installed and operated in non-hazardous locations or in Class 1 Division 2 groups A, B, C, and D. The controller may explode if the connectors are connected or disconnected while the circuit is still live or when the 1761-L32AWA is not installed in an enclosure. The 1761-L32AWA measures 7.87 inches in length, 2.87 inches in depth, and 3.15 inches in height. The controller may be mounted horizontally or vertically. When mounting, a minimum space of 2 inches should be left on the top, bottom, and on the sides to allow for the free flow of air. It comes in a compact size and has several communication options that include an RS-232 port to connects to a peer-to-peer network through the DH-485 network. It also has a Device Net Interface (DNI) for fast response, low cost, and reliable connections.
