Technical specifications for 1762-OB8

Part Number/Catalog No.	1762-OB8
Product Type	Solid-State Expansion Module
Operating Voltage Range	20.4-26.4V DC
Outputs	8
Voltage Category	24V DC
Mounting	DIN Rail
Backplane Current	115 mA at 5 Volts
UPC	1.06113E+13
UNSPSC	32151601

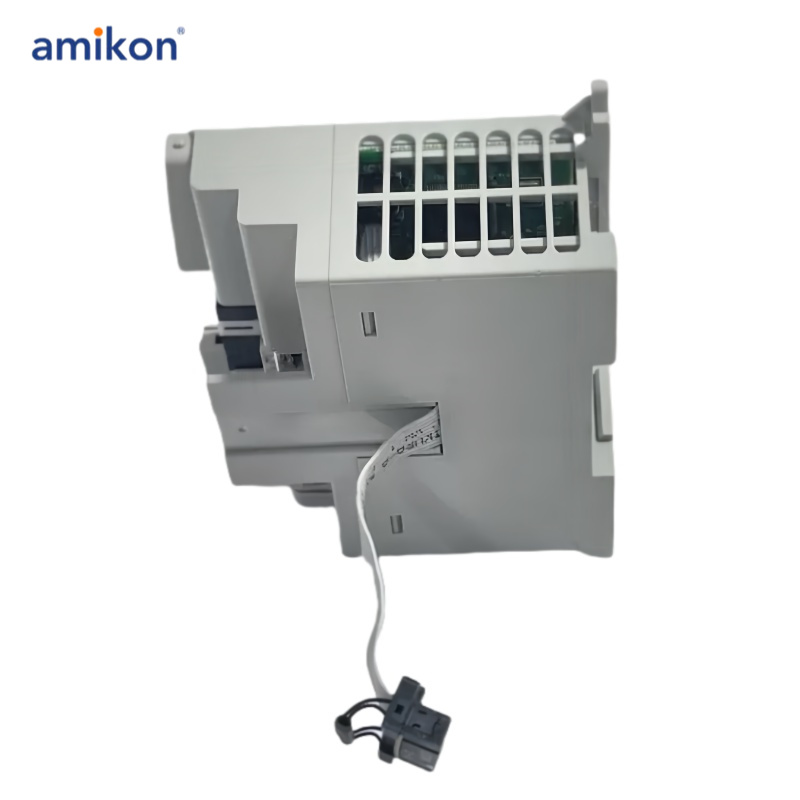

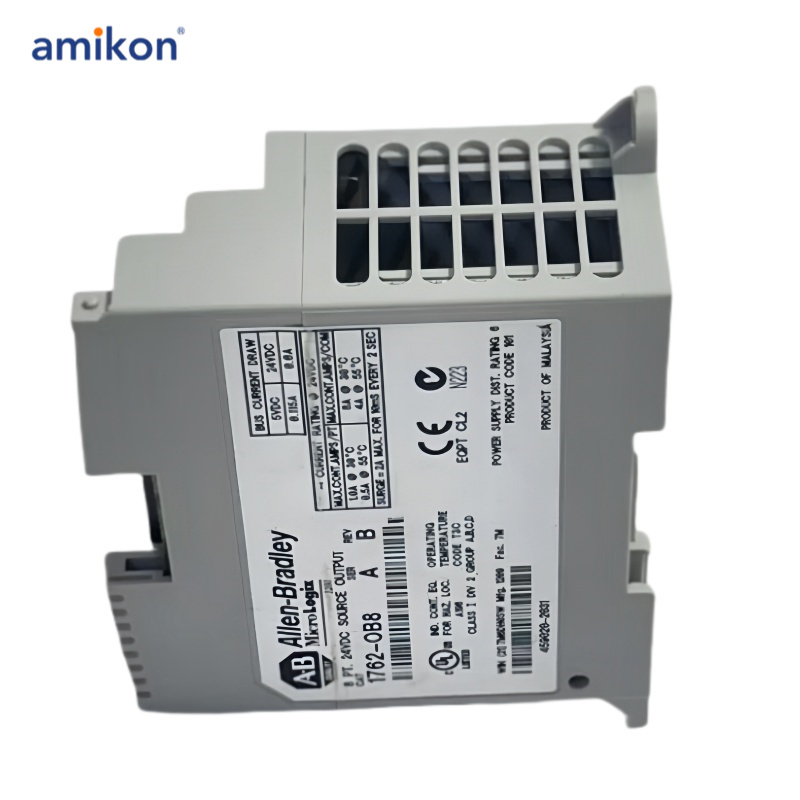

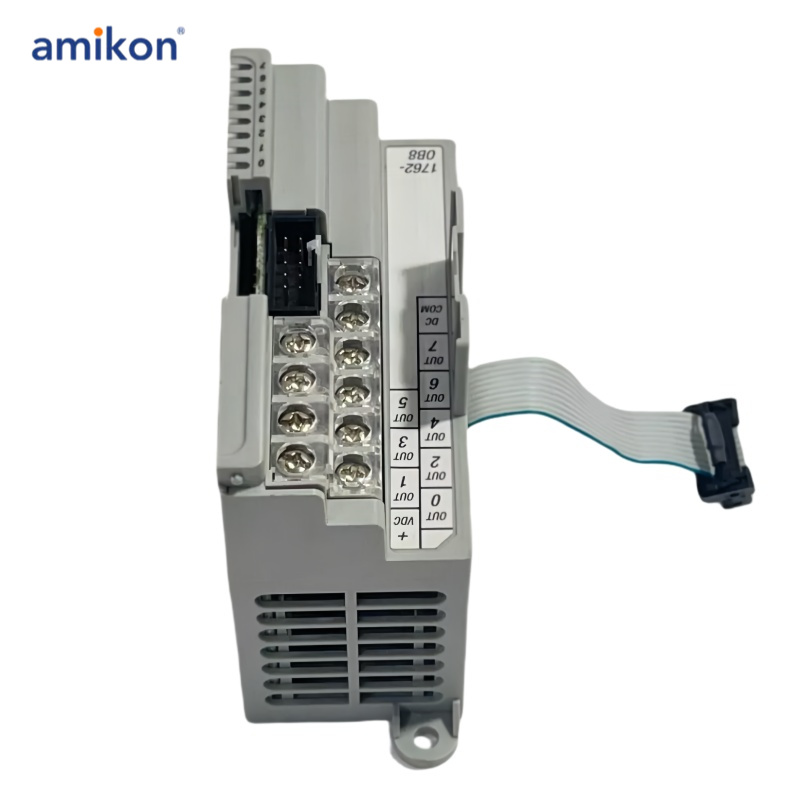

The 1762-OB8 is an 8-point digital DC output module designed to expand the functionality of MicroLogix 1200 controllers. This solid-state module provides 8 digital 24V DC sourcing outputs with an operating voltage range of 20.4V DC to 26.4V DC. It draws 115 mA backplane current at 5V DC and supports a maximum signal delay of 0.1 milliseconds when switching to the ON-state and 1.0 milliseconds when switching to the OFF-state under resistive loads. The module's maximum ON-state voltage is 1.0V DC.

Key specifications include a maximum leakage current of 1.0 mA in both ON and OFF states and a maximum load current of 0.5A per output point, with a total capacity of 4A per module. The module supports a 2A intermittent surge current lasting 10 milliseconds, repeatable every 2 seconds. It offers a group-to-backplane isolation tested at 1200V AC or 1697V DC for 1 second and dissipates power at 1.6 watts during operation.

The 1762-OB8 operates within a temperature range of 0 to 55°C (32 to 131°F) and can be stored between -40 to 85°C (-40 to 185°F) in a non-condensing humidity range of 5 to 95%. It is designed to function optimally at altitudes up to 6561 feet and withstands shock up to 30G and vibration up to 5G at 500 Hz.

The module's compact dimensions are 90 x 87 x 40.4 mm, with a weight of approximately 210 grams. It complies with UL, c-UL, and CE certifications, ensuring safety and reliability in various industrial environments.
