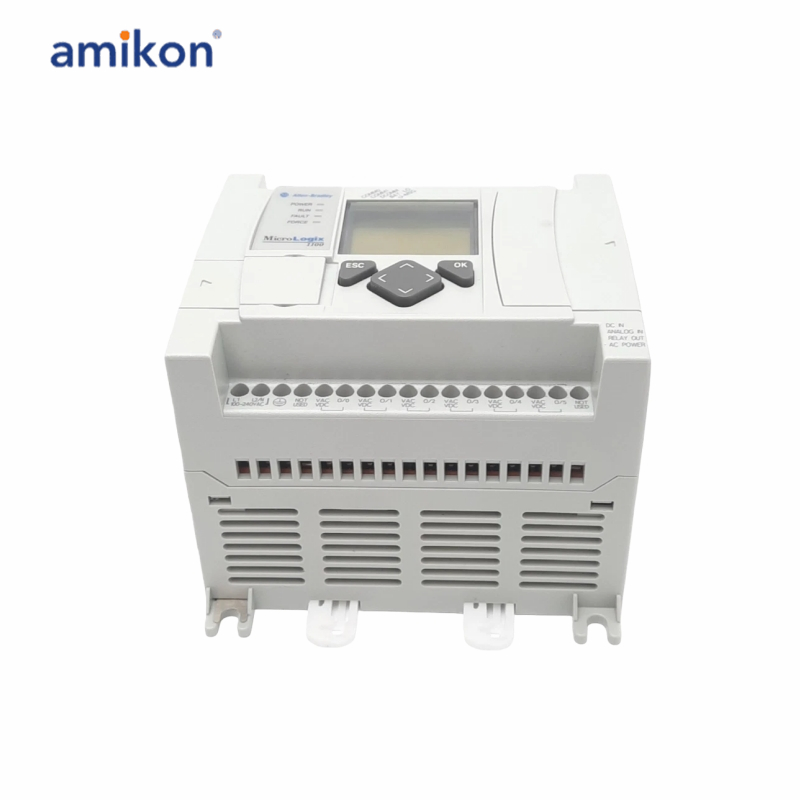

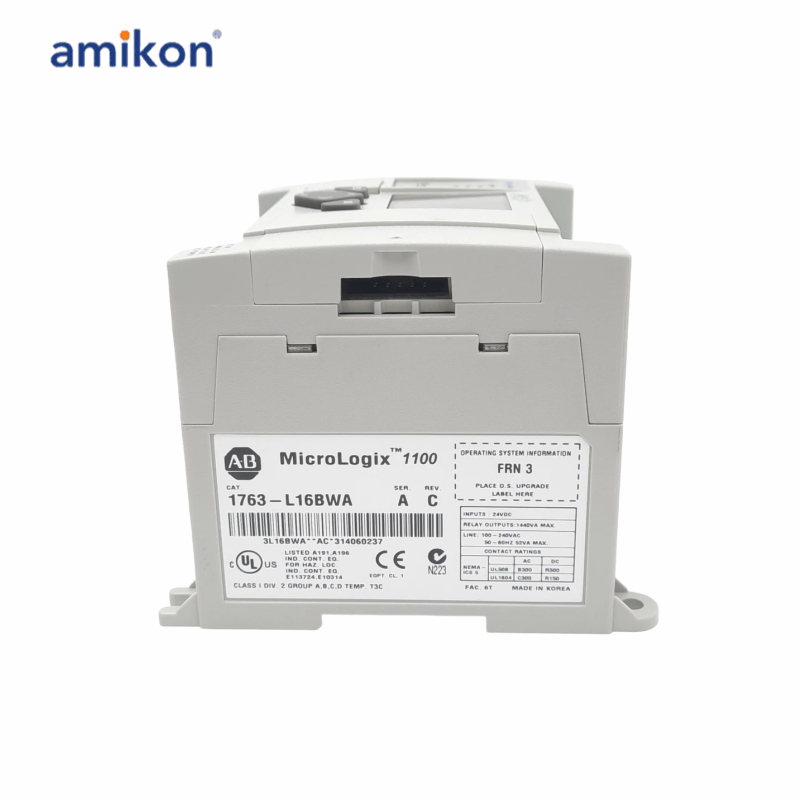

1763-L16BWA Controller

Part Number: 1763-L16BWA
Weight: 1.31 lbs (0.60 kg)
Input Power: 120 to 240 Volts AC
Point Count: 16 Points
Digital Inputs: 24 V DC sink/source
Analog Inputs: 2 Voltage Inputs
Operating Frequency: 47 to 63 Hz
Analog Voltage Range: 0–10 V DC
Input Resolution: 10-bit
Analog Data Type: 10-bit unsigned integer
Memory: Non-Volatile Battery Backed RAM
Analog Resolution: 10 Bit

The 1763-L16BWA Programmable Controller is an industrial programmable controller with a total of Eighteen (18) I/O points. It consists of Ten (10) 24VDC sinking or sourcing digital inputs, Two (2) Analog Inputs and Six (6) relay outputs. This controller requires an input power supply of 100-240VAC.
The input channel has an OFF-state voltage range between 0 and 5 Volts DC with a 1.5 mA maximum OFF state leakage current and a Nominal impedance of 3.1 k?. The Analog inputs s compatible for 0 to 10 VDC, with an input resolution of 10 bits. The 1763-L16BWA’s analog input also has +/-0.5% full-scale non-linearity, +/-0.5% accuracy, 210 k? voltage impedance and a 10.5 Volt DC input voltage protection. The 1763-L16BWA’s outputs are Six (6) isolated relay outputs with a 3A current per group and a maximum OFF/ON and ON/OFF response time of 10 millimeters. The relay output has a relay contact with a rating of 1.2 MAKE current capacity, 1.0A continuous current, and 28VA make power output. Overall, the 1763-L16BWA has an inrush current of 25A for 8 milliseconds at 120 Volts AC and 40A for 4 milliseconds at 240 Volts AC with 52 VA overall power consumption. The module’s ambient operational temperature ranges between -20 and 65 degrees Celsius (-4 and 149 degrees Fahrenheit) at 5 to 95% non-condensing relative humidity. It is built to withstand an operational shock of 30G and a vibration of 15G at 50 Hertz. It measures 3.5 x 4.09 x 3.43 inches and weighs approximately 2 pounds.

Frequently asked questions：

Q1: What is the 1763-L16BWA used for?
A: It is used as a compact controller for small- to medium-scale systems with both digital and analog signals.
Q2: How many digital and analog inputs does it support?
A: It supports 24 V DC digital inputs and 2 analog voltage inputs.
Q3: What is the analog voltage range for the 1763-L16BWA?
A: The analog inputs support a range of 0–10 V DC.
