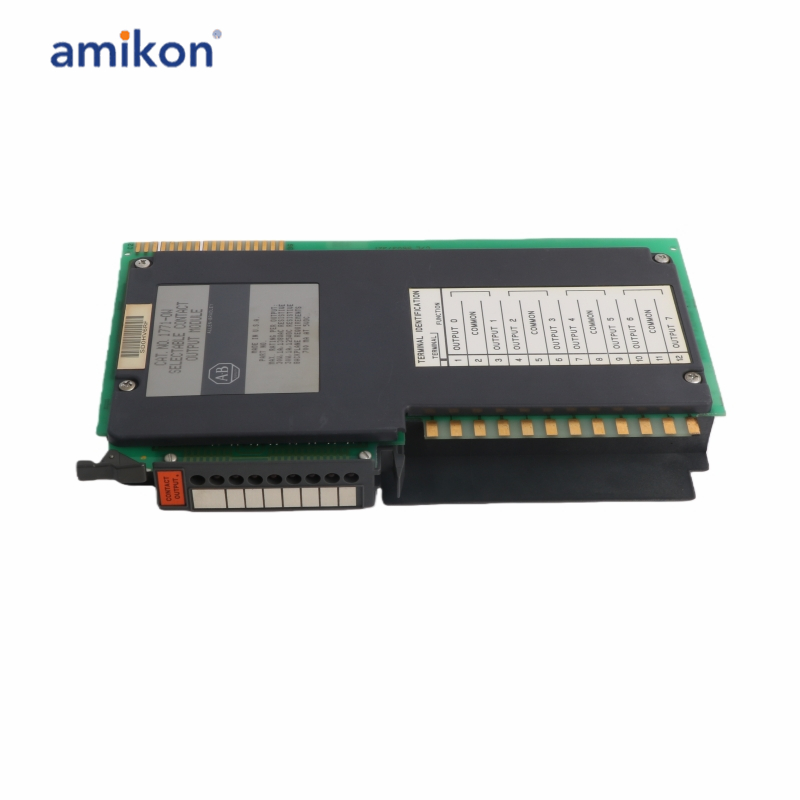

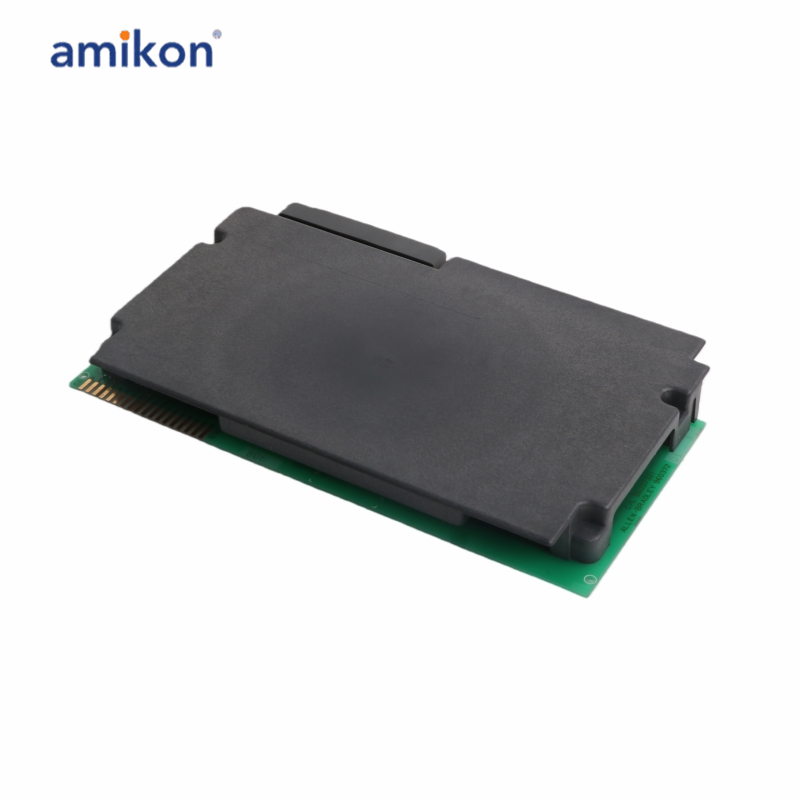

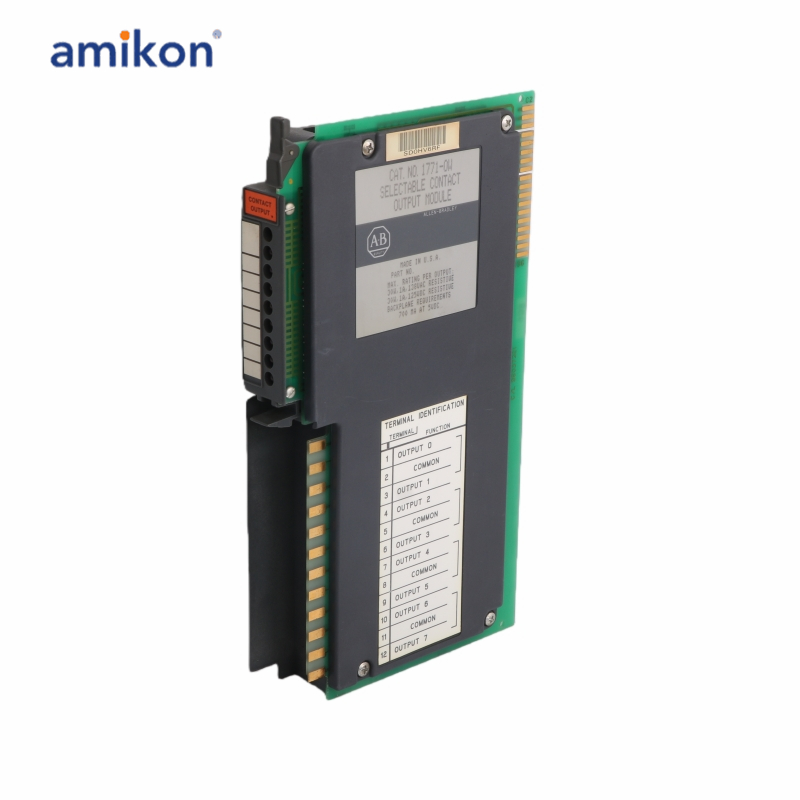

Part Number: 1771-OW
Module Type: Selectable relay output module
Series: 1771 Product Bulletin
Number of Outputs: 8 relay outputs
Number of Groups: 4
Channels per Group: 2
Contact Form: Normally Open (N.O.) / Normally Closed (N.C.)
Default Contact Configuration: Normally Open (N.O.)
Operating Voltage (AC): 24–138 VAC RMS
Operating Voltage (DC): 24–125 VDC
Output Current Rating per Channel: 1.0 A
Backplane Current: 700 mA
Power Dissipation: 3.3 – 3.7 Watts
Thermal Dissipation: 11.3 – 12.7 BTU/hr
Compatible Chassis: 1771 I/O chassis
Keying Positions: Between 6–8 and 16–18
Field Wiring Arm: 1771-WD or 1771-WH
Wiring Arm Screw Torque: 7–9 in-lbs
Typical Signal Delay (AC Off): 45 ms (±15 ms)
Typical Signal Delay (DC Off): 50 ms

The 1771-OW is a selectable relay output module. This module features Eight (8) relay output channels in Four (4) groups of Two (2) channels each with each group installed with individual common. Each output channel can be assigned as a Normally Open (N.O.) contact or Normally Closed (N.C.) contact with N.O. as the default configuration. This module is ideally used with resistive loads as it does not come with surge limiting circuitry.
Each output of the 1771-OW comes with internal electrical isolation from module logic to circuitry. All of the module’s relay channels may be activated simultaneously. Each output channel may conduct a maximum continuous flow of current at 1.0 Ampere. If AC devices are connected to any of the output channels, the AC load must have a power factor of 1.0. Output channels has an operate / release time of 5 ms, bounce time of 1 ms and switching frequency of 10 Hz.
