Product Specifications

Part Number	1771-RTP4
Weight	0.50 lbs (0.23 kg)
Module Type	Remote Termination Panels
Supported I/O Modules	8 I/O Modules
Matching Wiring Arm	1771-WF
Frequency Range	47–63 Hz
Fuse Specification	3 A, 250 V, Normal-Blow
Matching Cable	1771-PSCC (5.5 ft)
Terminals	38 screw terminals
Connectors	2 × 25-pin female connectors

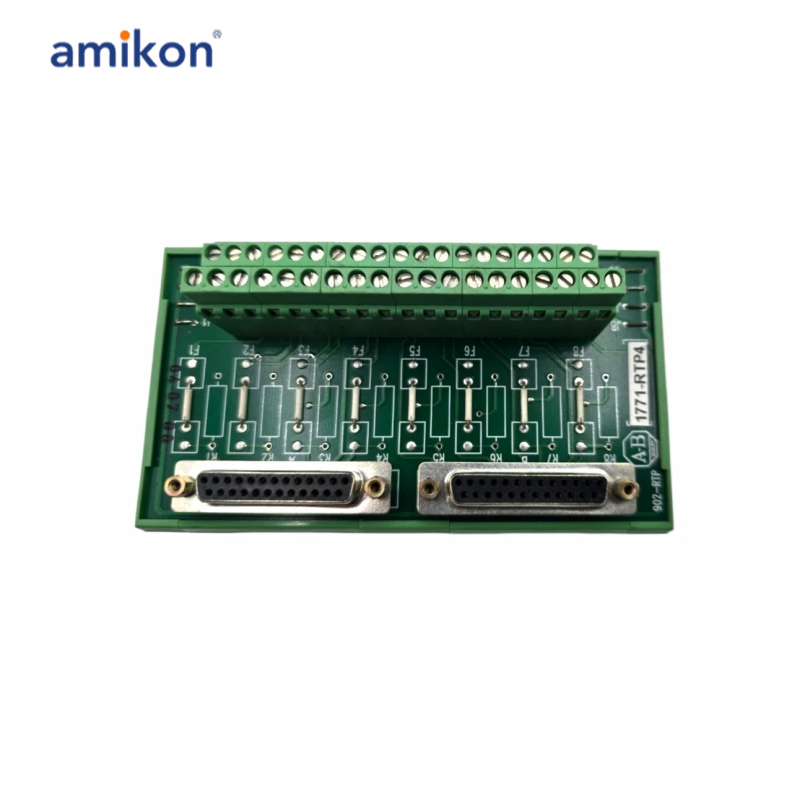

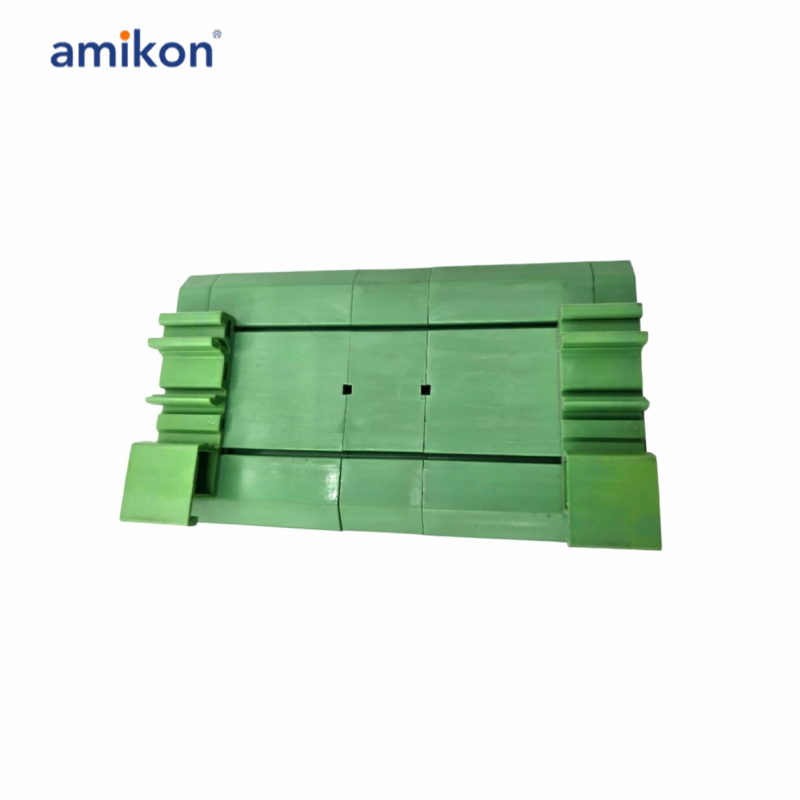

The 1771-RTP4 PLC 5 Remote Termination Panel is an electrical device used with the N-series High-Resolution Analog I/O modules to provide a Remote Termination System and the panel itself is designed for mounting on the Standard DIN 1 and DIN 3 mounting rails. The 1771-RTP4 has a field wiring connector and it establishes a connection to the N-Series I/O modules via the two 1.8m (6ft)-long 1771-NC6 Pre-fabricated cables and it has a maximum of 8 I/O connections. It is an 8-channel termination panel with voltage inputs, RTD, and voltage outputs, and it can be used for most applications except thermocouples. Mounting of the 1771-RTP4 is done via the Asymmetrical and Symmetrical 1 or 3 DIN rails, and it is designed to reduce additional cost by eliminating wiring between a Terminal Strip and a Wiring Arm and it makes the removal or replacement of an I/O possible without disturbing the current loop. The entire 1771-RTP4 Termination Panel weighs approximately 0.2Kg (0.5lb), and has dimensions of 75mm x 138mm x 58mm (3.0in x 5.3in x 3.0in).

Frequently asked questions：

Q1: What is the 1771-RTP4 Remote Termination Panel used for?
A1: The 1771-RTP4 Remote Termination Panel is used to simplify field wiring for PLC I/O systems. It provides a centralized termination point for field devices and helps reduce installation time while improving maintenance efficiency.

Q2: How many I/O modules can the 1771-RTP4 support?
A2: The 1771-RTP4 is designed to support up to 8 I/O modules, making it suitable for medium-sized industrial control systems.

Q3: How many terminals are available on the 1771-RTP4 panel?
A3: The 1771-RTP4 panel features 38 screw terminals, providing secure and reliable connections for field wiring.

Q4: What frequency range is supported by the 1771-RTP4 termination panel?
A4: The 1771-RTP4 unit is designed for operation in systems utilizing a frequency range of 47 to 63 Hz.
