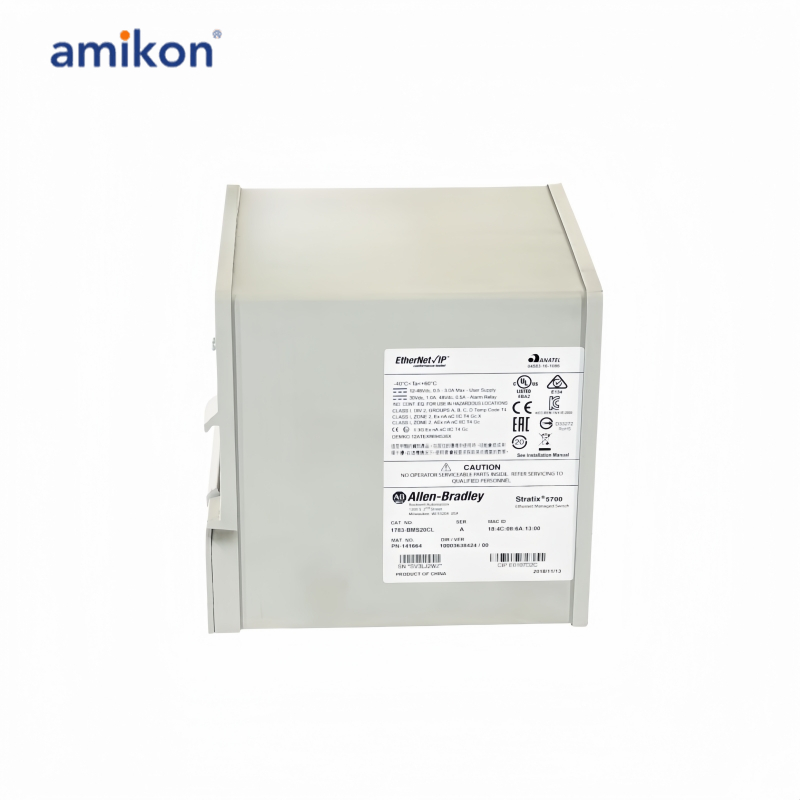

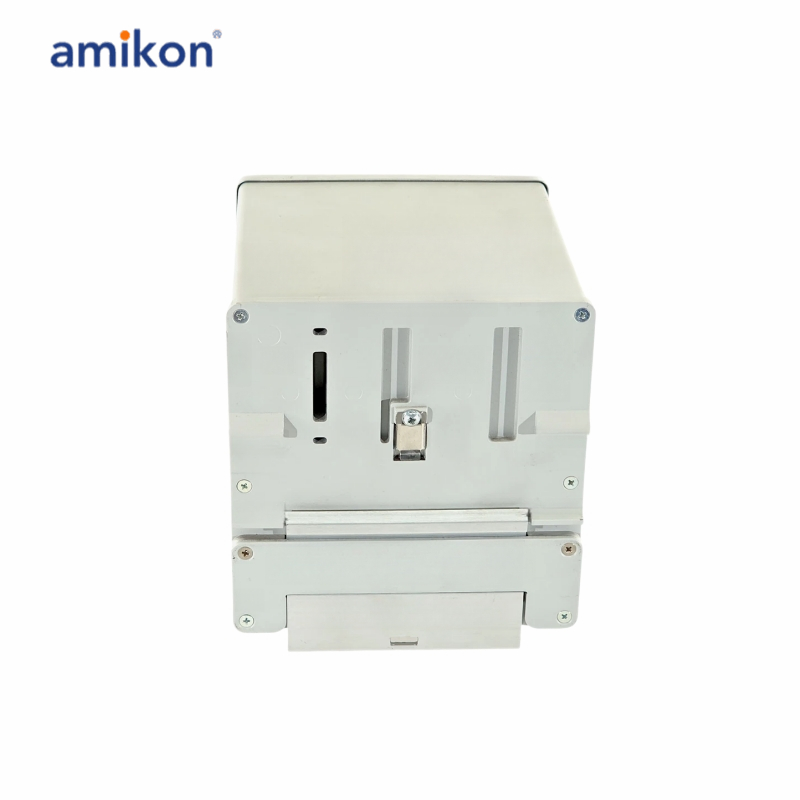

1783-BMS20CL Managed Ethernet switch

Product Specifications

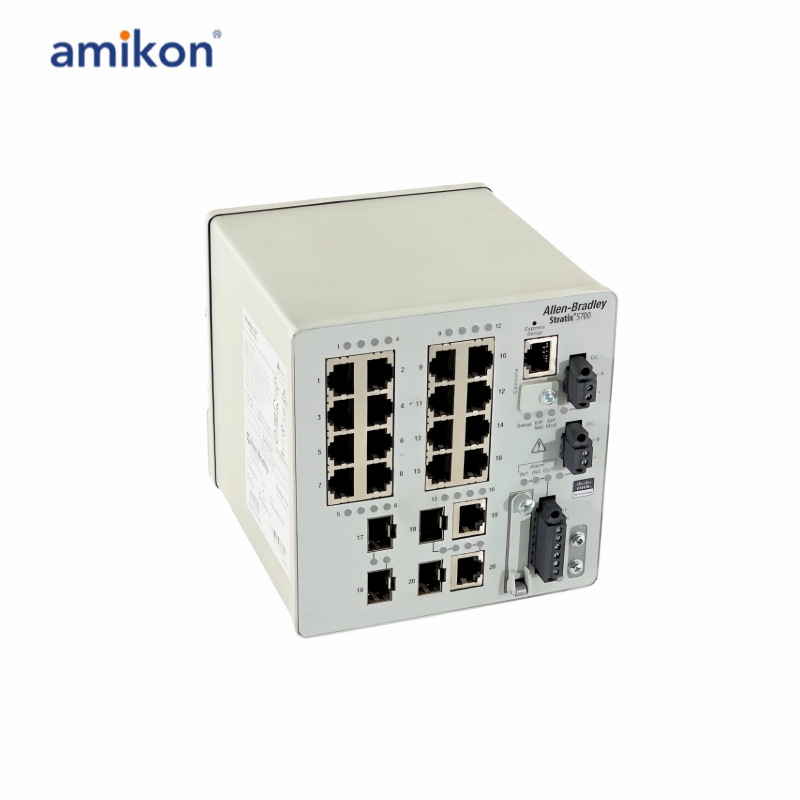

The 1783-BMS20CL switch is a 20-port Ethernet switch. In supervisor mode, the switch can gather information from the ring and can manage the DLR status and machine-level DLR diagnostics. The supervisor node also provides alternate routes when it detects a ring break. DLR is used in high-performance network applications that cannot tolerate network outage. Of the 20 switch ports, 16 are RJ45 Fast Ethernet ports, 2 are Fast Ethernet combo ports, and the remaining 2 are Fast Ethernet fiber ports. The 1783-BMS20CL switch runs on DC input ranging from 12 to 48 Volts DC. The minimum and maximum current draw of the switch are 0.5 Amps and 3 Amps, respectively. A SELV or Class 2 power supply should be used for the switch power. The typical power consumed by the 1783-BMS20CL switch is 21 Watts at 40 degrees Celsius and 24 Volts DC. The peak power consumption of the switch can reach 30 Watts. For isolation voltage, the 1783-BMS20CL switch has been type tested at 850 Volts DC for 60 seconds. The 1783-BMS20CL switch comes in an open enclosure with the T4 IEC temperature code. The weight and dimensions of the 1783-BMS20CLswitch are 2.04 kilograms and 5.1 x 5 x 5.3 inches. The operating temperature range for the 1783-BMS20CL switch is from -40 to 60 degrees Celsius. The 1783-BMS20CL is a managed Ethernet Switch that is part of the Stratix 5700 product category. This Ethernet switch supports a variety of topologies, including Device Level Ring (DLR) for resilient network.

Frequently asked questions：

Q1: What is the 1783-BMS20CL used for?
A: The 1783-BMS20CL is a managed industrial Ethernet switch used to provide reliable network communication for PLCs, HMIs, drives, I/O devices, and other industrial equipment.

Q2: How many copper ports does the 1783-BMS20CL provide?
A: The switch features 16 copper Ethernet ports, allowing multiple industrial devices to be connected within a single network infrastructure.

Q3: What is the power supply input range of the 1783-BMS20CL?
A: The 1783-BMS20CL switch accepts a 12 to 48 VDC power input, providing flexibility for installation in various industrial control systems.

Q4: What is the 1783-BMS20CL power dissipation of the switch?
A: The 1783-BMS20CL has a power dissipation of 30 W, which should be considered when designing cabinet cooling and power requirements.

Product Applications

Oil & Gas/Chemical Plants
Food & Beverage Processing
Water & Wastewater Treatment
Packaging & Material Handling
