1783-US8T 8-port Ethernet switch

1783-US8T
1783-US8T
1783-US8T

1783-US8T 8-port Ethernet switch

Brand new and original sealed//Same Day Shipment

  • Country of Origin:

    USA
  • Weight:

    0.3kg
  • Dimensions:

    6cmx14cmx9.3cm
  • Warranty Period:

    One Year Warranty
  • Payment Term:

    100% Advance Payment T/T Bank Wire Transfer

We're here when you need us!!!

  sales7@amikon.cn      86-18965423501   86-18965423501   AMKPLC

About product:

Brand


Part Number

1783-US8T

Product Type

8-port Ethernet switch

Payment

T/T,100% advance payment

Shipping Port

Xiamen,China

Lead Time

In stock

Description:

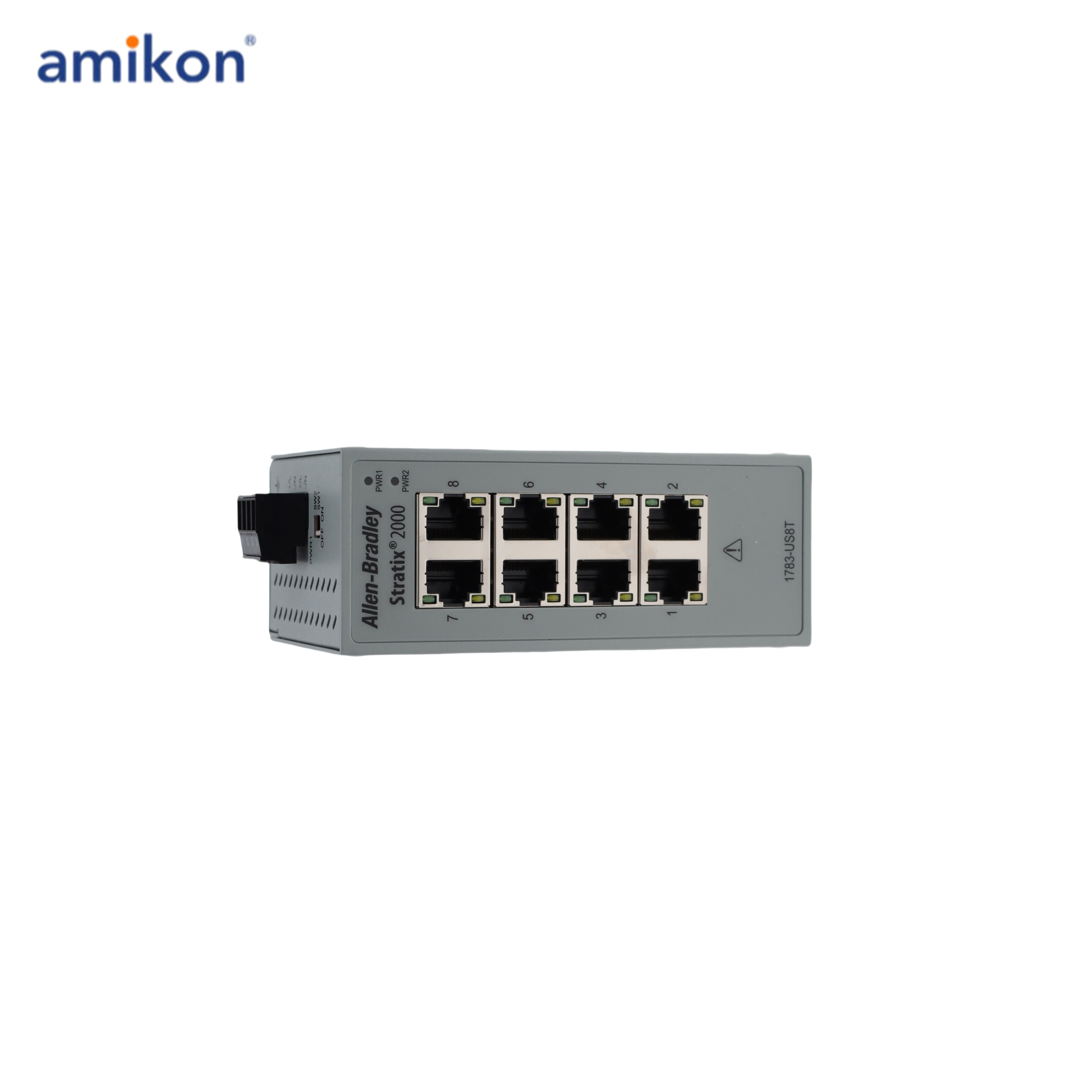

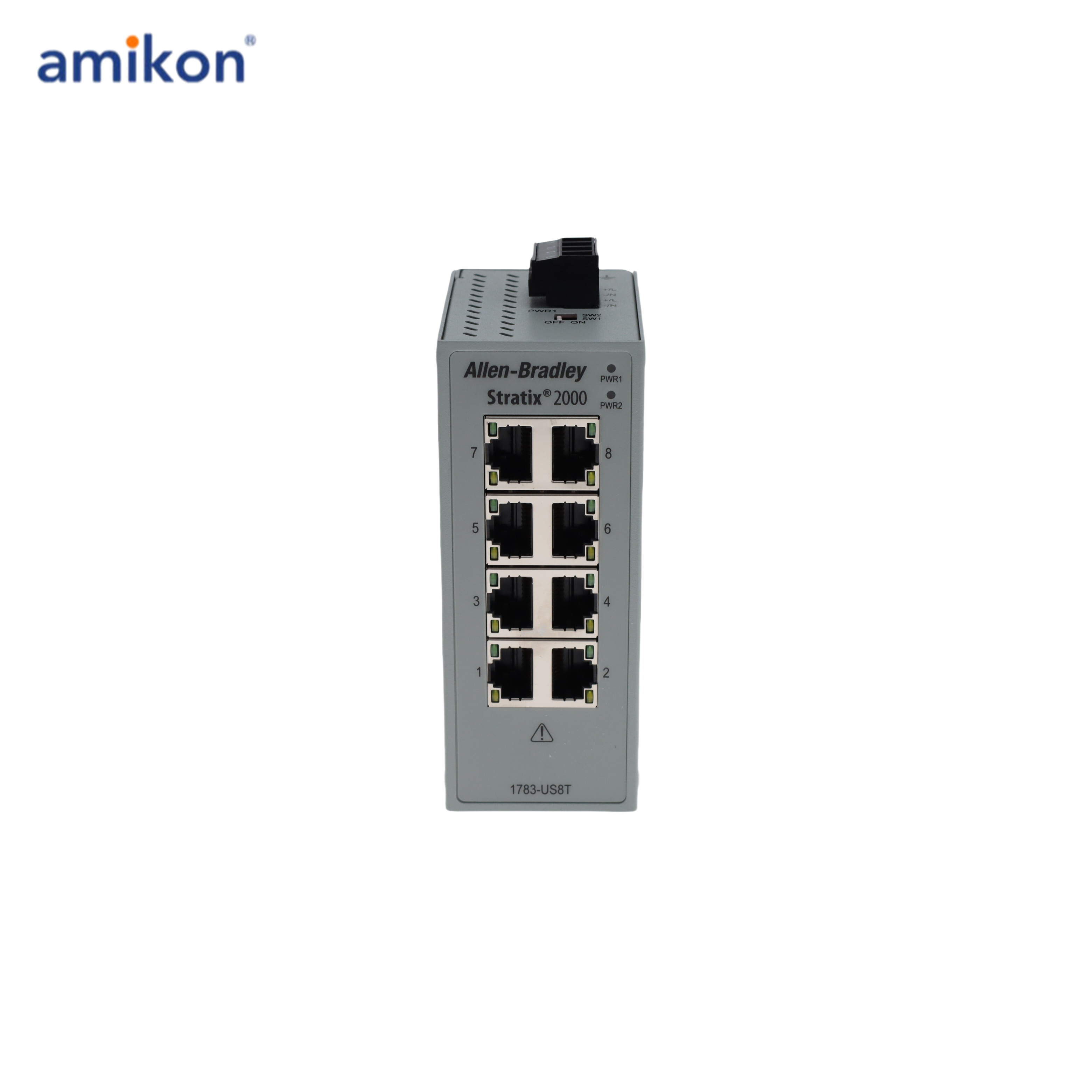

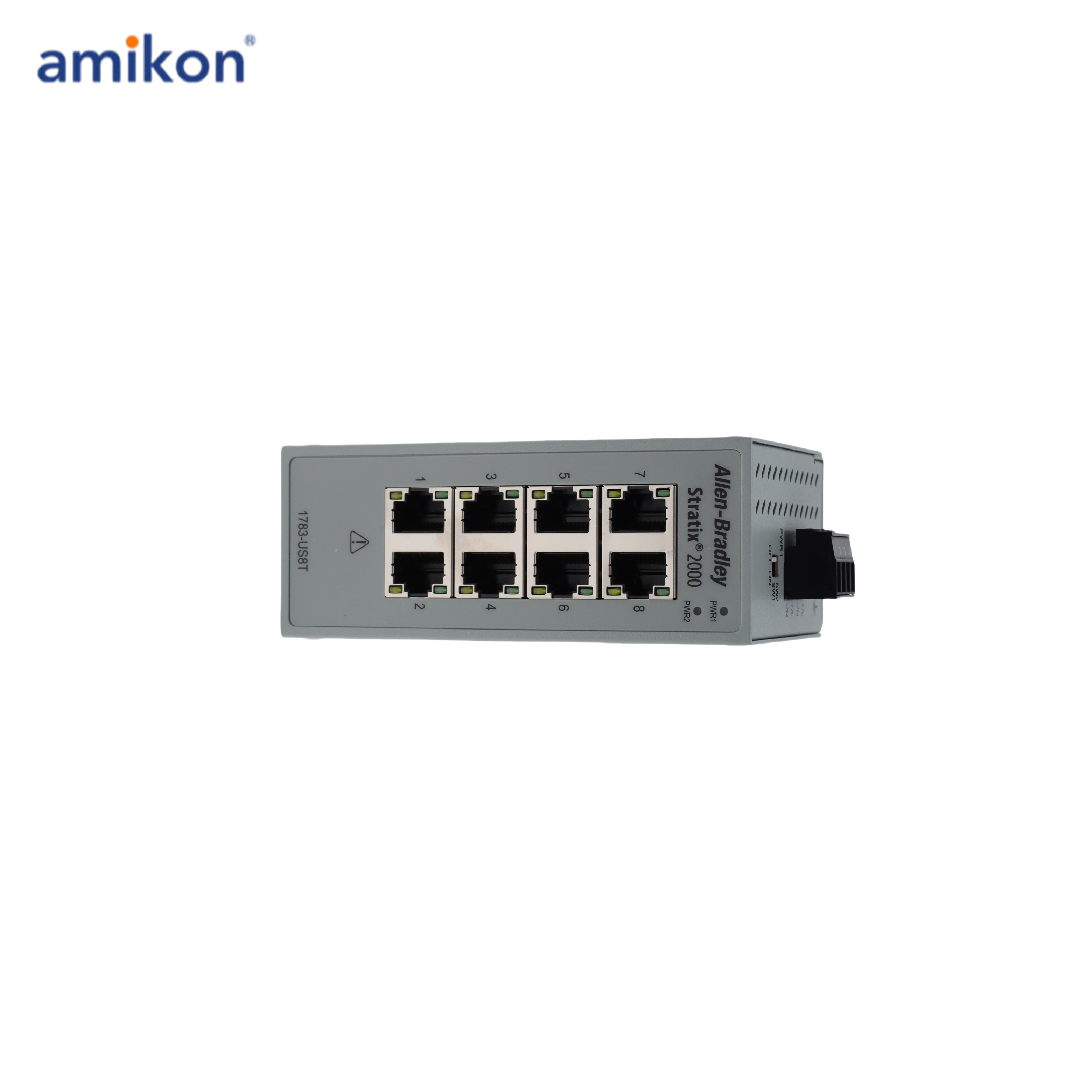

The 1783-US8T Ethernet switch is an unmanaged 8-port Ethernet switch. All 8 of its ports are fast Ethernet ports. The 1783-US8T unmanaged Ethernet switch does not have any SFP ports. It is made to be mounted on a DIN Rail and it does not have a protective enclosure.

1783-US8T Stratix 2000 Ethernet unmanaged switch has 8 RJ45 10-100 copper ports and an Ethernet data rate of 10-100 Mbps. This switch works with packet-based thresholds and it has broadcast storm thresholds of 20 packets per second (pps) for 10 Mbps per port and 200 pps for 100 Mbps per port. Yellow and green status indicators are also available, and these indicators have a 105-ms blink rate.

Technical specifications for 1783-US8T:
Part Number/Catalog No.:1783-US8T
Total Ports:8
RJ45 Ports:8 Fast Ethernet
SFP Ports :0
Max Inrush Current:1.31 A
Power Input:24V (12?48V DC, 18...30V AC, 50/60 Hz), SELV
Max Power Consumption:4.6 W
Nom Current:DC 250 mA; AC 500 mA
Max Current:DC 510 mA; AC 1100 mA
Wire Size: Ground Connection:2.5 mm2 (14 AWG) Copper Wire Suitable for 187 °F (86 °C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal
Wire Size: DC Power Connection:4.5?5.0 in?lb (0.50?0.56 N?m)
Power Terminal Screw Torque:8.05 in?lb
Max Ground Terminal Screw Torque:Open-Style/None
Enclosure Type Rating:4.50 x 3.02 x 1.80 in (114.5 x 76.8 x 45.6 mm)
