Product Specifications

Part Number	1794-IV32
Weight	0.56 lbs (0.26 kg)
Series	Flex I/O
Module Type	24 VDC Discrete Input Module
Number of Channels	32
Number of Inputs	32
Status Indicators	32 yellow status indicators
Nominal Input Voltage	24 VDC
Input Voltage Range	19.2 – 31.2 VDC
Minimum Onstate Voltage	19.2 VDC
Maximum Onstate Voltage	31.2 VDC
Minimum Onstate Current	2.0 mA
Nominal Onstate Current	4.1 mA @ 24 VDC
Maximum Onstate Current	6.0 mA
Backplane Current Draw @ 5.1V	40 mA
Compatible Mounting Base	1794 Mounting Base

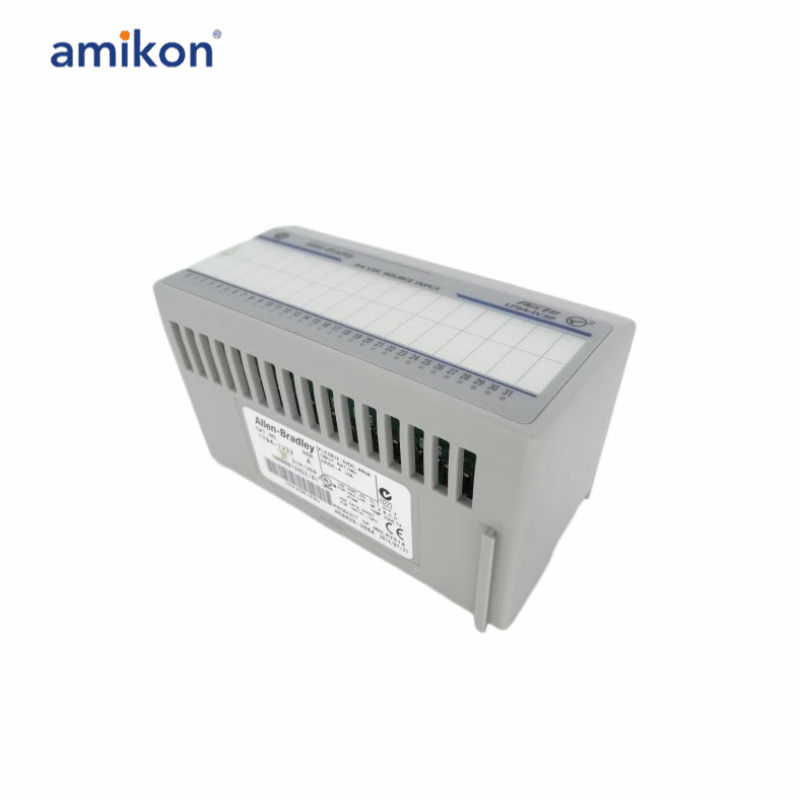

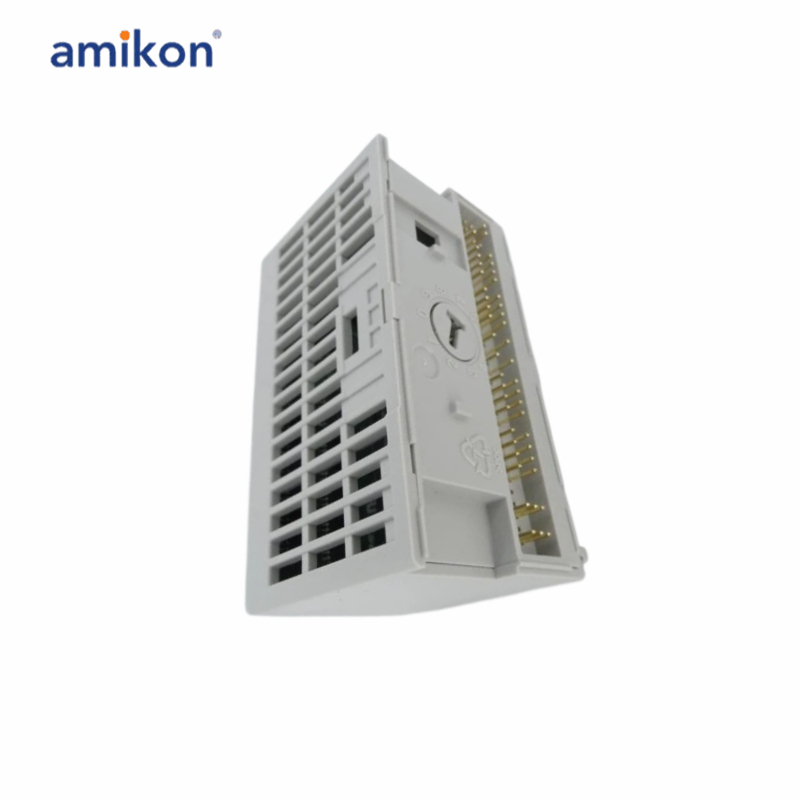

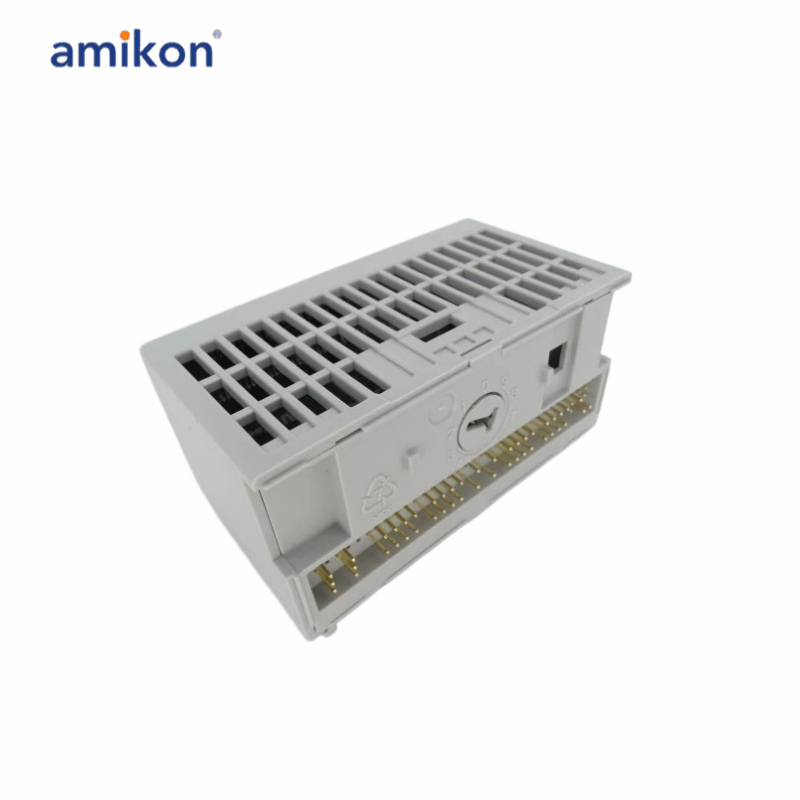

The 1794-IV32 is part of the Flex I/O platform, typically used in implementing distributed I/O topology. This module is specifically a high-density discrete input module that features Thirty-Two (32) current sourcing input channels. This module is designed to accept nominal input signal voltage of 24 VDC, enabling integration of discrete input signals such as switches, auxiliary contacts, sensors, and similarly binary operating devices. The 1794-IV32 is installed along with a Flex I/O assembly with a Flex I/O communication adapter as the header module. The data within the 1794-IV32’s local memory is transferred via the FlexI/O bus which is then forwarded to the host controller through a communication highway. The 1794-IV32 has a FlexBus current draw of 40 mA at 5 VDC. It has a minimum On-state voltage of 19.2 VDC while the maximum On-state voltage is 31.2 VDC. Additionally, the minimum On-state current is 2.0 mA while the maximum is 6.0 mA. Configurable filter times are available to this module specifically, 0.25 ms; 0.5 ms; 1 ms; 2 ms; 4 ms; 8 ms; 16 ms, and 32 ms. Filter times can be used to eliminate false activation due to debouncing or noises. The default filter time is 0.25 ms.

Frequently asked questions：

1.What are the available input filter times available to this module?
Available input filter times are 0.5 ms; 1 ms; 2 ms; 4 ms; 8 ms; 16 ms; and 32 ms.

2.What is the input voltage range of the 1794-IV32?
The 1794-IV32 accepts input signal voltage range of 19.2 - 31.2 VDC.

3.What is the number of input channels available to the 1794-IV32?
The 1794-IV32 has 32 input channels.

4.What is the input voltage signal accepted by the 1794-IV32?
The 1794-IV32 is designed to operate at 19-2 - 31.2 VDC.

5.Can I use the 1794-IV32 as distributed I/O module of PLC 5 series?
Yes Flex I/O modules are compatible with Flex I/O series.
