Product Specifications

Product Type	Flex I/O Terminal Base Unit
Product Line	Flex I/O 1794
Part Number	1794-TB3S
Weight	0.50 lbs (0.23 kg)
Current Rating	10A
I/O Quantity	16 I/O
Frequency Range	50 Hz ~ 60 Hz
Applicable Wire Size	22 to 12 AWG
Operating Temperature Range	-20°C ~ 70°C
Storage Temperature Range	-20°C ~ 85°C
Relative Humidity	5% ~ 95%, non-condensing
Vibration Resistance	5 g (10 Hz to 150 Hz)

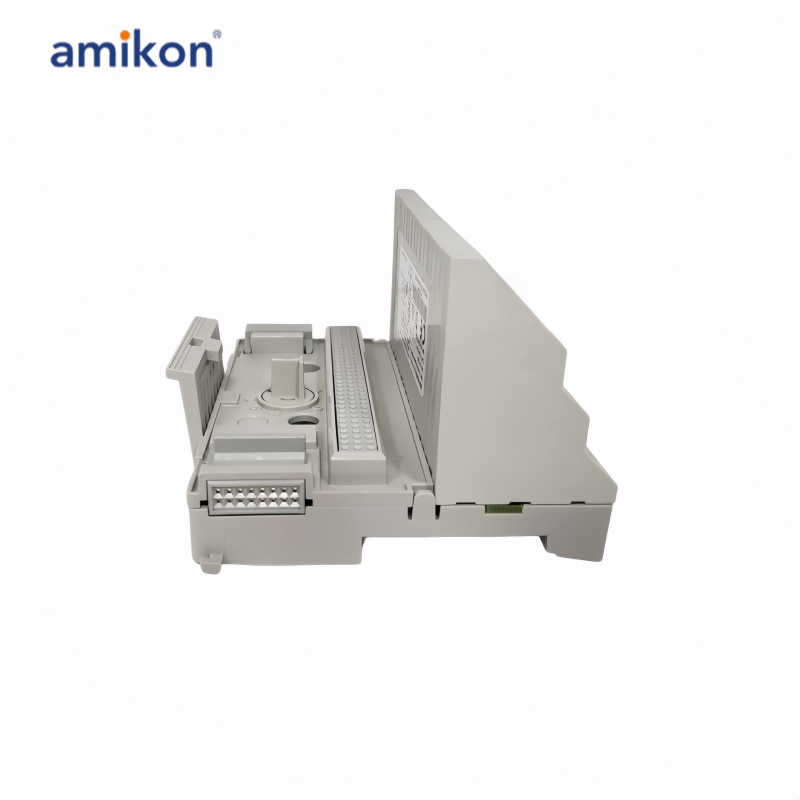

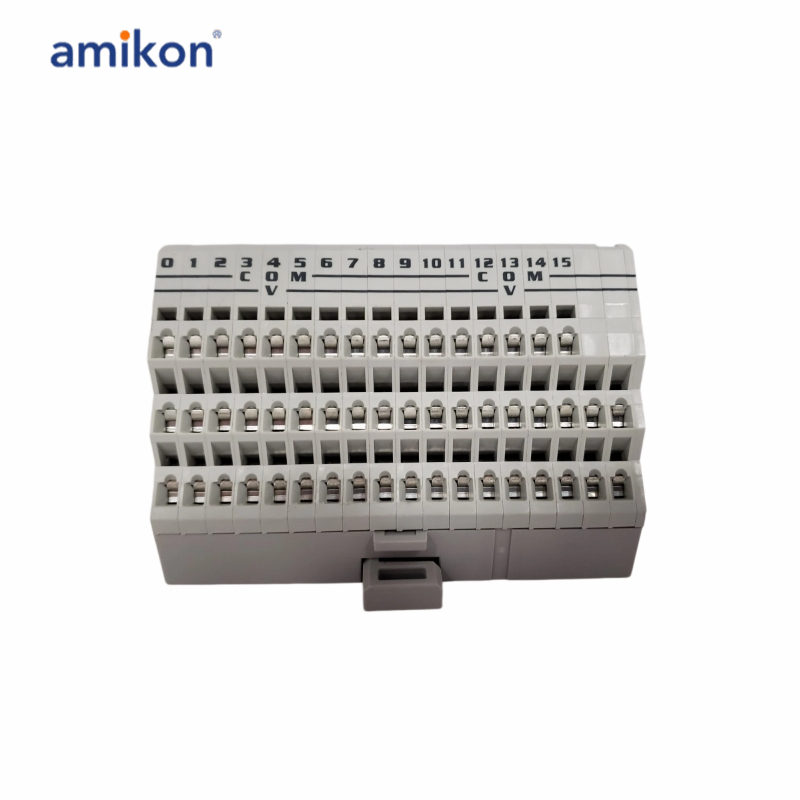

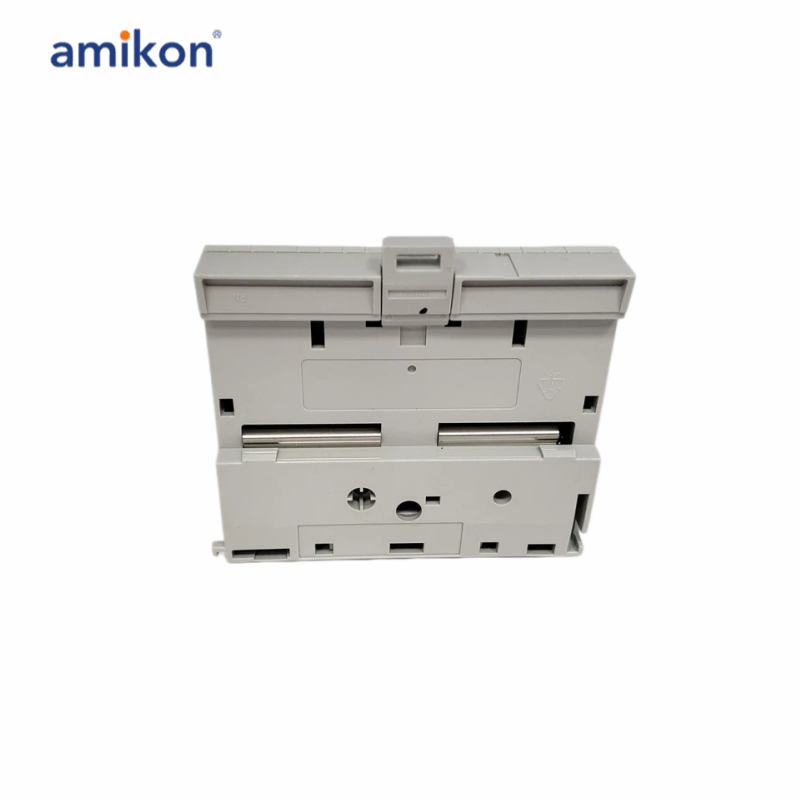

Within the Flex I/O 1794 series, the 1794-TB3S terminal base unit stands out for its practicality in industrial applications. Designed for efficient integration, this unit supports a total of 16 input and output channels, allowing for versatile connectivity to different devices. Its current rating is 10A, ensuring adequate power capabilities for connected modules.
The spring clamp designed for this terminal unit allows for easy assembly and wire connections, accommodating a wire size range of 22 to 12 AWG. This flexibility makes it suitable for a variety of wiring needs. In terms of environmental tolerance, the 1794-TB3S operates effectively in temperatures ranging from -20 to 70 degrees Celsius. Furthermore, it can be safely stored at temperatures from -20 to 85 degrees Celsius, making it resilient in varying operational conditions.

Frequently asked questions：

Q1: What is the 1794-TB3S used for?
A1:The 1794-TB3S is a FLEX I/O Terminal Base Unit used to provide wiring connections and mechanical support for FLEX I/O modules in industrial systems.

Q2: What is the current rating of the 1794-TB3S?
A2:The 1794-TB3S terminal base unit has a current rating of 10 A, allowing it to support industrial I/O applications requiring reliable power and signal distribution.

Q3: Why is the 1794-TB3S 10 A current rating important?
A3:The 1794-TB3S 10 A rating ensures the terminal base can safely handle the electrical loads associated with connected FLEX I/O modules and field devices.

Q4: What wire sizes are supported by the 1794-TB3S?
A4:The 1794-TB3S unit supports wire sizes from 22 AWG to 12 AWG, providing flexibility for various industrial wiring requirements.

Product Applications

Oil and Petrochemical
Cement and Mining
Iron and Steel Smelting
Shipbuilding and Offshore Engineering
