Technical specifications for 1797-IRT8

Part Number/Catalog No.	1797-IRT8
Product Type	FLEX Ex RTD Thermocouple I/O Module
Inputs	8
Input Type	Internal Bus Configurable
Signal Input Range	40 to 100 millivolts
Lead Resistance Compensation	15 Watts maximum
Settling Time	8 milliseconds
Module Field-side Power Consumption	1.6 Watts
Power Dissipation	1.6 Watts
Thermal Dissipation	5.46 BTU/hour maximum
Power Supply	9.5 Volts DC
Weight	200 grams

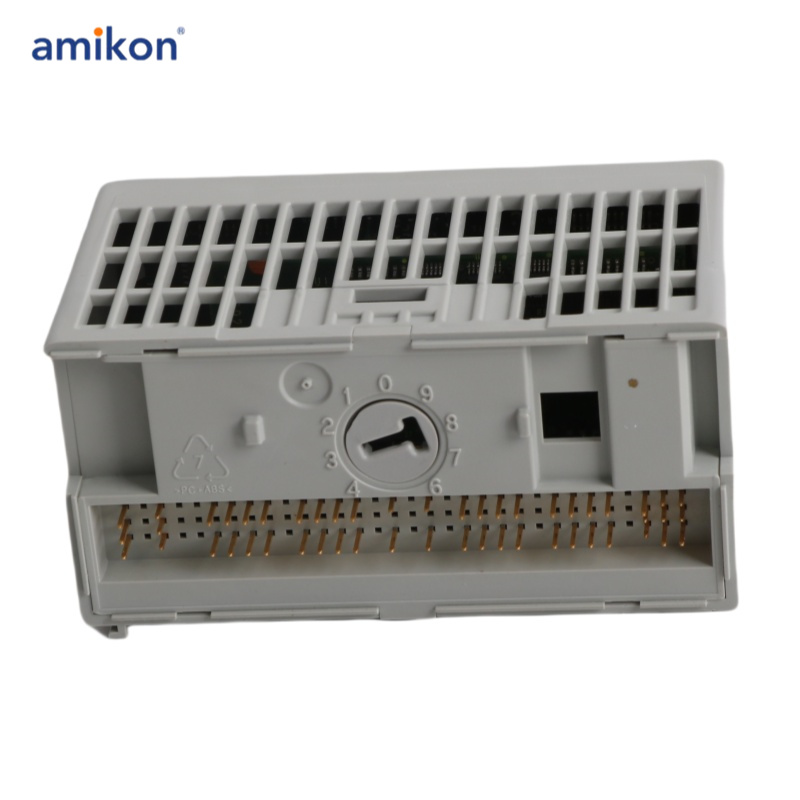

The 1797-IRT8 is a thermocouple input module designed for industrial environments. This module supports 8 input channels with a signal range of 0 to 485 ohms and -40 to 100 mV. It requires less than 9.5 Volts DC for power supply voltage and consumes less than 1 Amp of current. The module has a field-side power consumption of 1.6 Watts. The enclosure is rated IP20, meaning it is not water-resistant and should be used indoors, protected from water sprays or splashes. It connects using 12 AWG stranded cables and offers both DIN rail and panel mounting options.

The module measures 3.7 inches in length, 2.95 inches in width, and 1.8 inches in height. It operates in a temperature range of -4 to 158°F and is suitable for environments with 5 to 95% non-condensing humidity. The settling time for the module is 8 milliseconds to reach 99% of the final value. It includes 8 red fault indicators and a green power indicator. The module features configurable channels, which can be adjusted for different sensors. It also supports selectable input filters to enhance noise reduction, resolution, and performance. The module has certifications including C/US, UL, C-Tick, and marine-GL. Lead resistance compensation is less than 15 Watts, and total power dissipation is 1.6 Watts.
