Part Number	2094-BM01-M
Weight	2.81 kg
Nominal Drive Voltage	360-480V 3-Phase AC
Continuous Output Current	6.1 A
Peak Current	8.6 A
Nominal Continuous Output Power	3.9 kW
Power Dissipation	57-126 W
Voltage Class	400V
Efficiency	98%
Internal Shunt Continuous Power	50 W
Internal Shunt Peak Power	5.6 kW
Operating Temperature	0-50℃
Max Output Current	9 A
Product Type	Axis Module
Rated AC Voltage	460 V

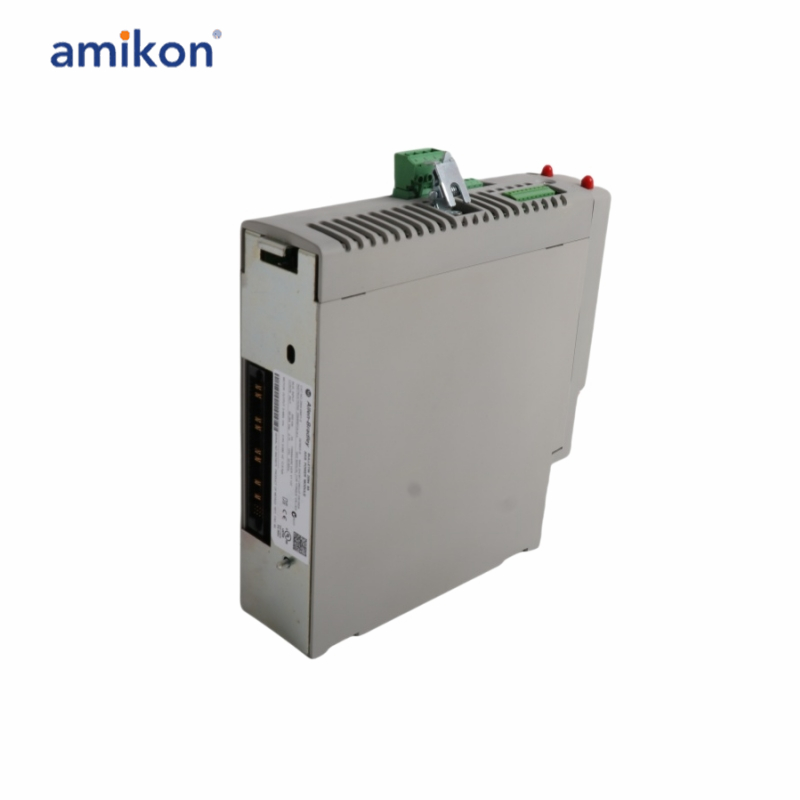

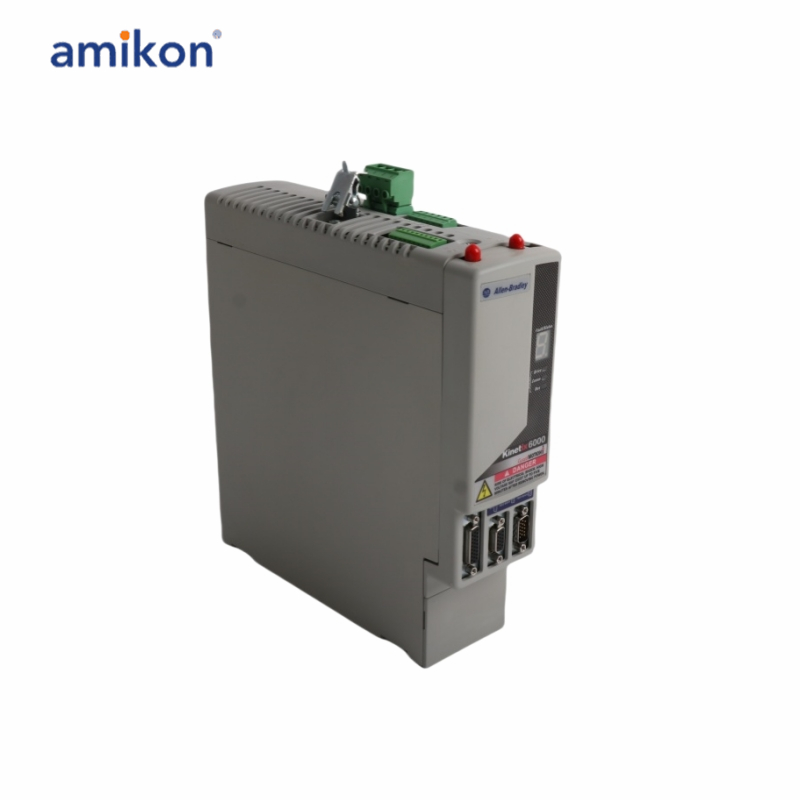

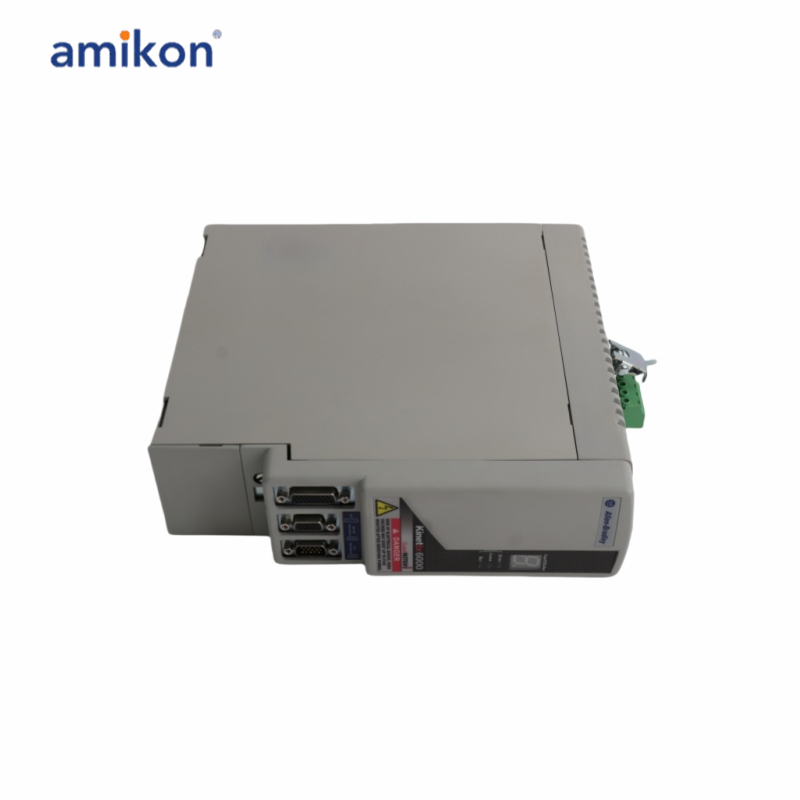

The 2904-BM01-M is an component designed for use with Kinetix 6000 Drives. This drive functions as an Axis Module (AM), belonging to the 400VAC voltage category with continuous current of 6.1 A and peak current of 15.3 A. Thos axis module also has an efficiency of 98% and short-circuit current rating of 200,000 A (rms) symmetrical.
The 2904-BM01-M is directly installed to a Kinetix drive power rail. It is typically installed beside the Integrated Axis Module (IAM), along the power rail where the module draws power to energize internal circuitry. This axis module is connected to motors and motion devices via feedback cables, auxiliary feedback cables, I/O and safety wiring. Axis Modules also allow installation of control modules for integration of control inputs to the module.
The 2904-BM01-M has Bandwidth velocity loop of 500Hz, and current loop frequency of 1300Hz with a Pulse Width Modulation (PWM) frequency of 4 kHz. This module is built with an internal shunt with continuous power of 50 W and peak power of 5.6 kW and internal shut resistor rating of 115 Ohms. Voltage rating when shunt on is 805VDC while for shunt off, voltage rating is 765VDC. This module has an efficiency of 98% with capacitance of 150 ?F and capacitance energy adsorption of 19 Joules.

Frequently asked questions：

1.What is the rated output power range of the 2904-BM01-M?
The 2904-BM01-M has a rated output power range of 57 Watts at 20%, 75 Watts at 40%, 90 Watts at 60%, 108 Watts at 8-% and 126 Watts at 100% loading.

2.Does this axis module come with an internal shunt and internal shunt resistor?
Yes, the 2904-BM01-M has an internal shunt resistor installed.

3.Does this module support safe torque off function?
No. Modules with catalog numbers ending in “S” are the ones supporting Safe Torqu-off feature.

Product Applications

Packaging and Assembly Line: Offers high dynamic response, used for high-speed filling, labeling, and packaging machinery.
Material Handling: Provides precise positioning control in conveyor belts and sorting systems.
Metal Forming and Processing: Drives servo presses and stamping equipment
