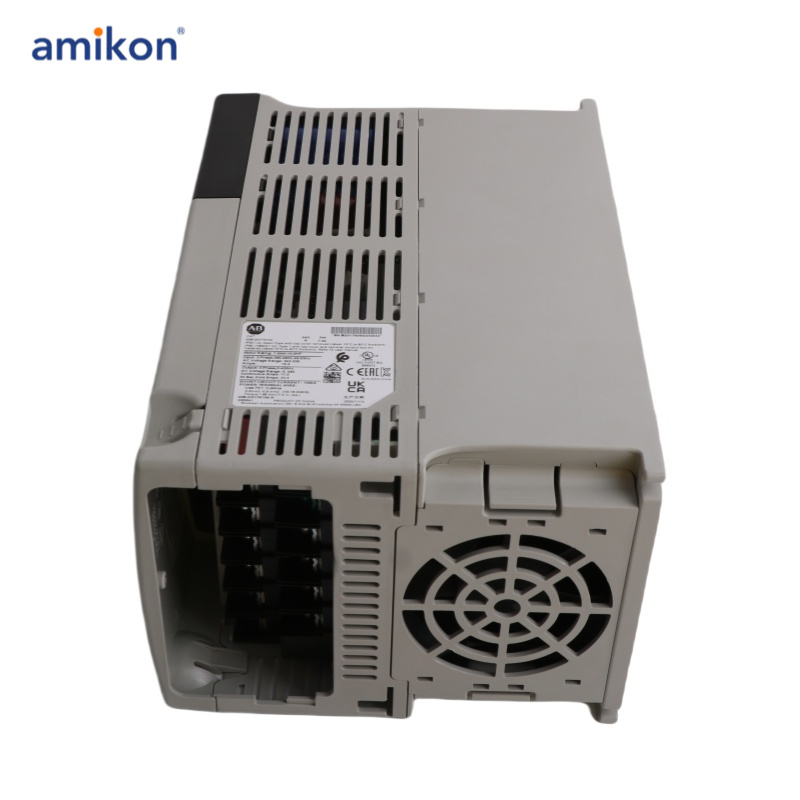

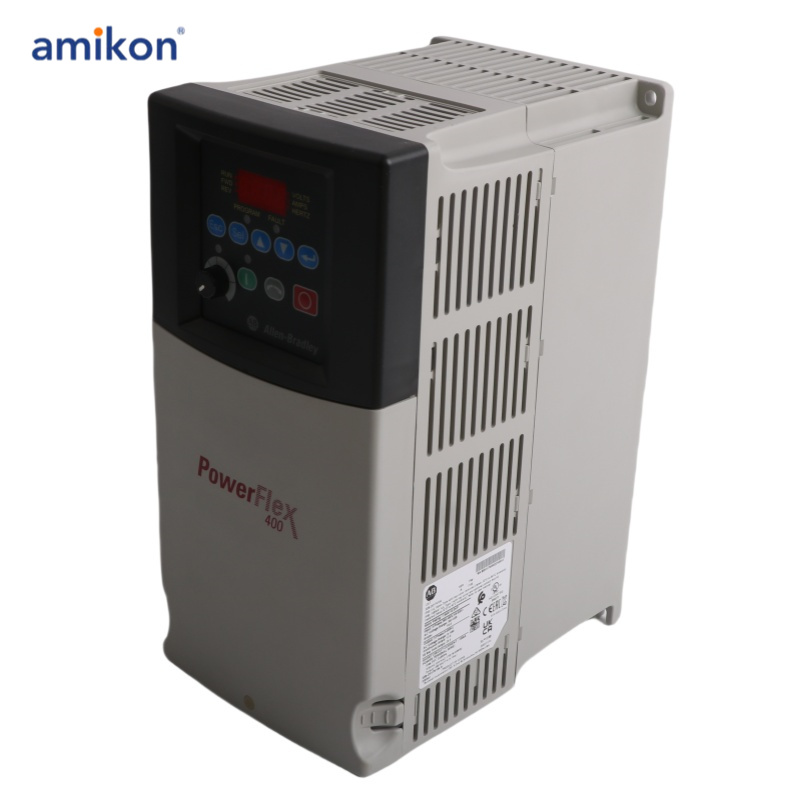

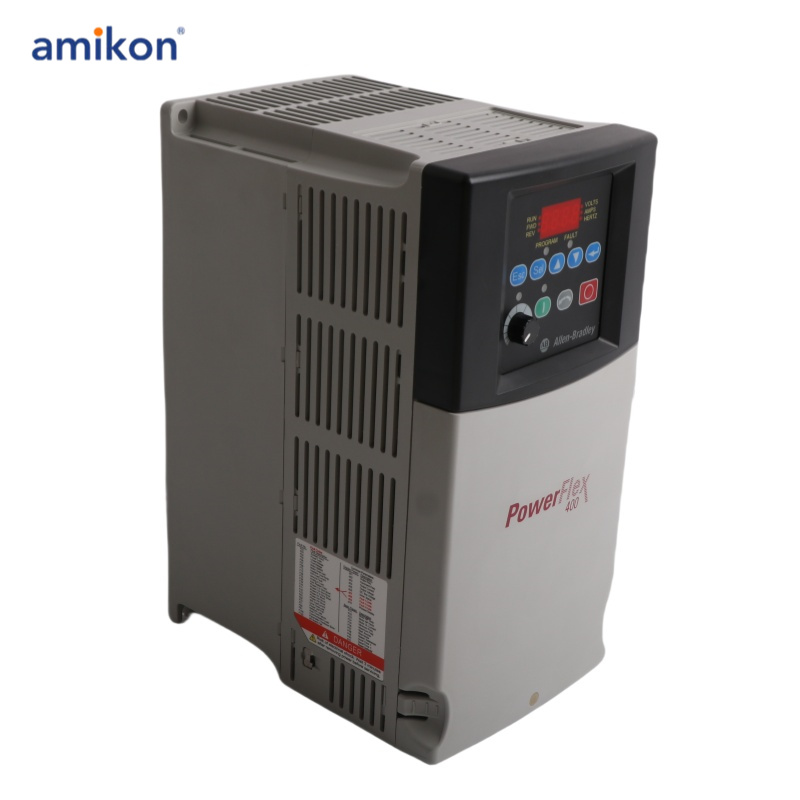

22B-D017N104 Variable Frequency Drive

22B-D017N104
22B-D017N104
22B-D017N104

22B-D017N104 Variable Frequency Drive

Brand new and original sealed//Same Day Shipment

  • Country of Origin:

    USA
  • Weight:

    0.35KG
  • Dimensions:

    12cmx10cmx8cm
  • Warranty Period:

    One Year Warranty
  • Payment Term:

    100% Advance Payment T/T Bank Wire Transfer

Technical specifications for 22B-D017N104

Part Number/Catalog No.

22B-D017N104

Product Line

PowerFlex 40

Voltage

480 Volts AC

Enclosure

Panel Mount - IP20, NEMA/UL Type Open

Horsepower

10 Horsepower

Amperage

17.0 Amps

Phase

3-Phase

Communication

RS-485

Input Type

Keypad

Input Voltage:

380-480VAC

Rated Current output:

17.0 A

Rated Power:

7.5 kW (10.0 HP)

Installation:

Panel Mount

Enclosure Rating:

IP20 / NEMA UL Type Open

Keypad:

LED Keypad

Built-in Communication port:

RS485

The 22B-D017N104 drive is an adjustable frequency AC drive from the compact PowerFlex40 series. This versatile drive features a human interface module (HIM) with a fixed digital keypad, an LCD display, and Essential RS-485 communications. It offers optional communication adapters for DeviceNet, ControlNet, Ethernet/IP, BACnet, and LonWorks networks.

The output current ratings of the 22B-D017N104 are 17.0 Amps at 380-480 Volts AC +/-10%. The drive supports output voltages ranging from 342 to 528 Volts AC and is rated for 10 Horsepower (7.5 kW). In case of overvoltage, it trips at 810 Volts DC bus voltage (575 Volts AC incoming line voltage), while it trips at 390 Volts DC bus voltage (275 Volts AC incoming line) in the event of under voltage.

The ambient operating temperature range for the 22B-D017N104 is 10-50°C (14-122°F) with panel mounting and an open IP20 NEMA/UL enclosure. Its storage temperature range is from 40-85°C (40-185°F). The drive offers minimum ride-through of 0.5 seconds, with typical ride-through being 2 seconds and faultless power ride-through at 100 milliseconds. Additionally, the 22B-D017N104 provides key features such as relay pre-charge, source control for wiring flexibility, overload protection, adjustable PWM frequency for quiet operation, sensorless vector control, and an integral IGBT brake mechanism. For use in ungrounded distribution systems, it includes a protective removable MOV to ensure reliable operation in industrial applications.
