Product Specifications

Part Number	2711-T10C8
Weight	8.00 lbs (3.63 kg)
Display Size	10.1 in.
Display Area	211 × 158 mm (8.3 × 6.2 in.)
Screen Resolution	640 × 480 pixels
Backlight Service Life	100,000 hours LED backlight
Touchscreen Grid	384 points (24 columns × 16 rows)
Touch Cell Size	26 × 30 pixels
Application Memory	1008K bytes (for application screens)
Communication Ports	Data Highway Plus (DH+), RS232 (printer interface)
Input Voltage Range	85～264V AC, 47～63 Hz
Operating Temperature	0～55 °C (32～131 °F)
Heat Dissipation	39 W (132 BTU/HR)

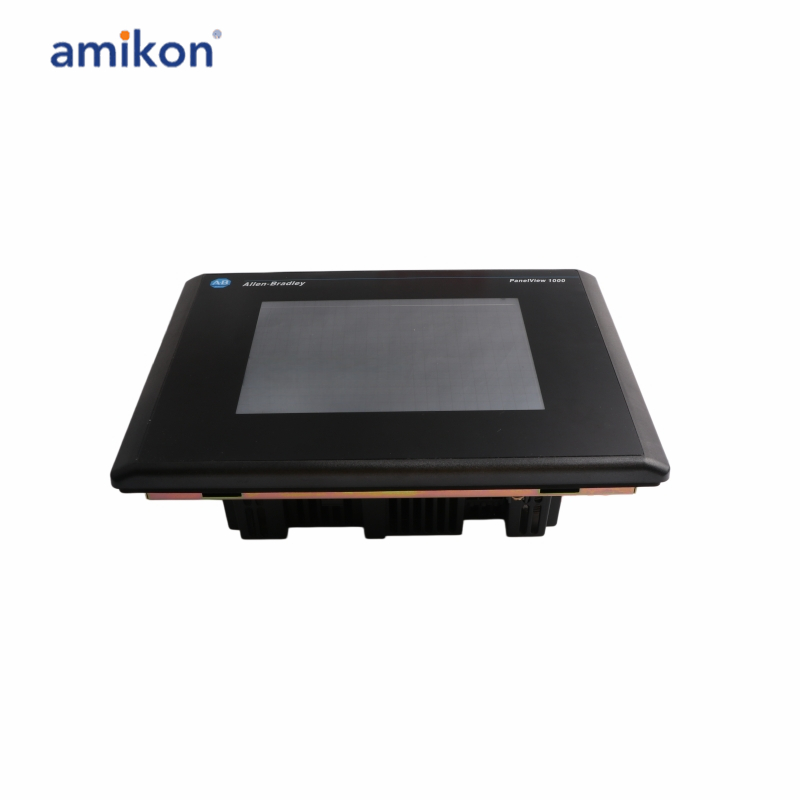

The graphic operator terminal with catalog number 2711-T10C8 is part of the 2711 PanelView Standard operator terminals. It is specifically part of the PanelView Plus 1000 operator terminals which comes with standard capabilities such as a 10.1-inch colored display screen with resolution of 640 x 480 pixels, touch input interface and integral 1008 Kbytes internal flash memory.

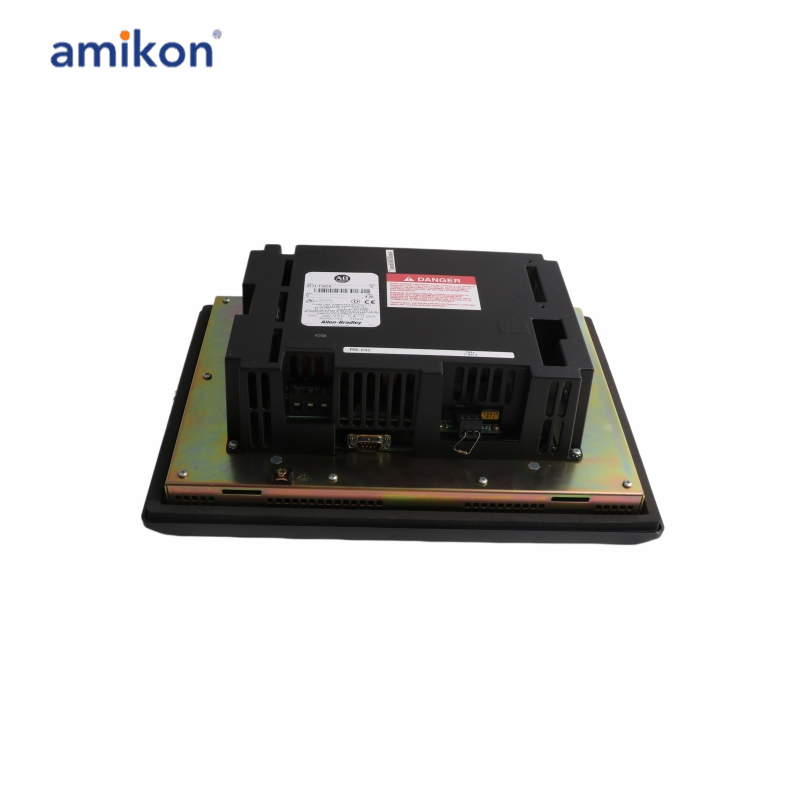

The 2711-T10C8 has specific feature provided by the built-in Data Highway Plus (DH+) communication port and RS232 Printer interface. The DH+ port is used for exchanging data with partner controllers such as PLC5, SLC500, and other PLC , even with 3rd party devices with support for DH+ protocol as well. DH+ uses a 3-wire cable, which may be implemented in long distances and support communication with one or more controllers. The secondary port which is the RS232 is used for communicating with alarm printers, enabling printing and documenting of alarms and events for historization and reports.

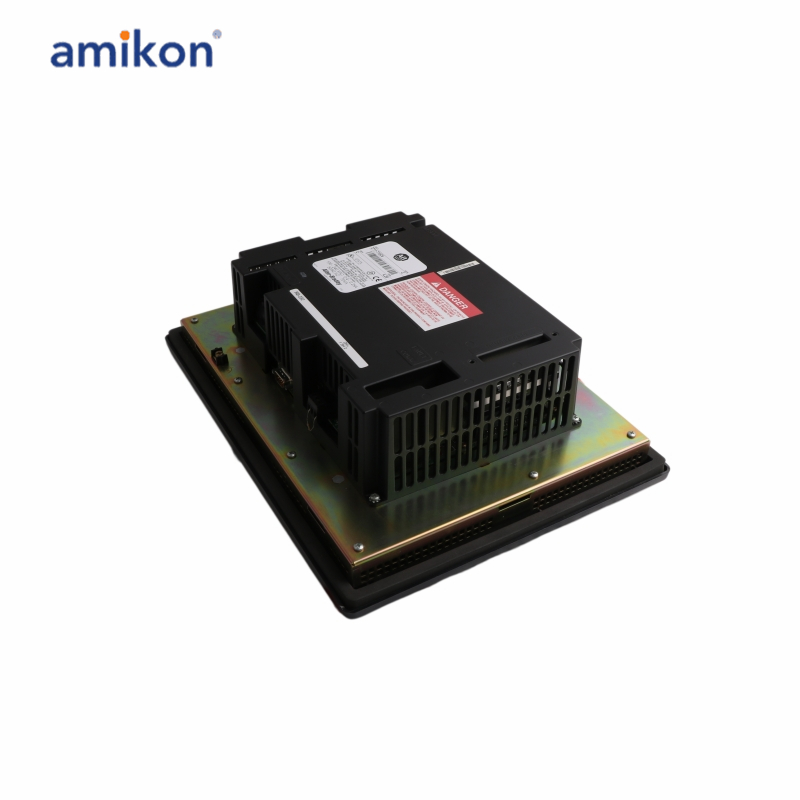

The 2711-T10C8 is a flush mounted to an enclosure and supports horizontal orientation only. It requires mounting clearance of 51 mm or 2 inches on all sides to ensure adequate air flow as well as working space for installation of additional components intended for the operator terminal.

Frequently asked questions：

Q1: What is the 2711-T10C8 Operator Terminal used for?
A1: The 2711-T10C8 is a PanelView operator terminal designed to provide a human-machine interface (HMI) for monitoring, controlling, and interacting with industrial systems.

Q2: What power source does the 2711-T10C8 require?
A2: The 2711-T10C8 terminal operates on a power source rating of 100 to 240 VAC.

Q3: How much memory is available in the 2711-T10C8 terminal?
A3: The 2711-T10C8 is equipped with 256 KB of memory for application storage and operation.

Q4: What is the operating temperature range of the 2711-T10C8 terminal?
A4: The 2711-T10C8 operating temperature range is 0°C to 55°C (32°F to 131°F).

Q5: What is the 2711-T10C8 heat dissipation rating of the unit?
A5: The 2711-T10C8 terminal has a heat dissipation rating of 39 W (132 BTU/hr).

Product Applications

Automobile Manufacturing
Discrete Manufacturing and Packaging
Food and Beverage Processing
Metallurgy and Water Treatment
