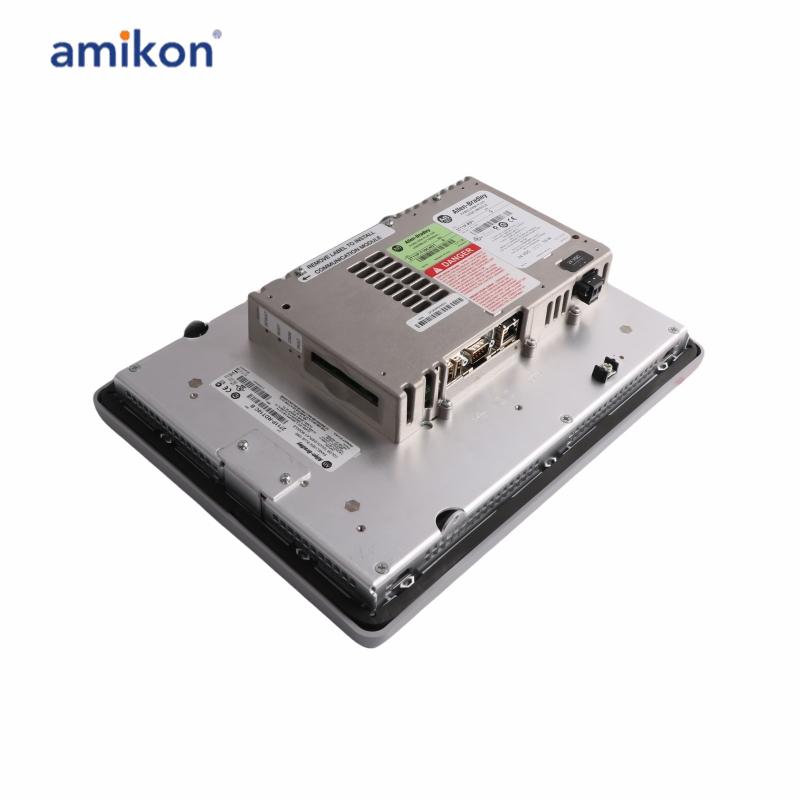

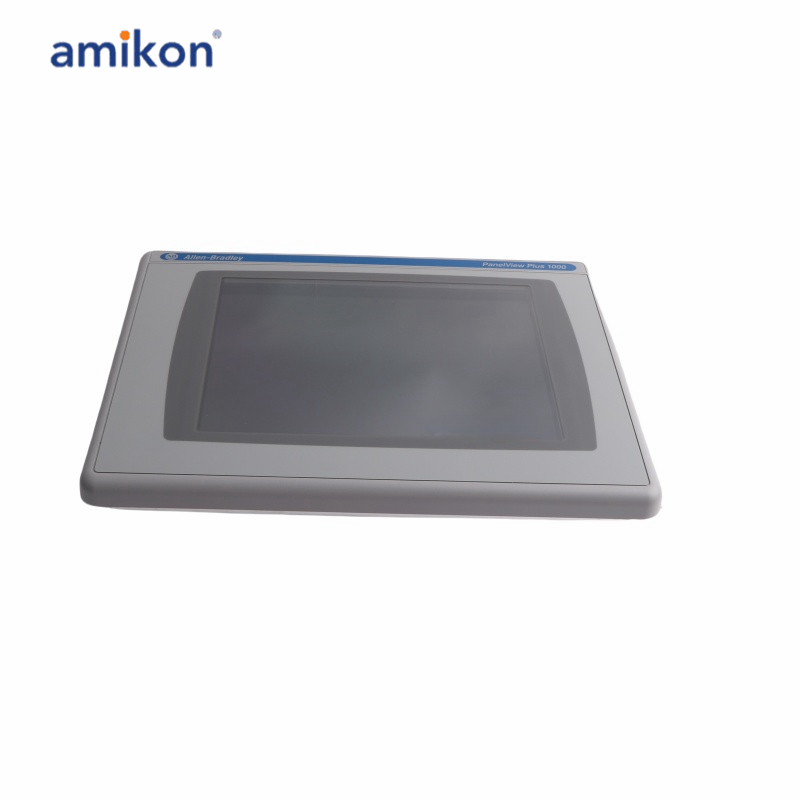

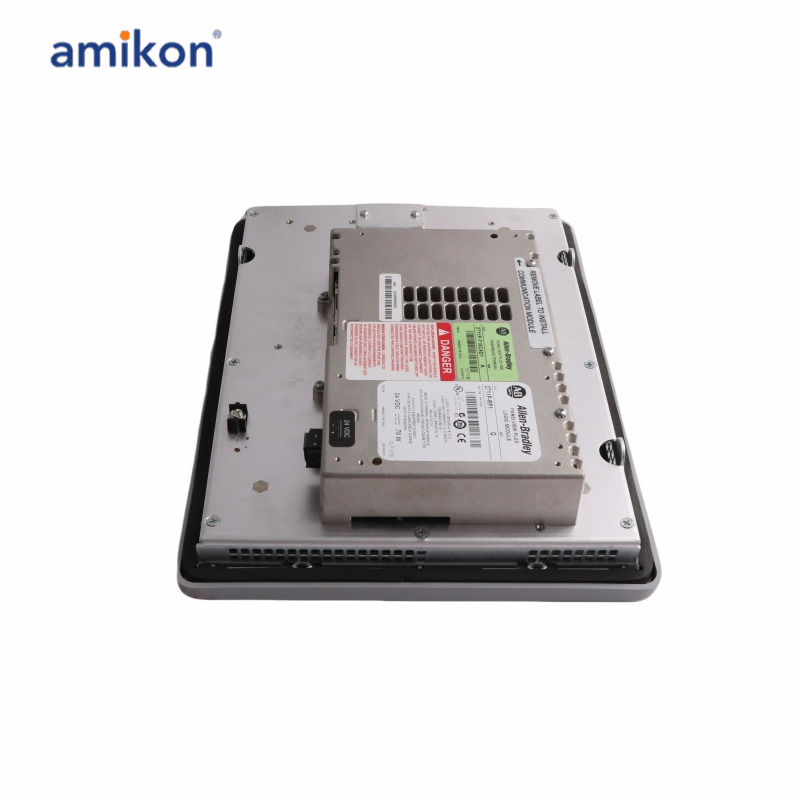

2711P-T10C4D1 PanelView Plus 1000 Operator Terminals

Product Type: PanelView Plus 1000 Operator Terminal
Product Line: PanelView Plus 1000
Part Number: 2711P-T10C4D1
Weight: 6.00 lbs (2.72 kg)
Product Family: PanelView Plus Operator Terminals
Display Size: 10.4 in
Display Area: 211 × 158 mm (8.3 × 6.2 in.)
Resolution: 640 × 480
Display Color: Color
Backlight: CCFL, 50,000 hours minimum life
Operator Input: Touch
Input Type: Analog Resistive Touchscreen
Touchscreen Life: 1 million presses
Actuation Force: 10–110 g
Internal Memory: 64 MB Flash Memory
Memory: 64 MB
Input Voltage Range: 18–32 VDC
Input Power: 18–32 VDC
Communication: Ethernet and RS-232

The 2711P-T10C4D1 is an PanelView Plus 1000 operator terminal. This operator terminals is used to provide real-time monitoring and control of machines or processes in the factory level. By exchanging data with partner devices such as PLC, PAC, gateways, stand-alone controllers and 3rd party devices, the logic and data residing within the memory of the mentioned devices can be modified. The operator is provided with a graphical interfaces that represents the process, allowing a user-friendly control and monitoring interface.
The 2711P-T10C4D1 allows operation of process via the analog resistive touchscreen interface that is designed up to 1 million actuations at an actuation force of 10-110 g. It comes with 64 MB Random Access Memory (RAM) and 64 MB Flash Memory. This operator terminal is powered by an external supply voltage of 24VDC.

Frequently asked questions：

1.What is the 2711P-T10C4D1?
The 2711P-T10C4D1 is a PanelView Plus 1000 Operator Terminal manufactured for industrial HMI applications.
2.What is the display resolution of the 2711P-T10C4D1?
The resolution is 640 × 480 pixels.
3.What is the actuation force of the 2711P-T10C4D1 touch screen?
The actuation force ranges from 10–110 g.
4.What is the internal memory of the 2711P-T10C4D1?
The terminal includes 64 MB Flash memory.
5.How much total memory does the 2711P-T10C4D1 provide?
It provides 64 MB of memory.
