brand new 2711P-T12W22D9P PanelView Plus 7 Performance operator terminal,2711P-T12W22D9P PanelView Plus 7 Performance operator terminal suppliers,2711P-T12W22D9P PanelView Plus 7 Performance operator terminal manufacturers,factories

Technical specifications for 2711P-T12W22D9P

Display Type	Color active-matrix TFT
Display Size	12.1 in. ; wide screen
Part Number/Catalog No.	2711P-T12W22D9P
Product Family:	PanelView Plus 7 Performance terminals
Operator Input:	Touch
Display Area:	261 x 163 mm (10.3 x 6.4 in.)
Resolution:	1280 x 800 WXGA, 18-bit color graphics
Communication ports:	Two (2) Ethernet, Three (3) USB host
Input Voltage range:	18-30 VDC
Power Consumption:	50 W max (2.1 A at 24V DC)
Product Line	Panelview Plus 7
Product Type	Human-Module Interface
Input Type	Touchscreen
Memory	512 Mb
Input Voltage	24 Volts DC
Backlight	LED
Weight	5.6 pounds
Dimensions	24.6 x 13.39 x 6.9 centimeters

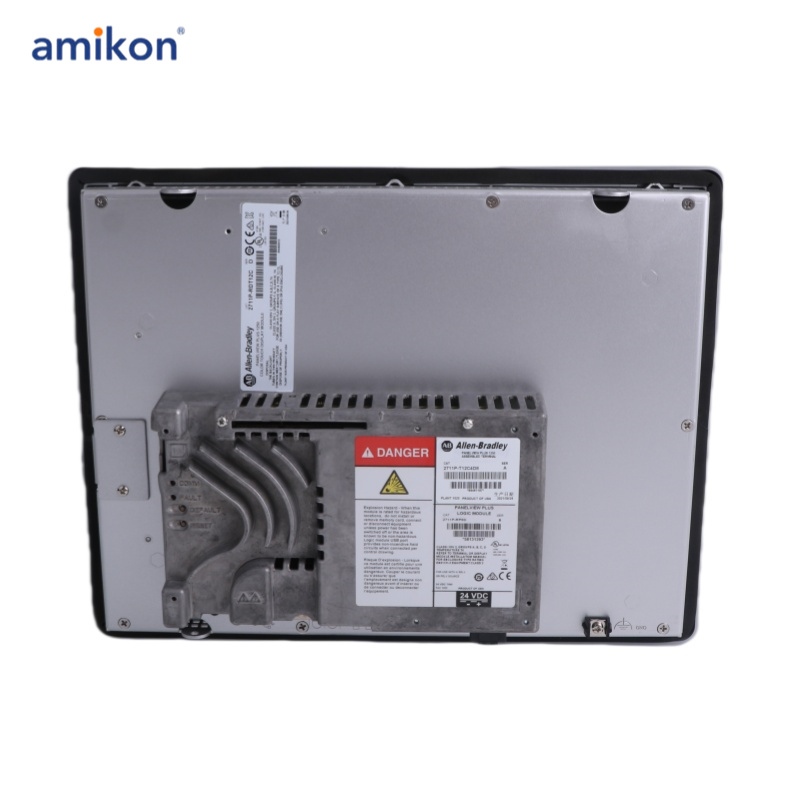

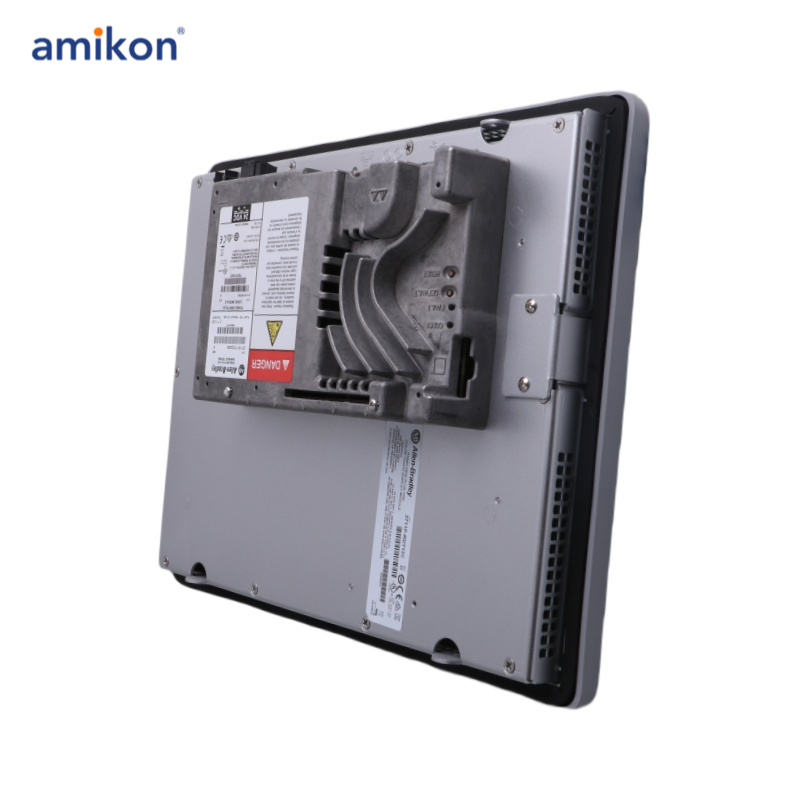

The 2711P-T12W22D9P is part of the PanelView Plus 7 performance operator terminals series. This electronic device is a Human Machine Interface (HMI) component designed to facilitate real-time communication and data exchange between Programmable Automation Controllers (PAC), Programmable Logic Controllers (PLC), third-party devices, and other compatible systems.

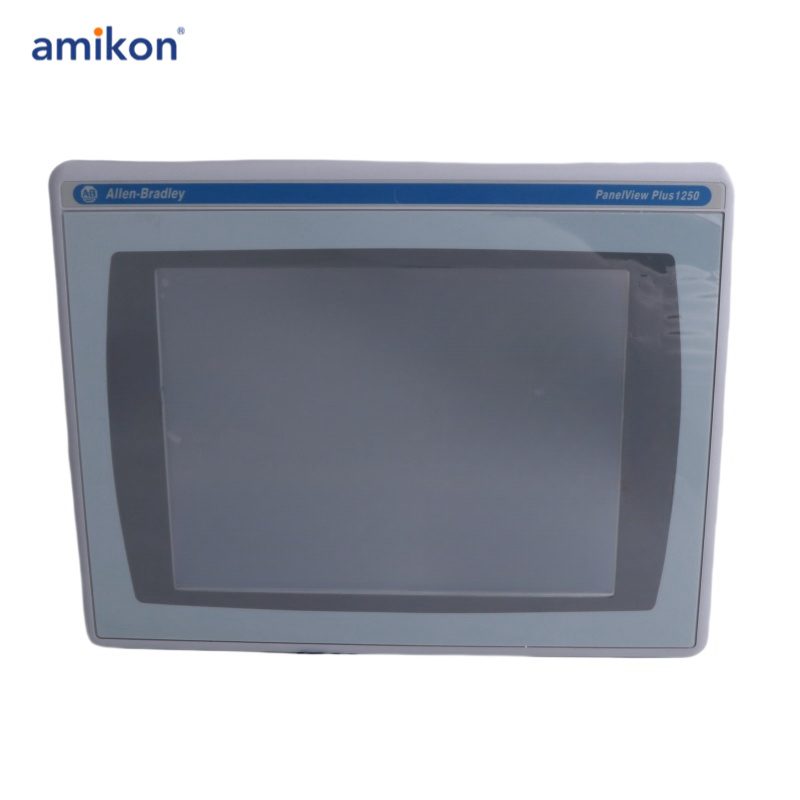

The 2711P-T12W22A9P features a widescreen display with a resolution of 1280 x 800 WXGA and 18-bit color graphics. Operator interaction is enabled through an embedded analog resistive touchscreen interface, which has an actuation rating of 1 million presses. This HMI device communicates with partner automation systems via embedded dual Ethernet communication ports, supporting various network topologies such as linear, star, and Device Level Ring (DLR).

The 2711P-T12W22A9P supports flush mounting to enclosures rated NEMA and UL Type 12, 13, 4X, and is also rated IP66 as classified by UL. It can be installed in both horizontal and vertical orientations, as the display supports screen rotation. However, this feature is not dynamic and must be configured prior to the development of the HMI application.

This operator terminal operates within a temperature range of 0…55 °C (32…131 °F) and can withstand non-operating temperatures of -25…+70 °C (-13…+158 °F). It is designed for operating altitudes of up to 2000 m (6562 ft) and relative humidity levels of 5…95% without condensation. Additionally, it has an operating vibration rating of 2 g peak at 57…500 Hz and a shock rating of 15 g at 11 ms.
