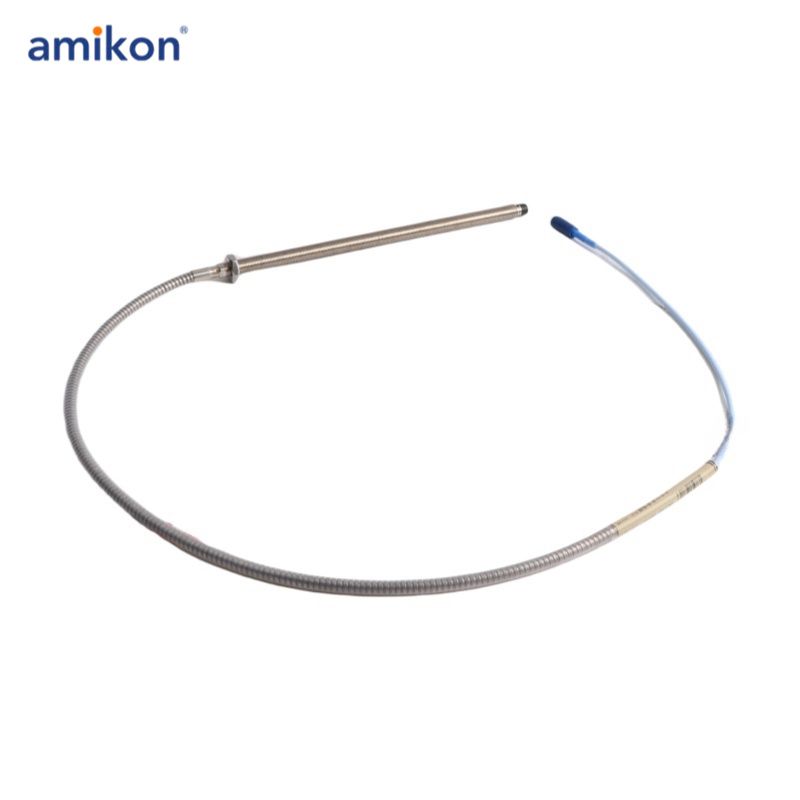

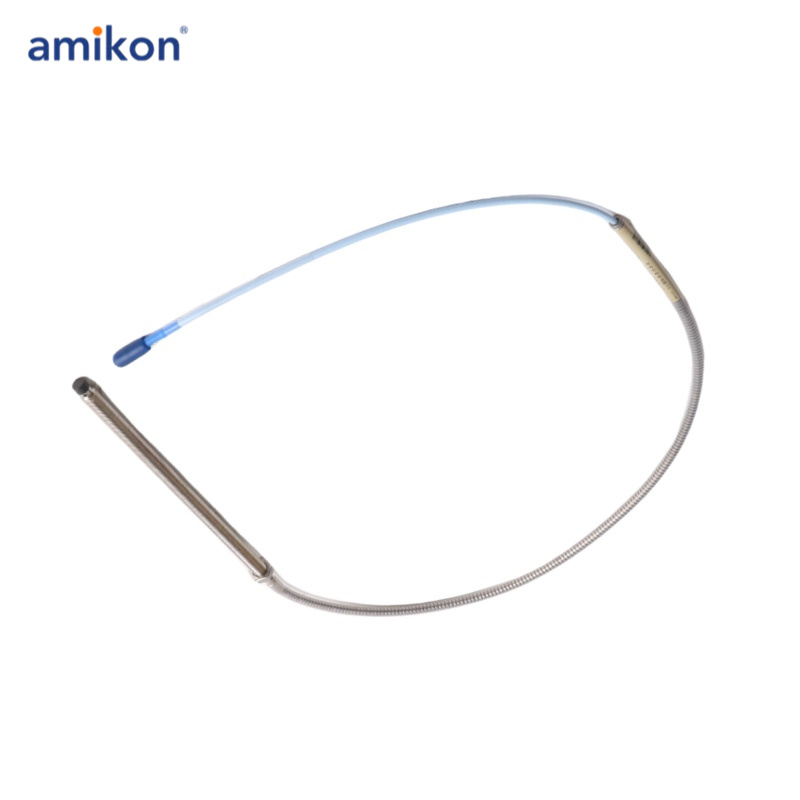

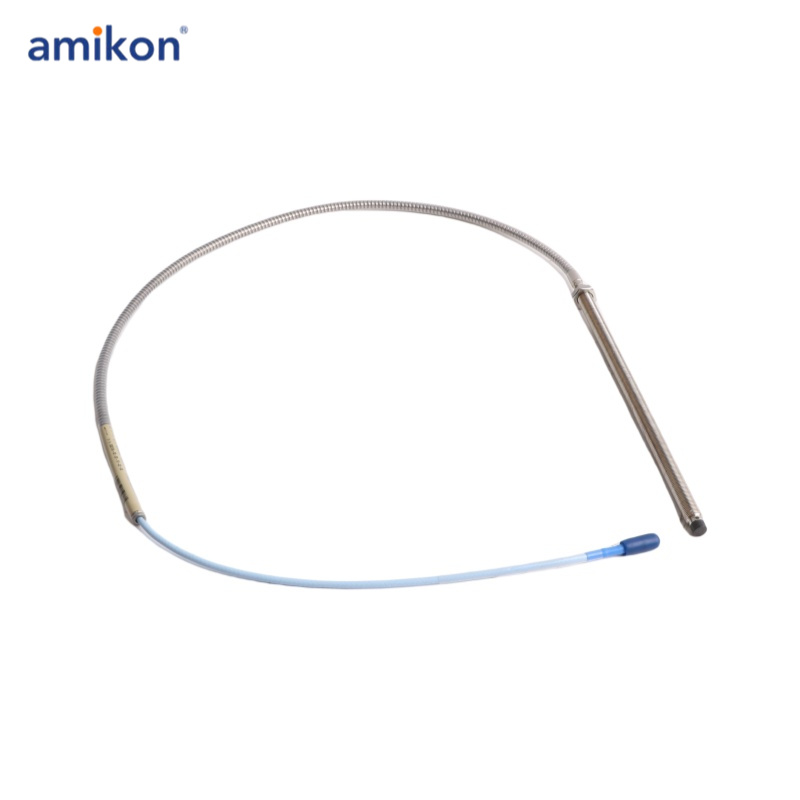

330104-00-08-50-12-00 Bently nevada 3300 XL 8 mm Proximity Probes

The system provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. It is capable of both static (position) and dynamic (vibration) measurements, and is primarily used for vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor® and speed measurement applications.

The 330104-00-08-50-12-00 3300 XL 8 mm system represents our most advanced performance in an eddy current proximity transducer system. The standard 330104-00-08-50-12-00 3300 XL 8 mm 5 metre system is also 100% compliant with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level of performance while allowing complete interchangeability of probe, extension cable,and Proximitor® Sensor without the need for individual component matching or bench calibration.

Each component of the 330104-00-08-50-12-00 3300 XL 8 mm Transducer System is backward compatible and interchangeable3 with other non-XL 3300 series 5 and 8 mm transducer system components. This includes the 3300 5 mm probe, which is used when an 8 mm probe is too large for the available mounting space.

The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc* molding method provides a more robust bond between the probe tip and the probe body.

The probe’s cable incorporates a patented CableLoc* design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc* cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.

Manufacturer : Bently Nevada
Product No. : 330104-00-08-50-12-00
Product Type : 3300 XL 8 mm Proximity Probes
Unthreaded Length Option : 00 - 0mm
Overall Case Length Option : 08 - 80mm
Total Length Option : 50 - 5.0 metres (16.4 feet)
Connector and Cable-Type Option : 12 - Miniature coaxial ClickLoc™ connector, FluidLoc® cable
Agency Approval Option : 00 - Not required
