The 3300 XL 11 mm Proximity Transducer System is a high-performance solution for non-contacting vibration and displacement measurements on fluid film bearing machines. It includes the following components:
3300 XL 11 mm Probe
3300 XL 11 mm Extension Cable
3300 XL 11 mm Proximitor Sensor

This system delivers a 3.94 V/mm (100 mV/mil) output and features a large 11 mm tip, providing a longer linear range compared to the standard 3300 XL 8 mm Transducer System. Its extended measurement capabilities make it ideal for demanding applications.
Primary Applications:
Axial (Thrust) Position Measurements
Ramp Differential Expansion Measurements on Steam Turbines
Rod Position or Rod Drop Measurements on Reciprocating Compressors
Tachometer and Zero Speed Measurements
Phase Reference (Keyphasor) Signals

330703-000-026-50-02-CN Key Features and Benefits:
Extended Linear Range: The 11 mm tip allows for greater measurement flexibility and accuracy in critical applications.
High Sensitivity: With a 3.94 V/mm (100 mV/mil) output, it ensures precise detection of vibration and displacement.
Versatility: Suitable for a wide range of industrial applications requiring reliable non-contact measurements.
This system is designed to meet the needs of applications where a longer linear range and high precision are essential. Let us know if you need further details or assistance!

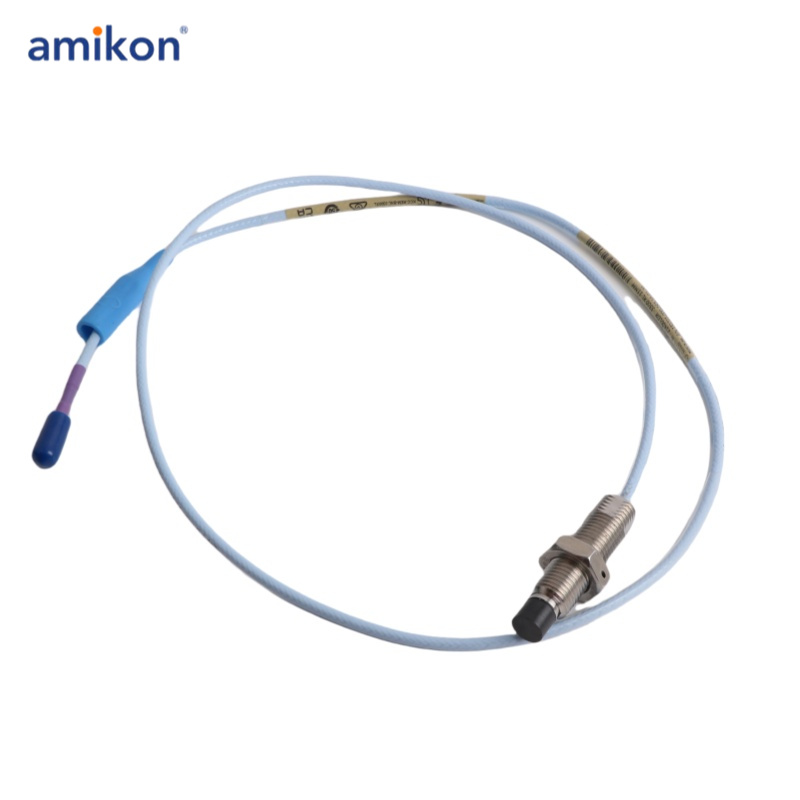

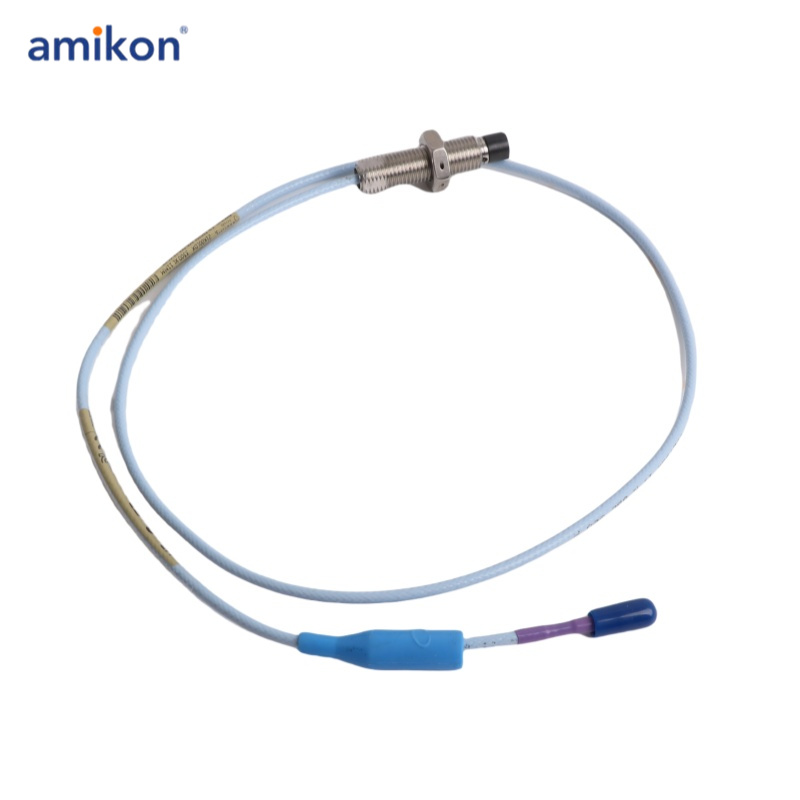

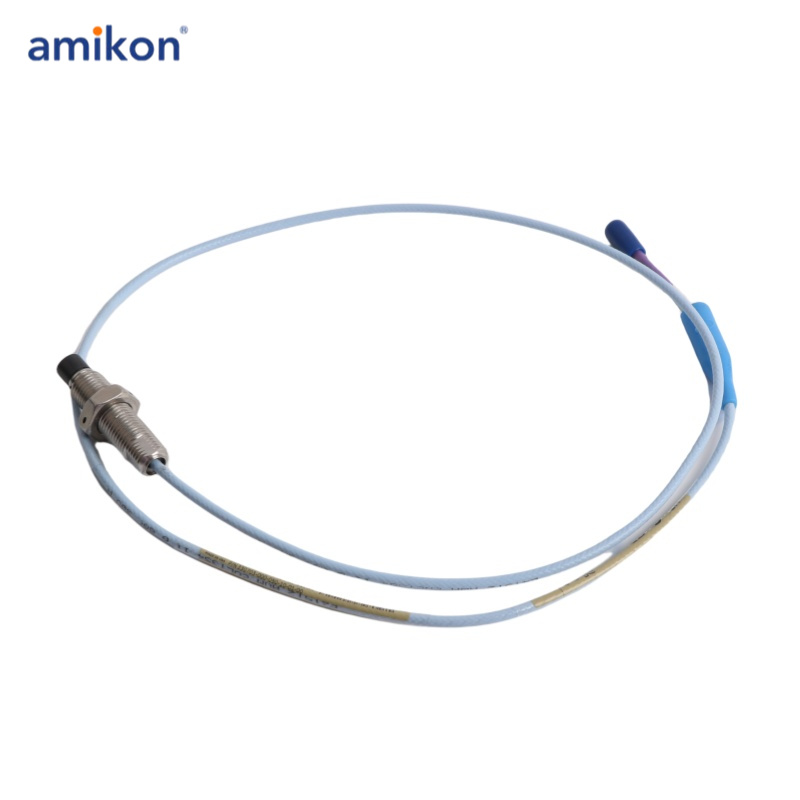

330703-000-026-50-02-CN 3300 XL 11 mm Probe, M14 x 1.5 thread,without armor

A:Unthreaded Length Option	B: Overall Case Length Option	C: Total Length Option	D: Connector and Cable-Type Option	E: Agency Approval Option
Order in increments of 2 mm. Length configuration: Maximum unthreaded length: 224 mm Minimum unthreaded length: 0 mm Example: 0 6 0 = 60 mm	Order in increments of 2 mm. Metric thread configurations: Maximum length:250 mm Minimum length:26 mm Example: 0 6 0 = 60 mm	10 1.0 meter (3.3 feet) 50 5.0 meters (16.4 feet) 90 9.0 meters (29.5 feet)	01 Miniature coaxial ClickLoc connector with connector protector, standard cable 02 Miniature coaxial ClickLoc connector, standard cable 11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable 12 Miniature coaxial ClickLoc connector, FluidLoc cable	00 Not required 05 Multiple Approvals
