brand new 330905-00-23-05-01-00 Bently Nevada 3300 NSv Proximity Probes,330905-00-23-05-01-00 Bently Nevada 3300 NSv Proximity Probes suppliers,330905-00-23-05-01-00 Bently Nevada 3300 NSv Proximity Probes manufacturers,factories

The 330905-00-23-05-01-00 3300 XL NSv* Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:

-a 3300 NSv probe
-a 3300 NSv extension cable
-a 3300 XL NSv Proximitor* Sensor.

The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada* 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
- Radial vibration and radial position measurements
-Axial (thrust) position measurements
-Tachometer and zero speed measurements
-Phase reference (Keyphasor*) signals

The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer
System must replace the probe, extension cable and Proximitor Sensor with NSv components.

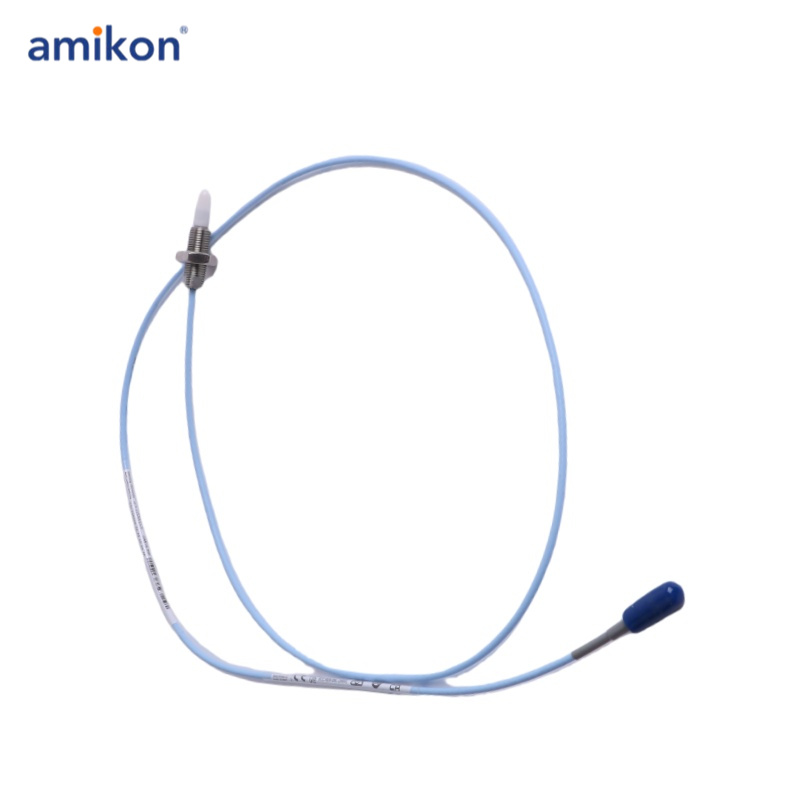

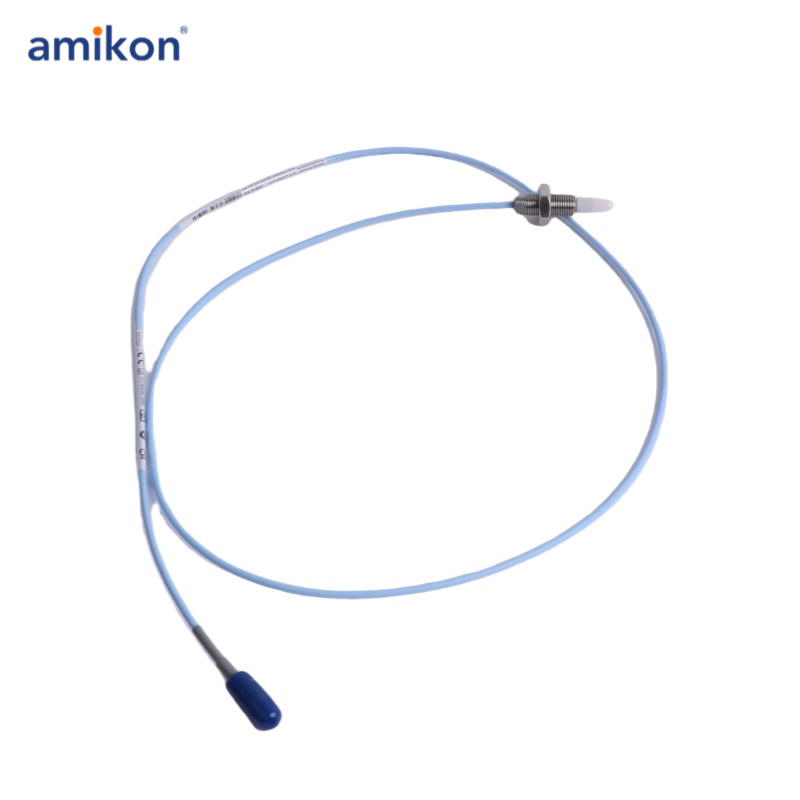

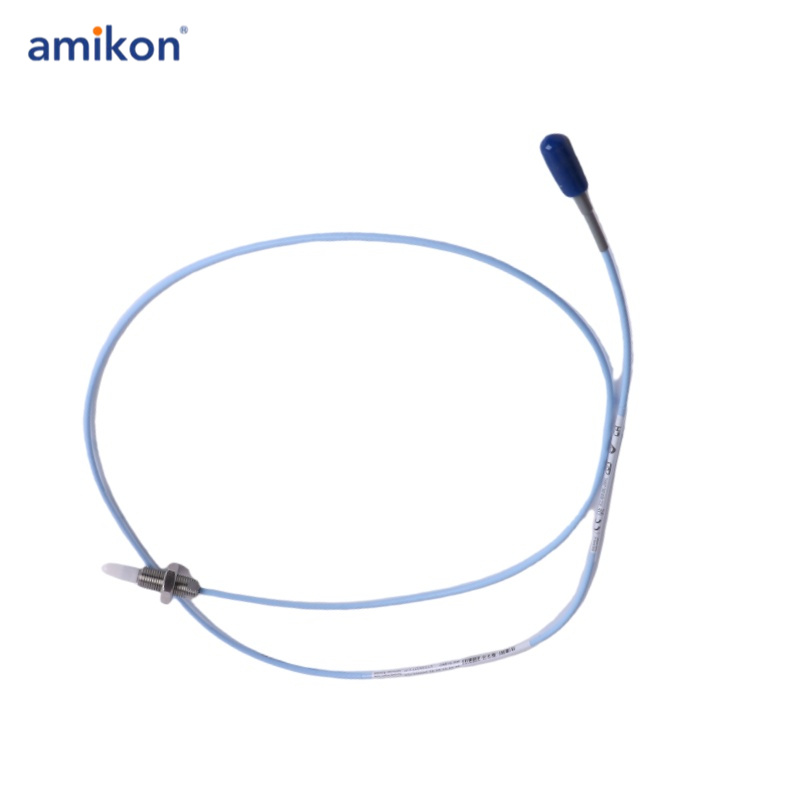

330905-00-23-05-01-00 Bently Nevada 3300 NSv Proximity Probes

A: Unthreaded Length Option	B: Overall Case Length Option	C: Total Length Option
Order in increments of 10 mm. Length configuration: Maximum unthreaded length:230 mm Minimum unthreaded length:0 mm Example:06 = 60 mm	Order in increments of 10 mm. Metric thread configurations: Maximum length: 250 mm Minimum length: 20 mm Example: 06 = 60 mm	05 0.5 meter (20 in) 10 1.0 meter (39 in) 50 5.0 meters (16.4 feet) 70 7.0 meters (23.0 feet)
