Product Specifications

Part Number	1SFA898111R7000 PSTX170-600-70
Rated Operational Voltage – Main Circuit	208 … 600 V AC
Rated Control Supply Voltage Us	100 … 250 V
Rated Control Circuit Voltage DC Operation Uc	24 V DC
Rated Frequency – Main Circuit	50 / 60 Hz
Rated Operational Power – In-Line Connection @ 400 V	90 kW
Rated Operational Current – In-Line Connection Ie	170 A
Rated Operational Power – Inside Delta Connection @ 400 V	160 kW
Rated Operational Current – Inside Delta Connection	300 A
Service Factor	100%
Integrated Electronic Overload	Yes
Adjustable Rated Motor Current Ie	30 … 100 %
Starting Capacity at Max. Rated Current Ie	4×Ie for 10 s
Ramp Time	1 … 120 s
Initial Starting Voltage	10 … 99 %
Step Down Voltage (Special Ramp)	100 … 10 %
Current Limit Function	1.5…7.5×Ie

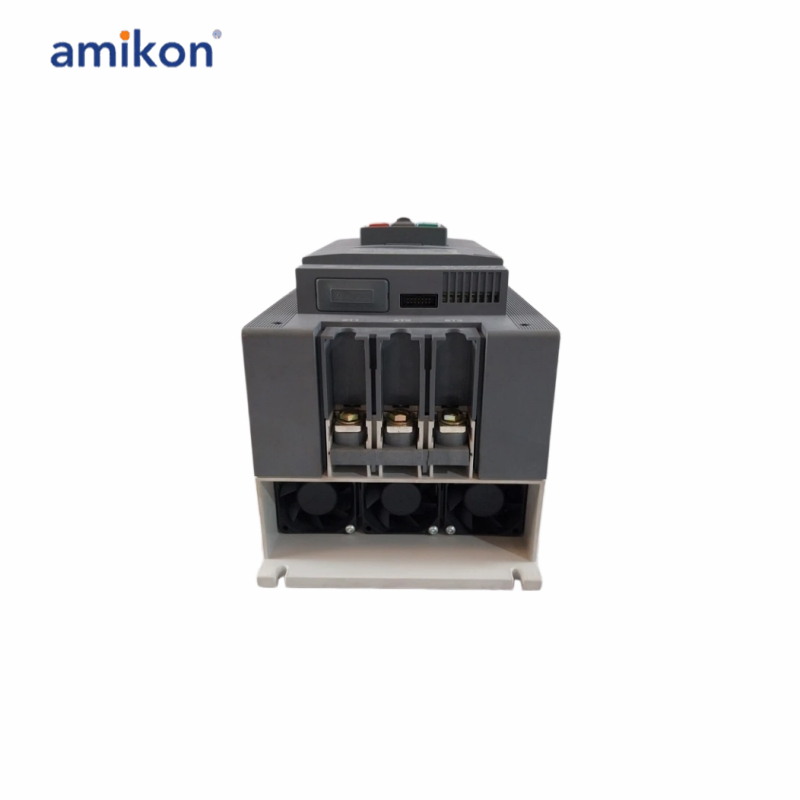

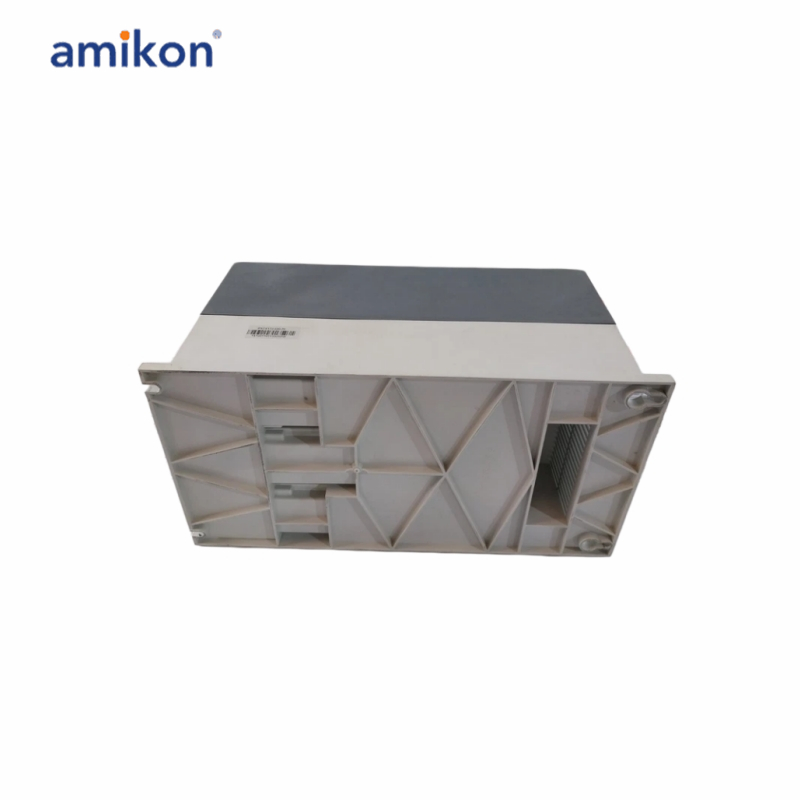

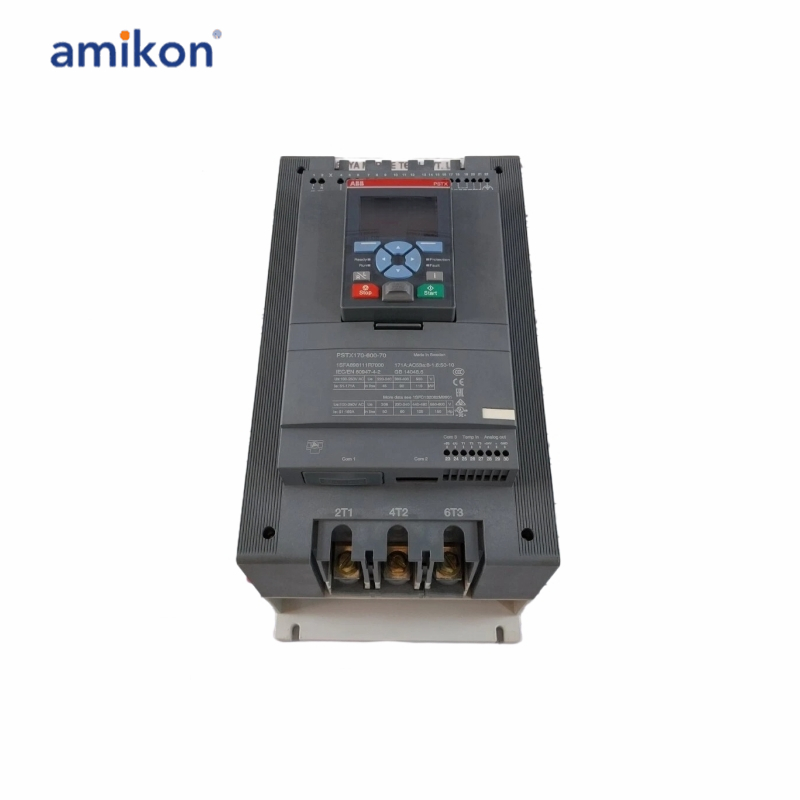

The softstarter 1SFA898111R7000 PSTX170-600-70 has a rated maximum operational current of 170 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSTX features a three-phase control soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning. PSTX also features features jog, braking, stand-still brake, diagnostics, sequence start and emergency/fire pump mode as standard.To interact with PSTX, it has a detachable full graphic display with IP66 and 4x outdoor rating. There are four ways to communicate with PSTX. It can be done by hardwire inputs Start/Stop/Reset of fault, and by three programmable digital inputs. Another popular option is the built-in Fieldbus communication Modbus RTU and incl optional ANYBUS modules with every major protocol such as for example Profinet, Profibus, Modbus TCP, Ethernet IP and others. Another way to communicate with PSTX is to use an external adaptor and a Fieldbus plug. PSTX is the complete alternative for any motor starting application. It’s suitable for medium to large-sized three-phase motors with nominal currents from 30...1250 A inline connection or 52...2160 A inside delta connection. Typical applications are, for example, pumps, fans, compressors, and conveyors.

Frequently asked questions：

Q1: What is the ABB 1SFA898111R7000 PSTX170-600-70 Softstarter?
A1: It is a soft starter designed to control the starting and stopping of electric motors, reducing mechanical stress and electrical inrush current.

Q2: What is the 1SFA898111R7000 PSTX170-600-70 rated operational current (in-line connection)?
A2: The 1SFA898111R7000 PSTX170-600-70 rated operational current is 170 A for in-line connection.

Q3: What is the 1SFA898111R7000 PSTX170-600-70 rated operational power at 400 V (inside delta connection)?
A3: The softstarter supports up to 160 kW at 400 V when connected inside delta.

Q4: What is the 1SFA898111R7000 PSTX170-600-70 rated operational current for inside delta connection?
A4: The rated operational current is 300 A in inside delta configuration.

Q5: What is the 1SFA898111R7000 PSTX170-600-70 control supply voltage range?
A5: The 1SFA898111R7000 PSTX170-600-70 control supply voltage ranges from 100 to 250 V, providing flexibility for different control systems.

Product Applications

Water treatment and pumping stations
HVAC and compressors
Material transportation and conveyor belts
Ships and Maritime Affairs
Heavy Industry, Mining, Oil & Gas
